Axle with Wheel Bearing and Seal Kit for zOTHER Arctic Cat Textron Outlander NICHE MK1009447

NICHE MK1009447 Axle Parts for zOTHER Arctic Cat Textron Outlander

Axle with Wheel Bearing and Seal Kit For Can-Am MK1009447

Roll over image to zoom in Click on image to zoom

Axle with Wheel Bearing and Seal Kit For Can-Am MK1009447

Name: Axle with Wheel Bearing and Seal Kit For Can-Am MK1009447
Brand: NICHE
SKU: 15KIT_MK1009447
Price: 318.95 USD
Availability: InStock

NICHESKU: 15KIT_MK1009447

Price:

$318.95 USD $479.96 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	MK1009447
UPC:	803467193502
Material:	Chrome Steel (GCr15)
Seal Material:	NBR (Nitrile Butadiene Rubber)
Seal Type:	TCY 40x58x7/12;TC 40x55x8
Bearing Material:	Chrome Steel (GCr15)

MK1009447 Axle with Wheel Bearing and Seal Kit Product Info:

NICHE Bearing 30x55x30; Diameters: Inner (ID) 30mm; Outer (OD) 55mm; Height 30mm
Front Axle Compressed Length: 19 9/16, Inboard Splines: 21T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 21T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 13/16, Thread Measurement: M18x1.5
Rear Axle Compressed Length: 18 1/8, Inboard Splines: 22T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 21T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 7/8, Thread Measurement: M18x1.5

Included in This Kit:

(QTY 4) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s):

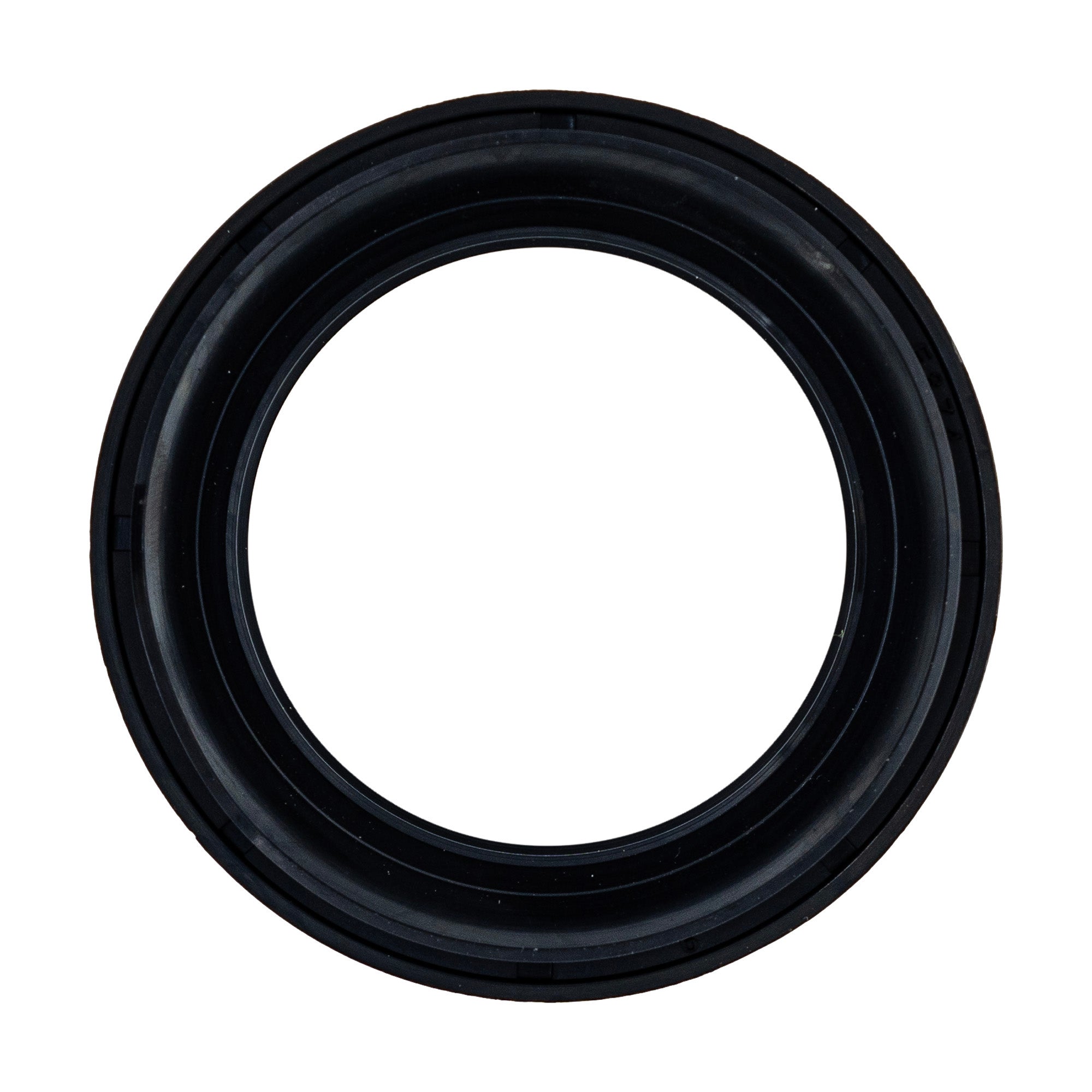

(QTY 4) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 09283-40018

(QTY 4) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

(QTY 2) NICHE 519-KCA2210X Heavy Duty Drive Shaft CV Axle

Substitute For OEM Part Numbers(s): 1502-531, 1402-002

(QTY 2) NICHE 519-KCA2347X Front CV Axle Drive Shaft

Substitute For OEM Part Numbers(s): 1502-530, 1502-528, 0402-987, 0402-365

Compatibile with the Following Vehicles:

Can-Am Outlander 450 DPS: 2019-2021
Can-Am Outlander 450 Hunting DPS: 2020-2021
Can-Am Outlander 450: 2019-2022
Can-Am Outlander 570 DPS: 2020
Can-Am Outlander 570 Hunting DPS: 2019-2021
Can-Am Outlander 570 X MR DPS: 2019
Can-Am Outlander 570 XT DPS: 2020
Can-Am Outlander 570: 2019-2021
Can-Am Outlander L 450 DPS: 2015
Can-Am Outlander L 450: 2015
Can-Am Outlander L 500 DPS: 2015
Can-Am Outlander L 500: 2015
Can-Am Outlander L Max 450 DPS: 2015
Can-Am Outlander L Max 450: 2015
Can-Am Outlander L Max 500 DPS: 2015
Can-Am Outlander L Max 500: 2015
Can-Am Outlander Max 450 DPS 6X6: 2019-2021
Can-Am Outlander Max 450 DPS: 2019-2021
Can-Am Outlander Max 450: 2019-2021
Can-Am Outlander Max 500 XT DPS: 2015
Can-Am Outlander Max 570 DPS: 2021
Can-Am Outlander Max 570 XT DPS: 2018-2021
Can-Am Outlander Max 570: 2018-2021
