Steering Rack Assembly & Tie Rods Kit For Kawasaki MK1006181

MK1006181 Steering Rack Assembly & Tie Rods Kit Product Info:

• Steering Rack Specs Material - Aluminum ZL104, Steel 20Cr & 45, Rubber CR; Total Length 681mm; Distance Between Sperical Centers 414mm; Travel 109mm; Pinion Location 94.5mm; Pinion Angle 10 Degree
• Tie Rod End Kit Specs Tie Rod Thread M14*1.5; Knuckle Side Thread M10*1.25; Tie Rod End Length 3 1/2 Inch

Included in This Kit:

(QTY 1) NICHE 519-CSR2225A Steering Rack Assembly

Substitute For OEM Part Numbers(s): 39191-0022, 39191-0017, 39191-0014, 39191-0001

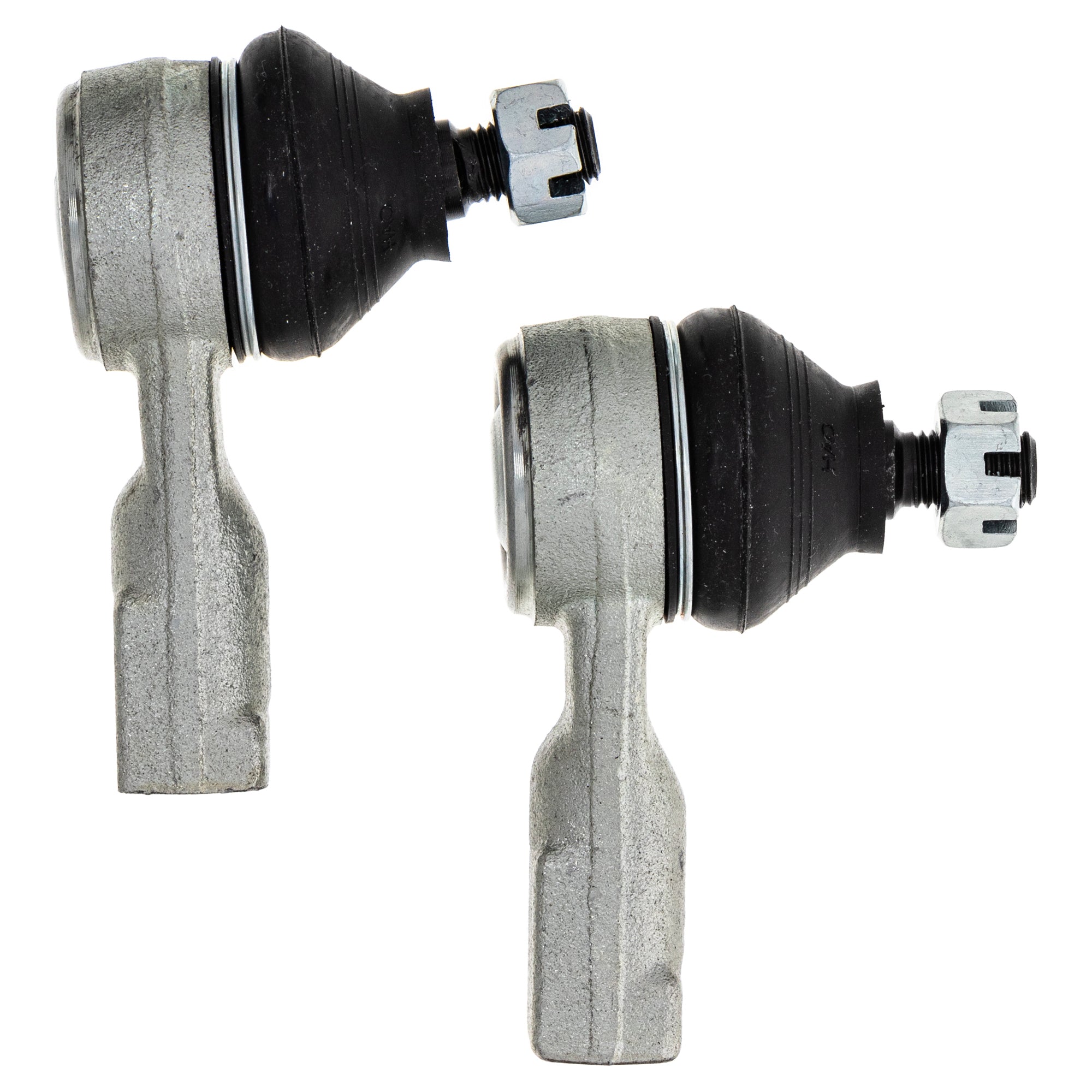

(QTY 1) NICHE 519-KTR2240E Tie Rod End Ball Joint Kit

Substitute For OEM Part Numbers(s): 39112-0008

Compatible with the Following Vehicles:

Kawasaki Mule 600: 2007-2016
Kawasaki Mule 610 SE: 2016
Kawasaki Mule 610 XC Camo: 2014-2015
Kawasaki Mule 610 XC SE: 2014-2016
Kawasaki Mule 610 XC: 2010-2016
Kawasaki Mule 610: 2007-2016
Kawasaki Mule SX SE: 2017-2019
Kawasaki Mule SX XC Camo: 2017-2019
Kawasaki Mule SX XC LE: 2019
Kawasaki Mule SX XC SE: 2017-2019
Kawasaki Mule SX XC: 2017-2019
Kawasaki Mule SX: 2017-2019
