Name: Drive Sprockets & Chain Kit For Honda MK1004028
Brand: NICHE
SKU: 15KIT_MK1004028
Price: 66.95 USD
Availability: InStock

Drive Sprockets & Chain Kit for zOTHER Honda XR80R 405W3-GN1-505 23801-178-000 NICHE MK1004028

NICHE MK1004028 Drive Sprockets & Chain Kit for zOTHER Honda XR80R

Drive Sprockets & Chain Kit For Honda MK1004028

Roll over image to zoom in Click on image to zoom

MPN:	MK1004028
UPC:	803467079448
Chain Type:	Standard
Chain Pitch:	420
Inner Diameter:	Sprocket 1 - 15mm; Sprocket 2 - 80mm
Material:	SAE 1023 Structural Carbon Steel
Distance Between Mounting Holes:	Sprocket 1 - 26/30mm; Sprocket 2 - 100mm
Front Sprocket Teeth:	14
Hub Inner Diameter:	Sprocket 1 - 15mm; Sprocket 2 - 80mm
Hub 2 Inner Diameter:	Sprocket 1 - 17mm
Mounting Hole Inner Diameter:	Sprocket 2 - 8.5mm
Rear Sprocket Teeth:	46
Sprocket Material:	SAE 1023 Structural Carbon Steel
Chain Size:	420

MK1004028 Drive Sprockets & Chain Kit Product Info:

Drive Chain Tensile Strength: 20.6 (kN) / 4631 (ft /lbs); Sprocket Material consists of SAE 1023 structural carbon steel; Oil - LT-001A High Temperature Chain Oil

Included in This Kit:

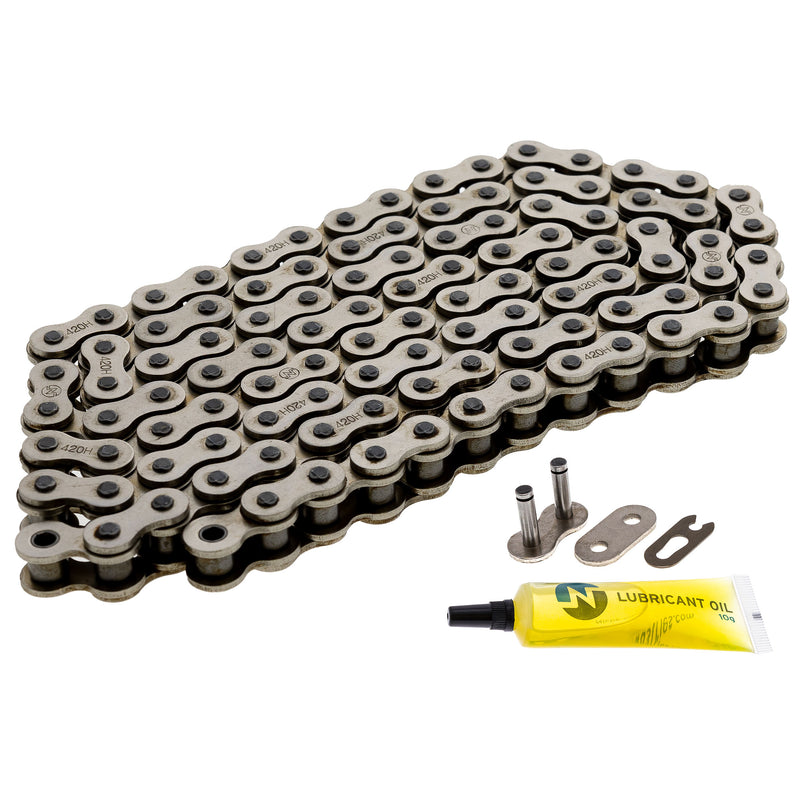

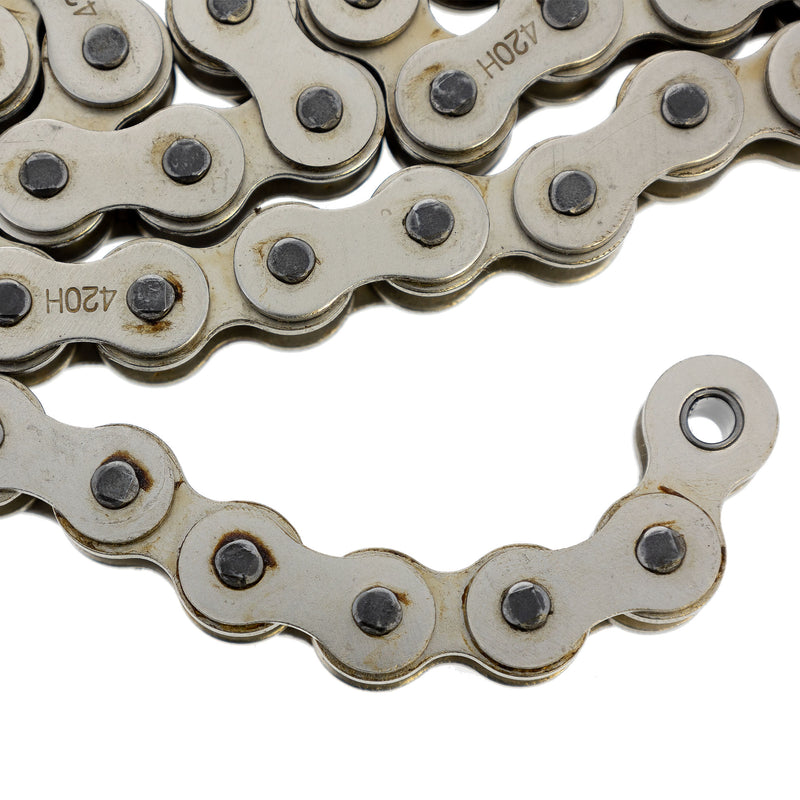

(QTY 1) NICHE 519-CDC2206H Drive Chain 106 Standard Non O-Ring w/ Master Link

Substitute For OEM Part Numbers(s): 94580-52106-00, 94504-20117-00, 405W3-GN1-505, 40530-K26-901, 40530-K0G-T21, 40530-K0G-901, 40530-GN1-005, 40530-GN1-003, 40530-GF5-812, 40530-GF5-811, 40530-GF5-005, 40530-GF5-003, 40530-166-612, 40530-166-005, 40530-166-003

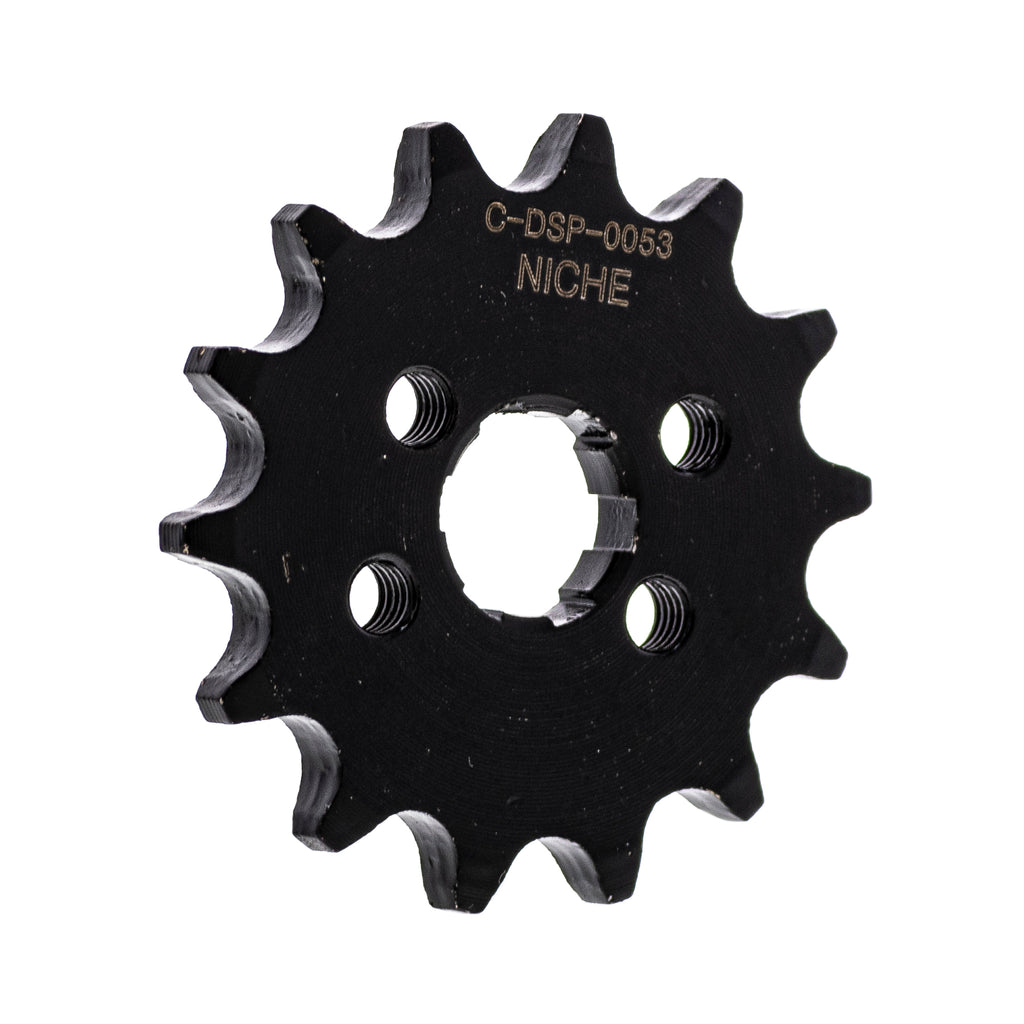

(QTY 1) NICHE 519-CDS2275P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 23801-178-000, 23800-141-010, 23800-116-010

(QTY 1) NICHE 519-CDS2398P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 41201-GN1-000

Compatibile with the Following Vehicles:

Honda XR80R: 1985-2003
