Drive Sprocket Set Front & Rear For Yamaha MK1003498

MK1003498 Drive Sprocket Set Front & Rear Product Info:

• Front Drive Sprocket Pitch 428, Teeth 13; Rear Drive Sprocket Pitch 428, Teeth 45; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 15mm; Hub 2 (ID) 17mm; Distance Between Mounting Holes (ID) 26/30mm; Hub Inner Diameter 100mm; Mounting Hole (ID) 8.5mm; Distance Between Mounting Holes (ID) 116mm

Included in This Kit:

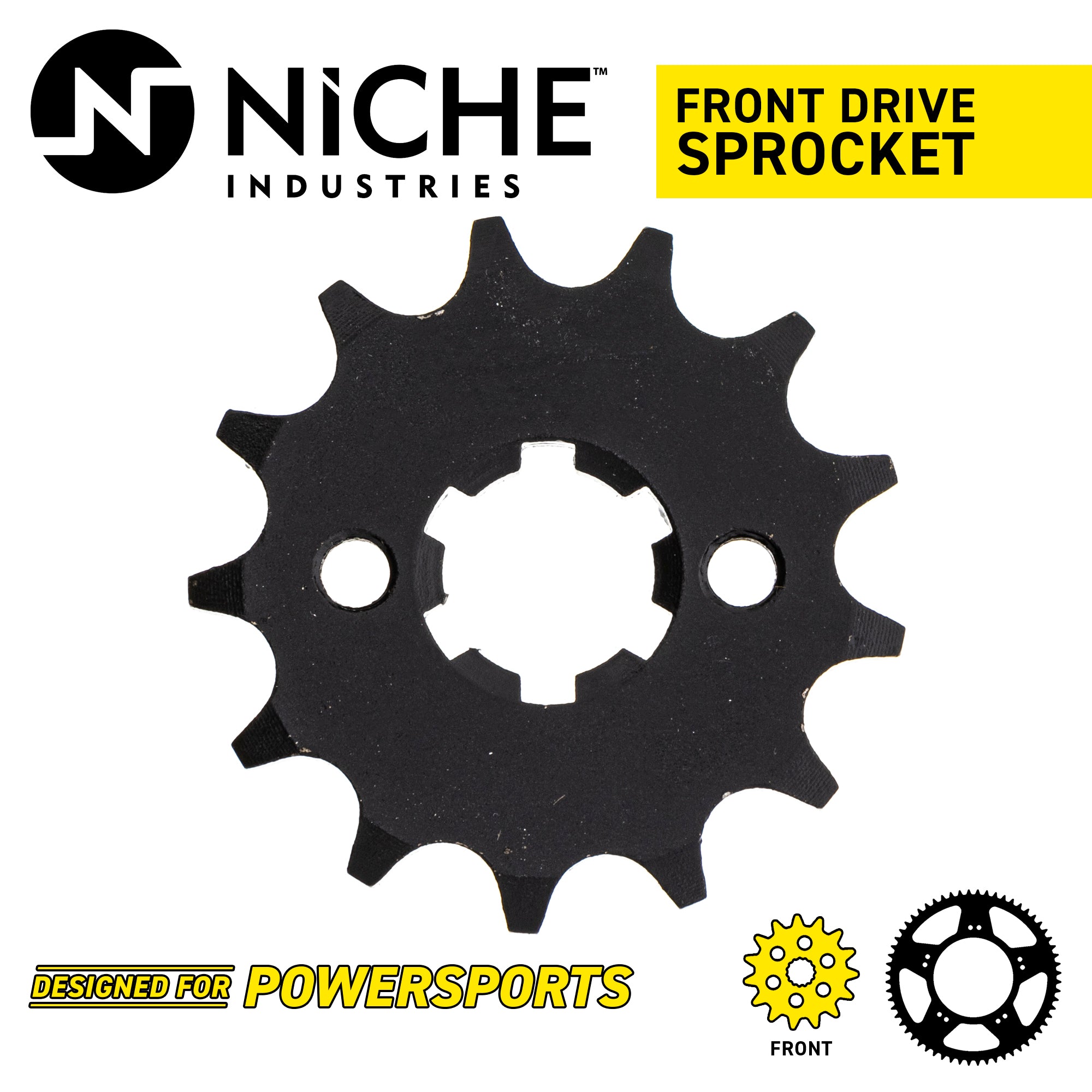

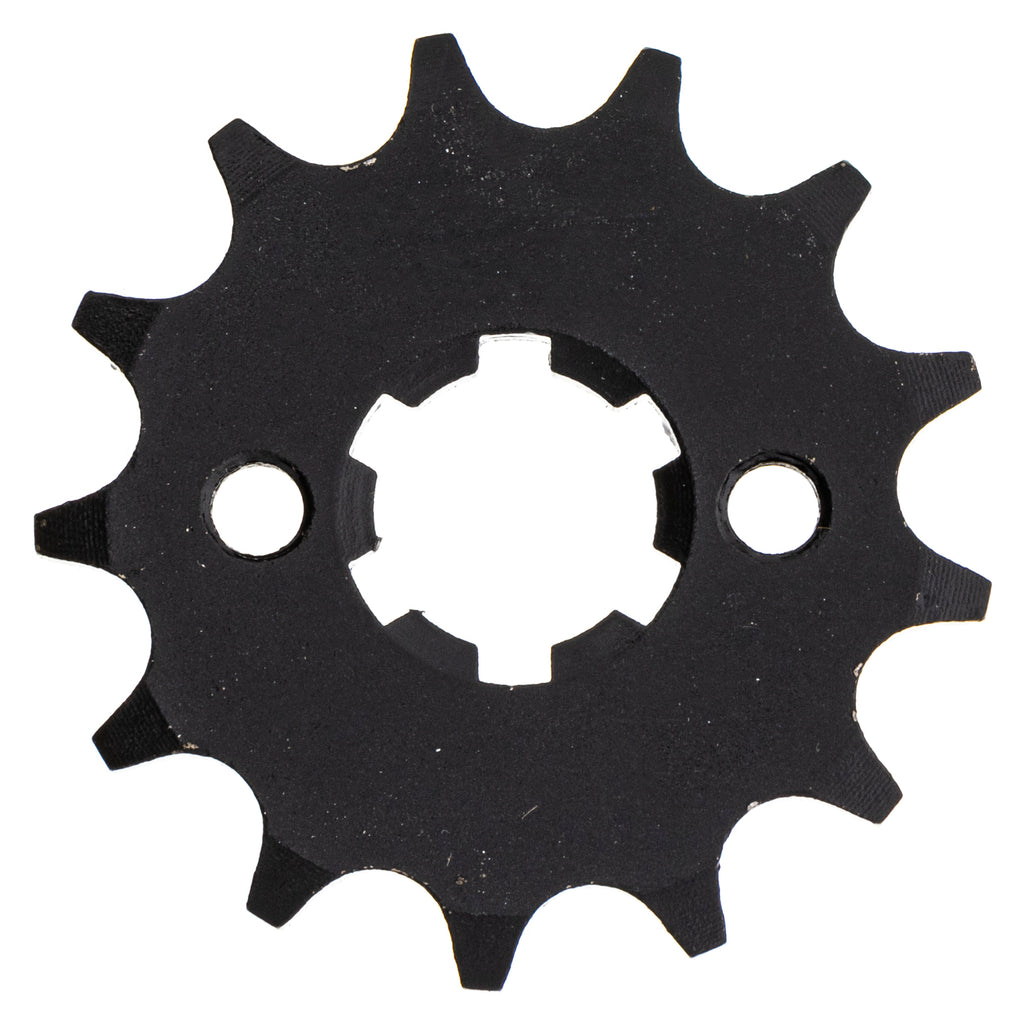

(QTY 1) NICHE 519-CDS2274P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 93822-13213-00, 93822-13024-00

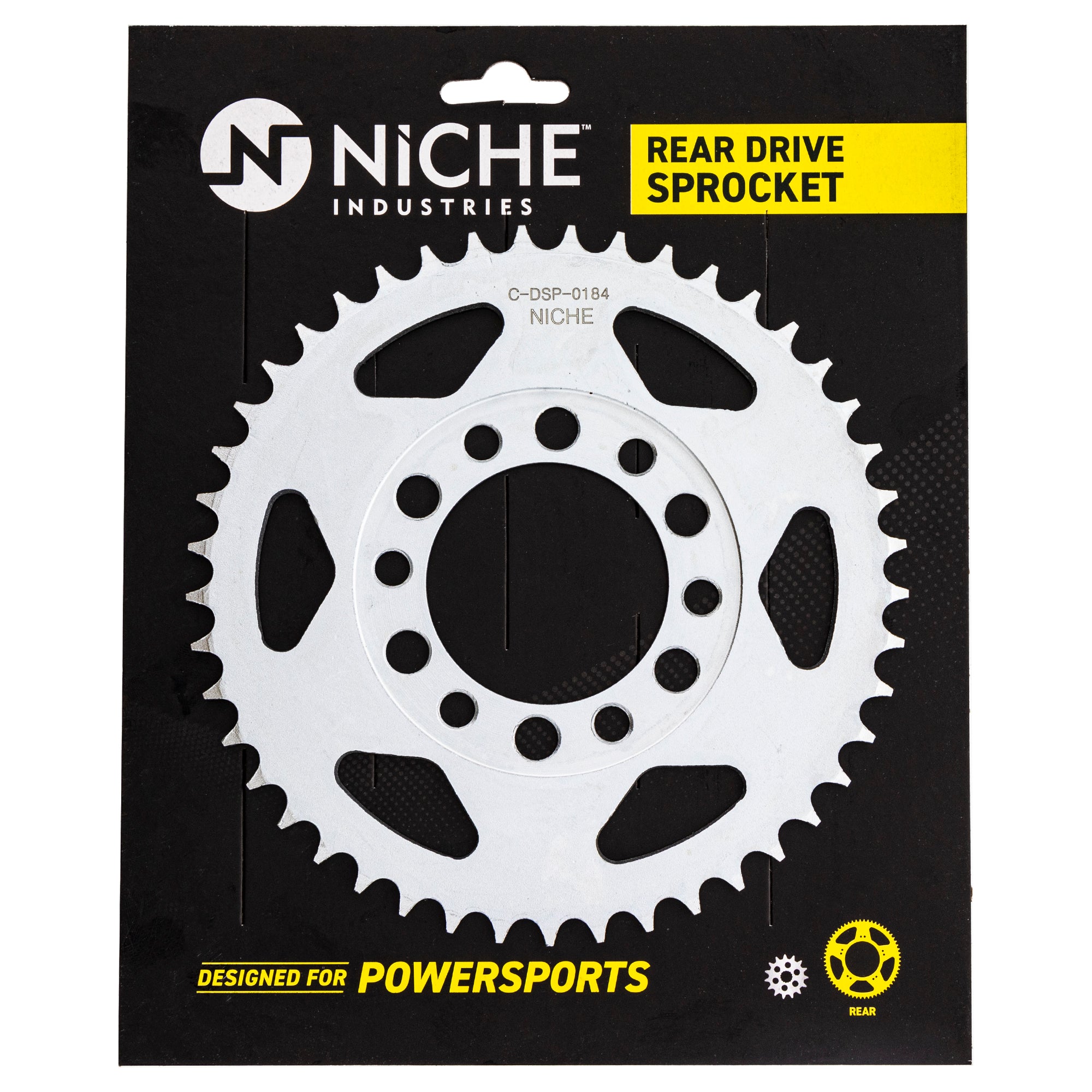

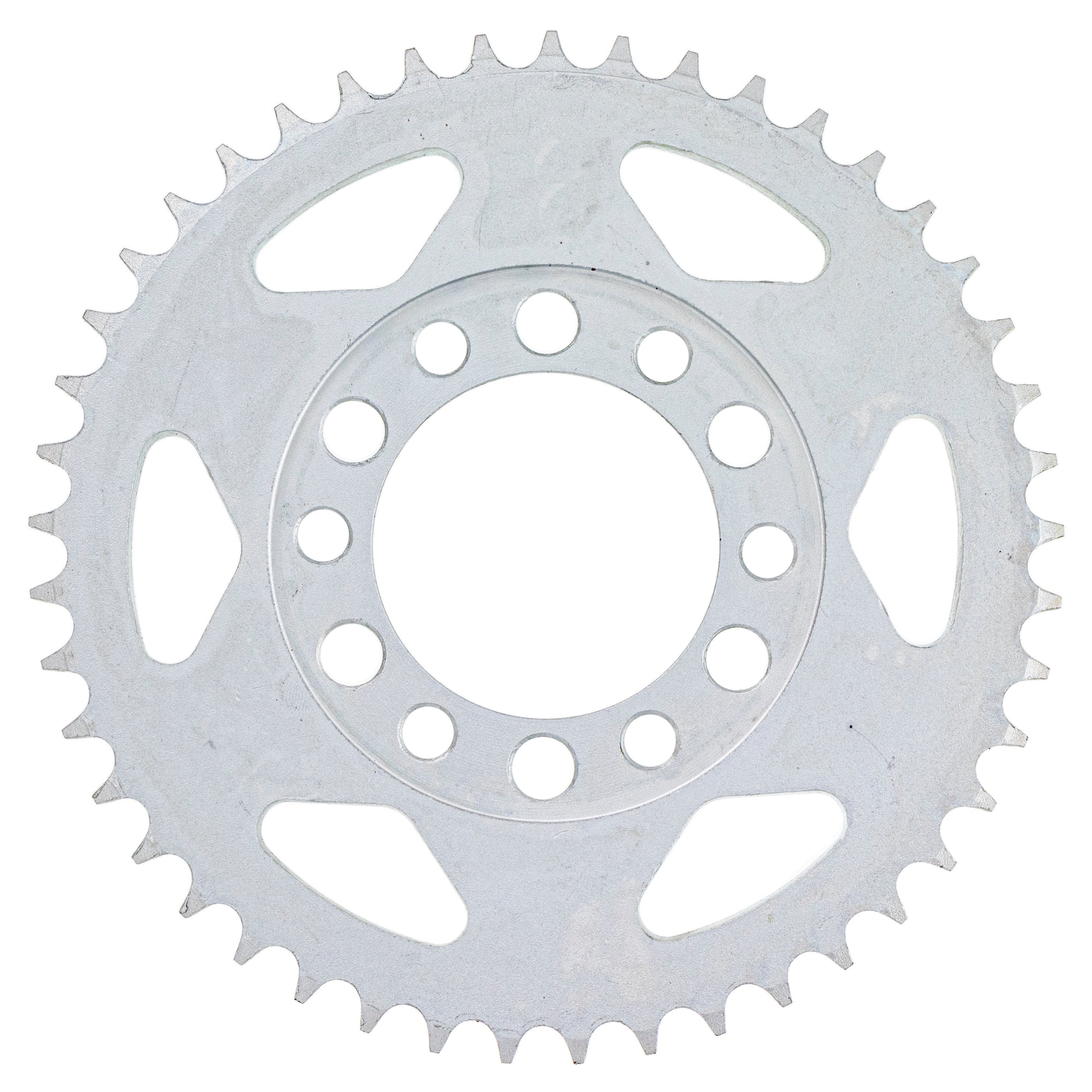

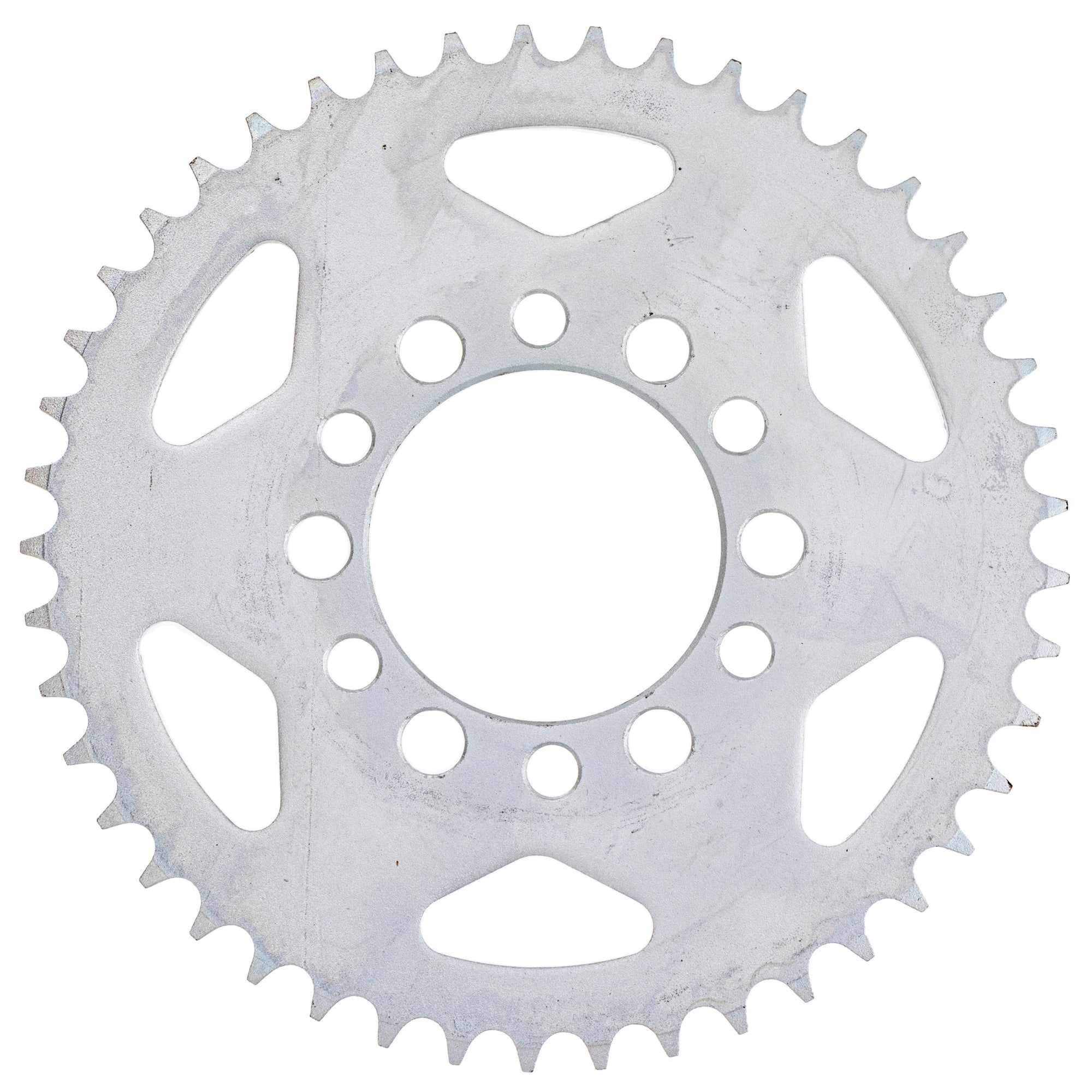

(QTY 1) NICHE 519-CDS2306P Rear Drive Sporcket

Substitute For OEM Part Numbers(s): 248-25445-11-00

Compatible with the Following Vehicles:

Yamaha AT1 125: 1970-1971
Yamaha AT1M: 1970-1971
Yamaha AT1MX: 1971
Yamaha AT2 125 M: 1972
Yamaha AT2 125: 1972
Yamaha AT3 125: 1973
Yamaha ATMX: 1973
Yamaha CT1 175: 1970-1971
Yamaha CT3 175: 1973
