Drive Sprocket Set Front & Rear for Suzuki DR350SE DR350 64511-08D50 27511-47D10 NICHE MK1003491

NICHE MK1003491 Drive Sprocket for Suzuki DR350SE DR350

Drive Sprocket Set Front & Rear For Suzuki MK1003491

Roll over image to zoom in Click on image to zoom

Drive Sprocket Set Front & Rear For Suzuki MK1003491

Name: Drive Sprocket Set Front & Rear For Suzuki MK1003491
Brand: NICHE
SKU: 15KIT_MK1003491
Price: 45.95 USD
Availability: InStock

NICHESKU: 15KIT_MK1003491

Price:

$45.95 USD $75.98 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	MK1003491
UPC:	803467090306
Chain Pitch:	520
Inner Diameter:	Sprocket 1 - 19.5mm; Sprocket 2 - 126mm
Material:	AISI 1023 Steel
Distance Between Mounting Holes:	Sprocket 2 - 146mm
Front Sprocket Teeth:	14
Hub Inner Diameter:	Sprocket 1 - 19.5mm; Sprocket 2 - 126mm
Hub 2 Inner Diameter:	Sprocket 1 - 22.5mm
Mounting Hole Inner Diameter:	Sprocket 2 - 8.5mm
Rear Sprocket Teeth:	44
Sprocket Material:	SAE 1023 Structural Carbon Steel
Chain Size:	520

MK1003491 Drive Sprocket Set Front & Rear Product Info:

Front Drive Sprocket Pitch: 520, Teeth: 14
Rear Drive Sprocket Pitch: 520, Teeth: 44; Sprocket Material consists of SAE 1023 structural carbon steel
Hub Inner Diameter 120mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 140mm; Hub Inner Diameter 112mm; Mounting Hole (ID) 12.5mm; Distance Between Mounting Holes (ID) 138mm

Included in This Kit:

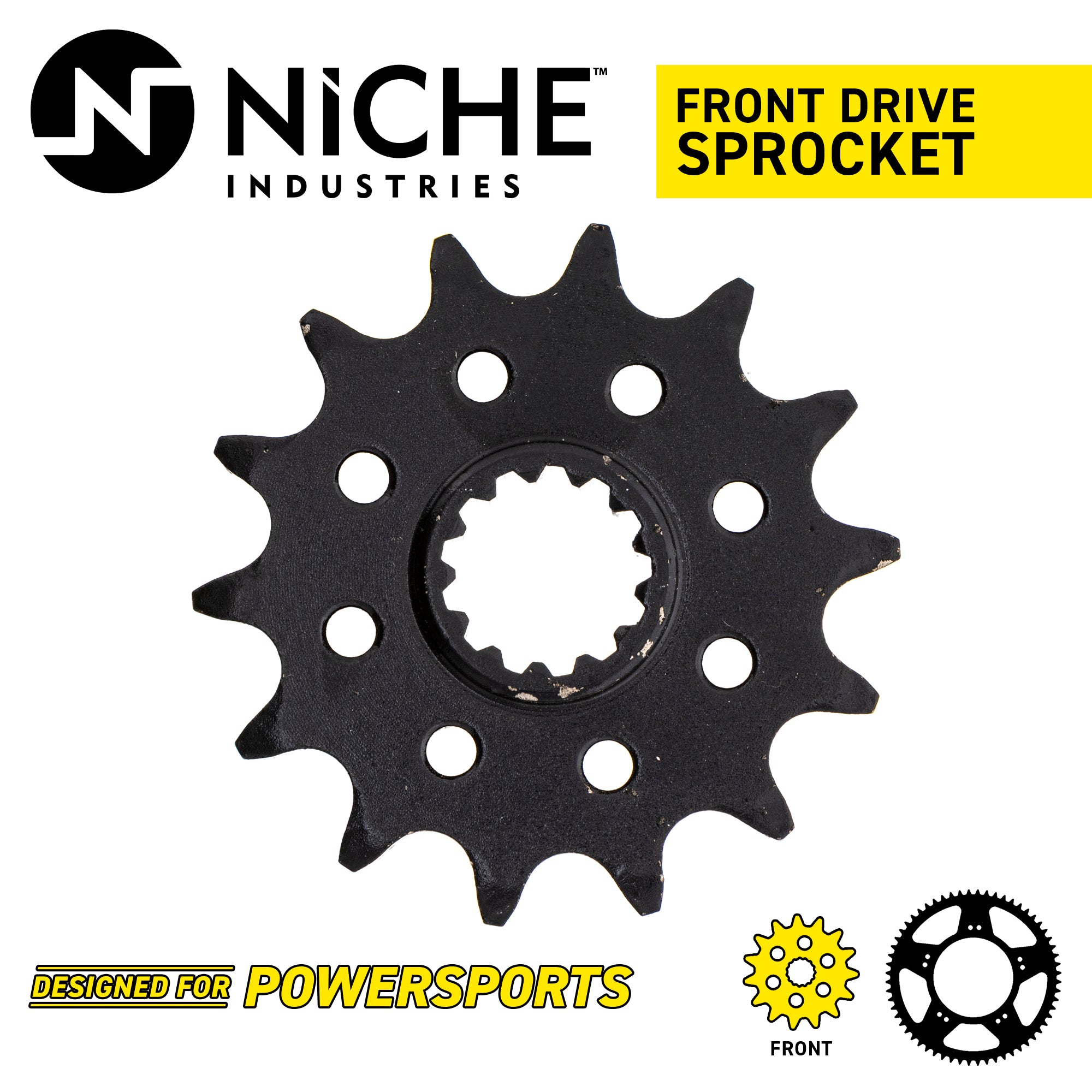

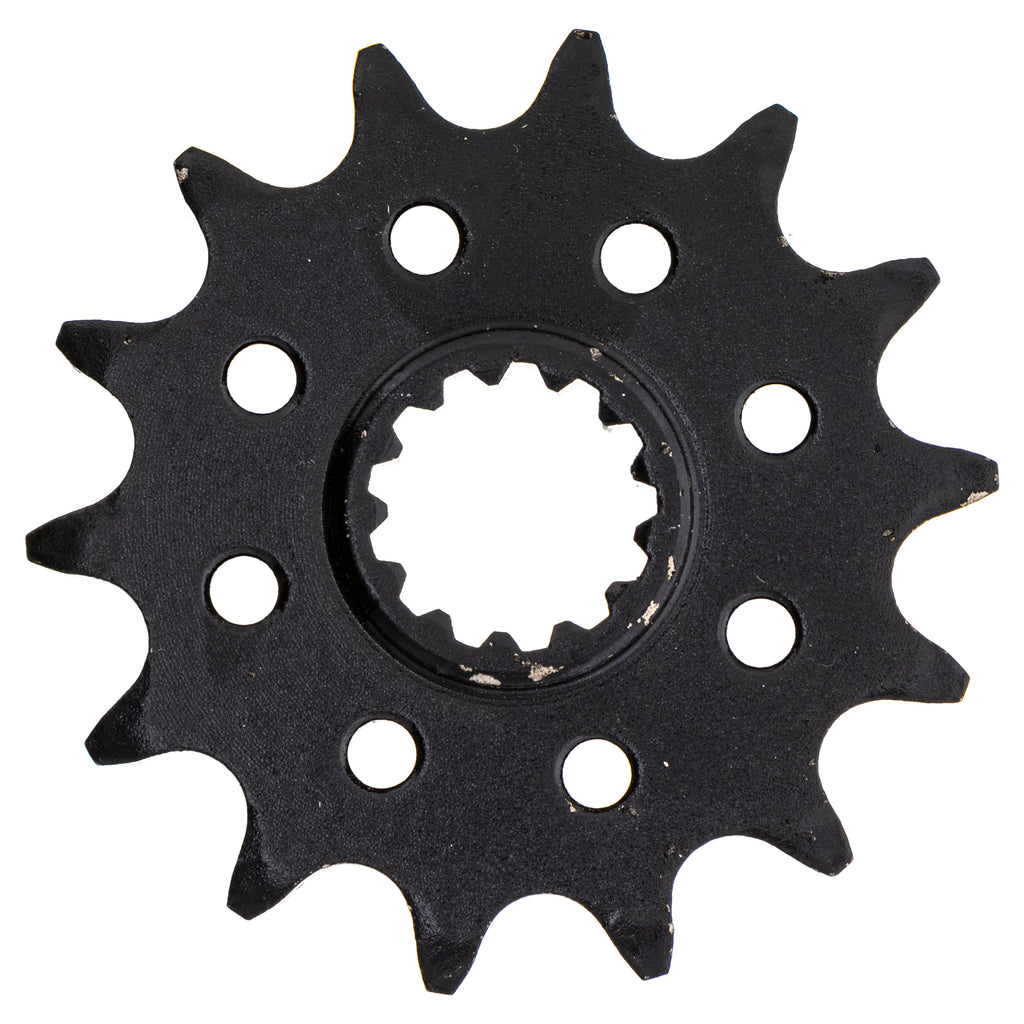

(QTY 1) NICHE 519-CDS2253P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 27511-47D10, 27511-47D00, 27511-14300

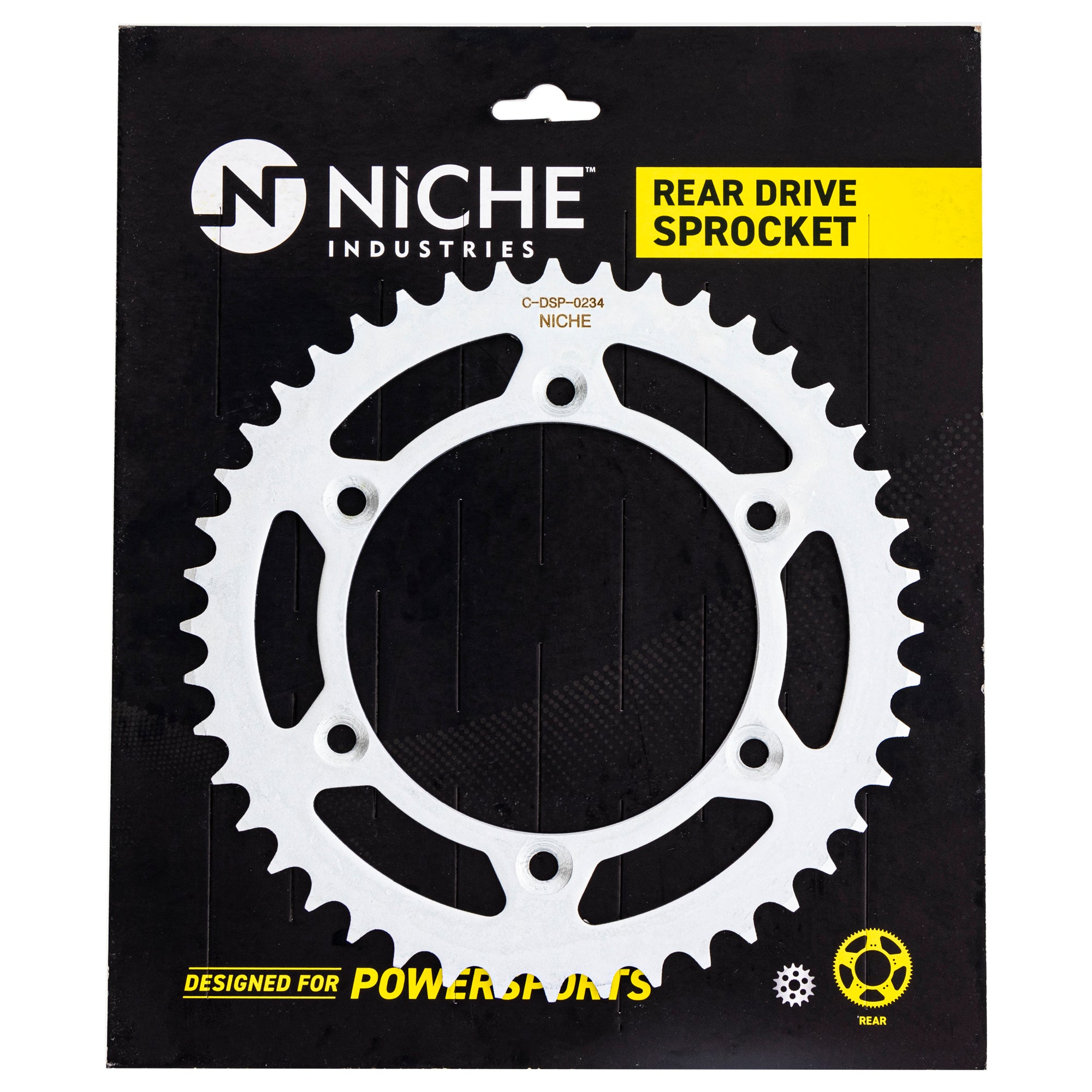

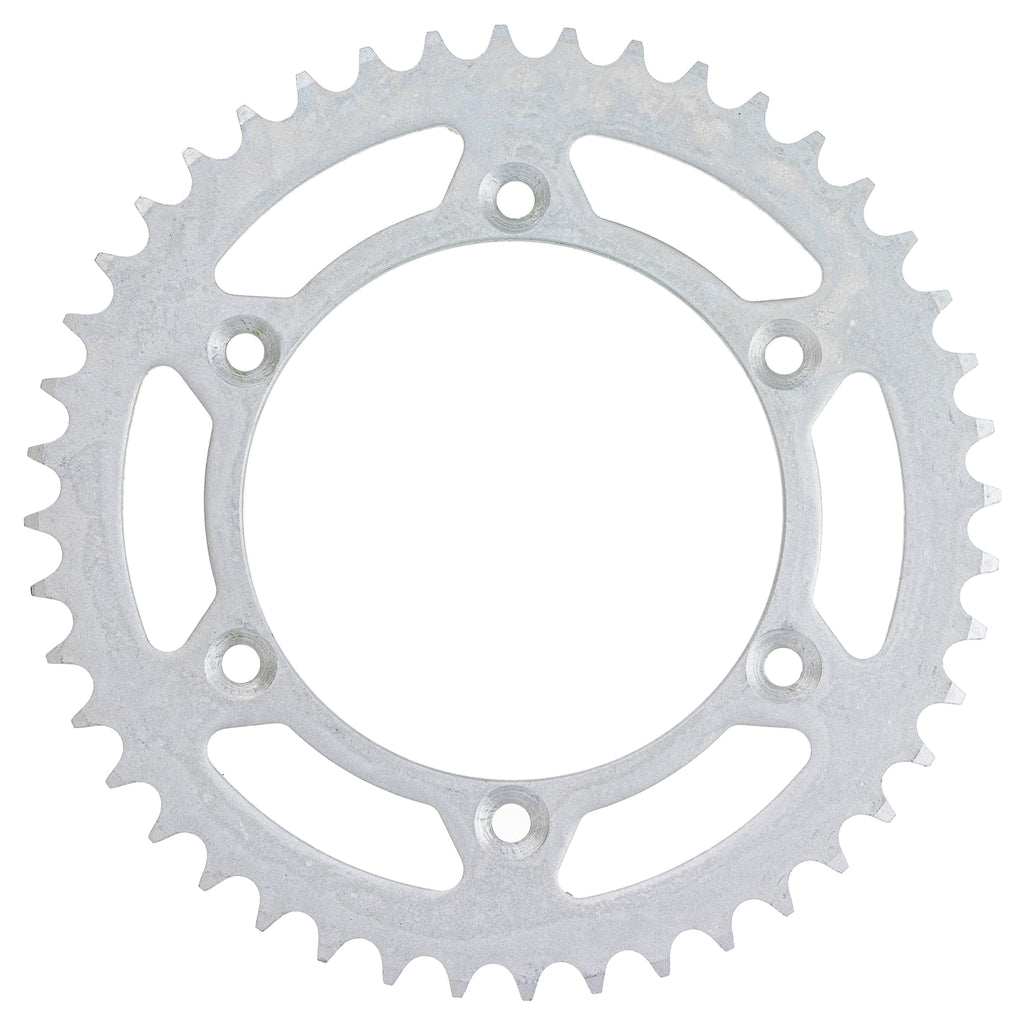

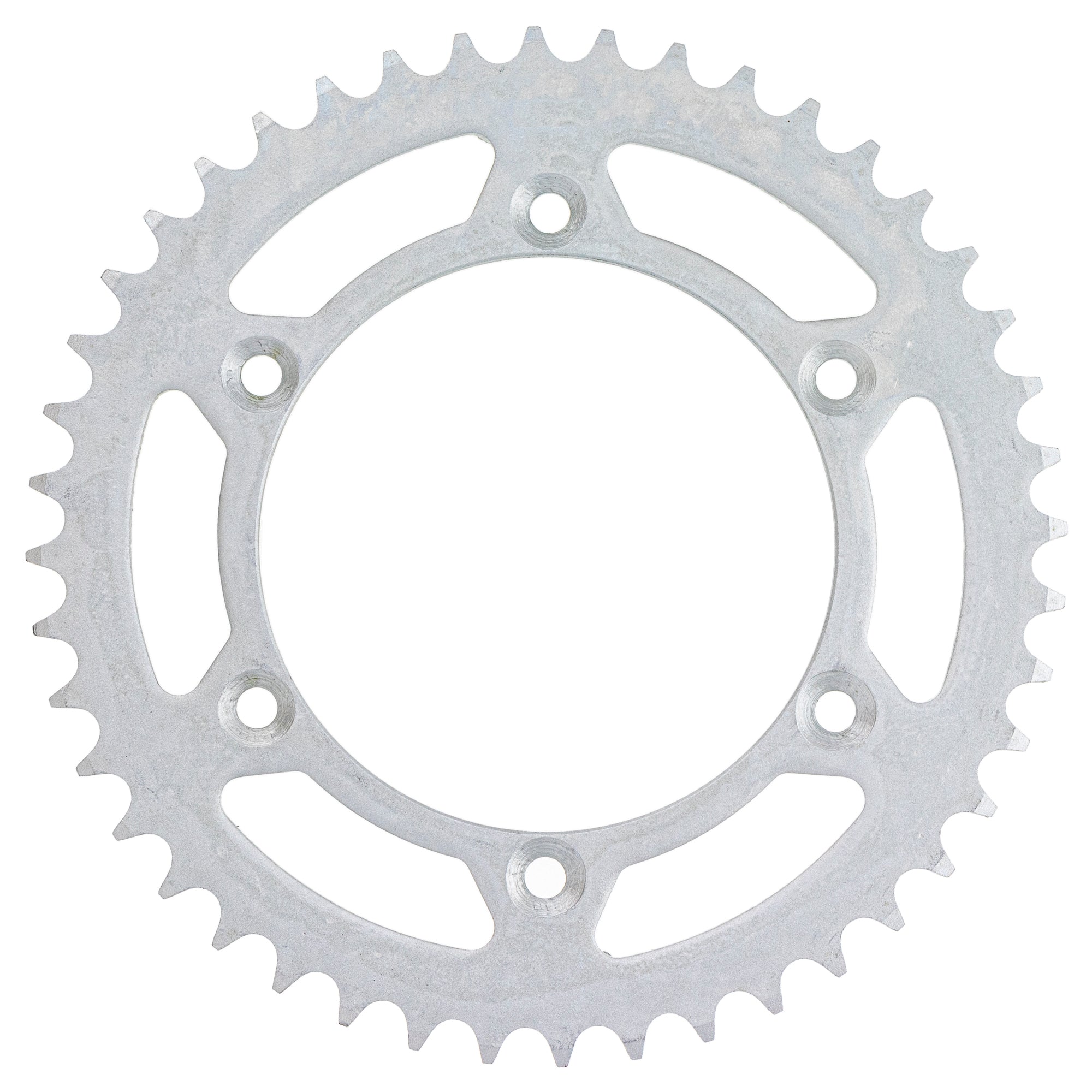

(QTY 1) NICHE 519-CDS2465P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 64511-14E00, 64511-14D80, 64511-08D50

Compatibile with the Following Vehicles:

Suzuki DR350: 1990-1996
Suzuki DR350SE: 1990-1996

Drive Sprocket Set Front & Rear For Suzuki MK1003491
