Drive Sprocket Set Front & Rear For Honda MK1003171

MK1003171 Drive Sprocket Set Front & Rear Product Info:

• Pitch 520
• Kit includes 1 Front 13 tooth drive sprocket, and 1 Rear 49 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Mounting Hole (ID) 7mm; Distance Between Mounting Holes (ID) 40mm; Hub Inner Diameter 80mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 104mm

Included in This Kit:

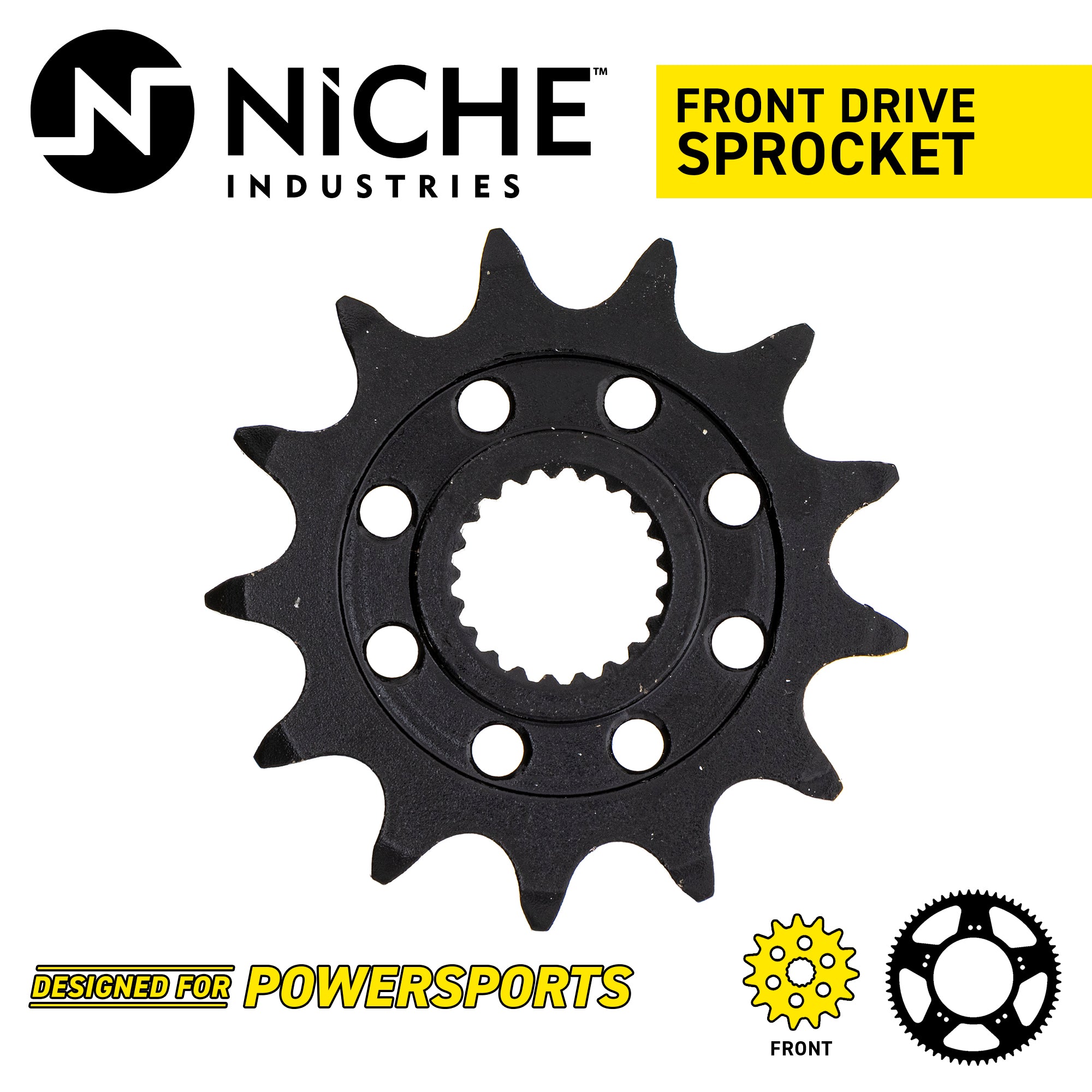

(QTY 1) NICHE 519-CDS2329P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 23801-KSR-A00

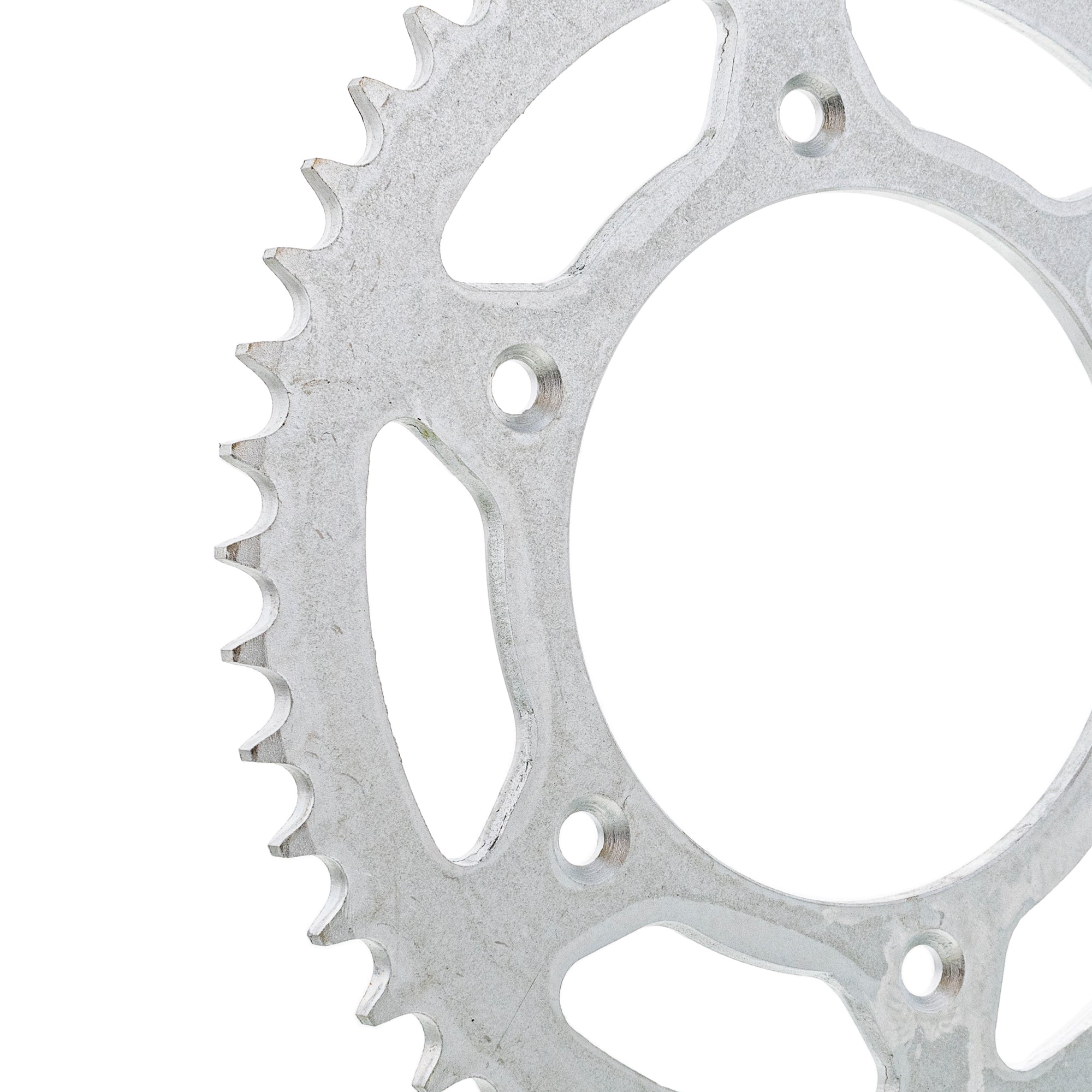

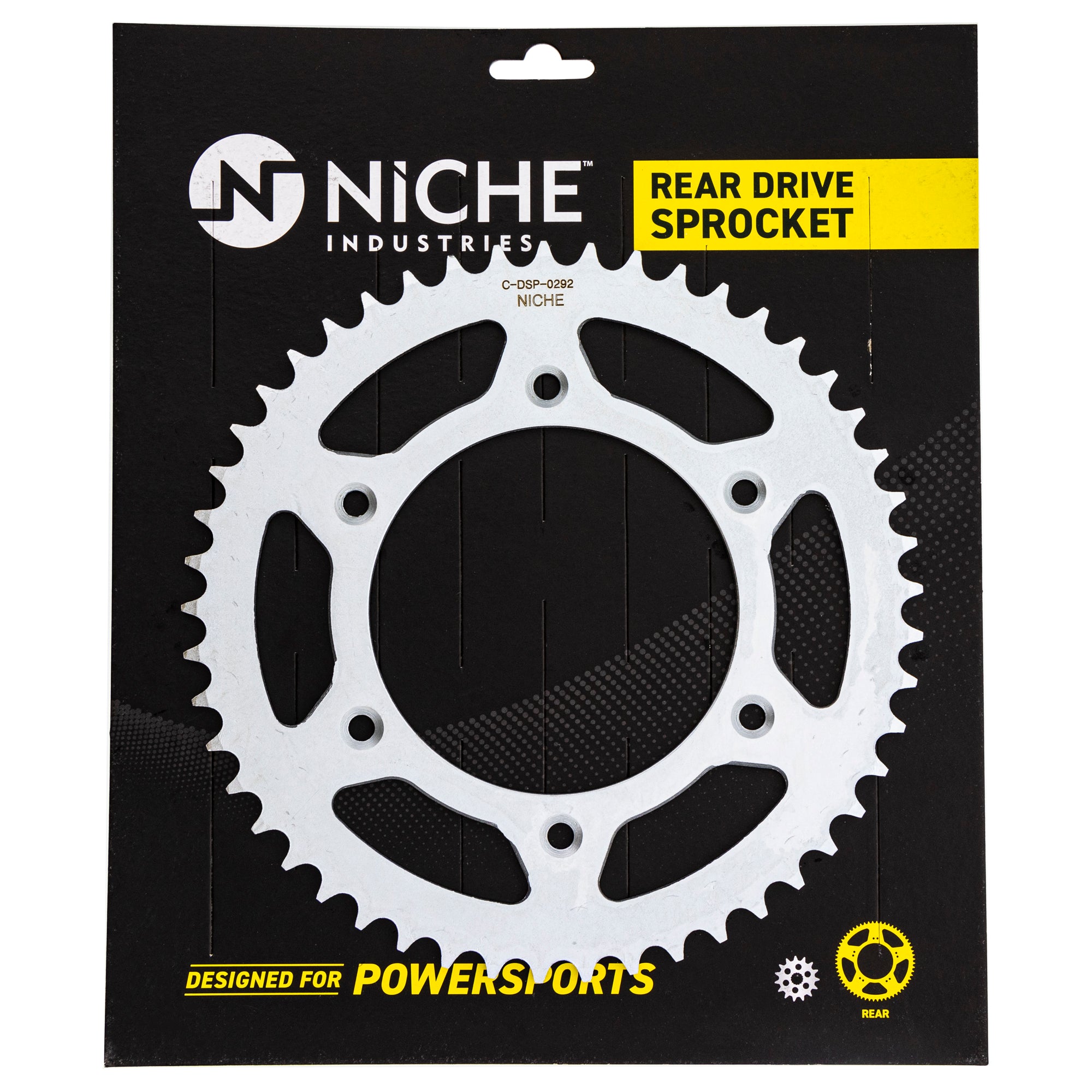

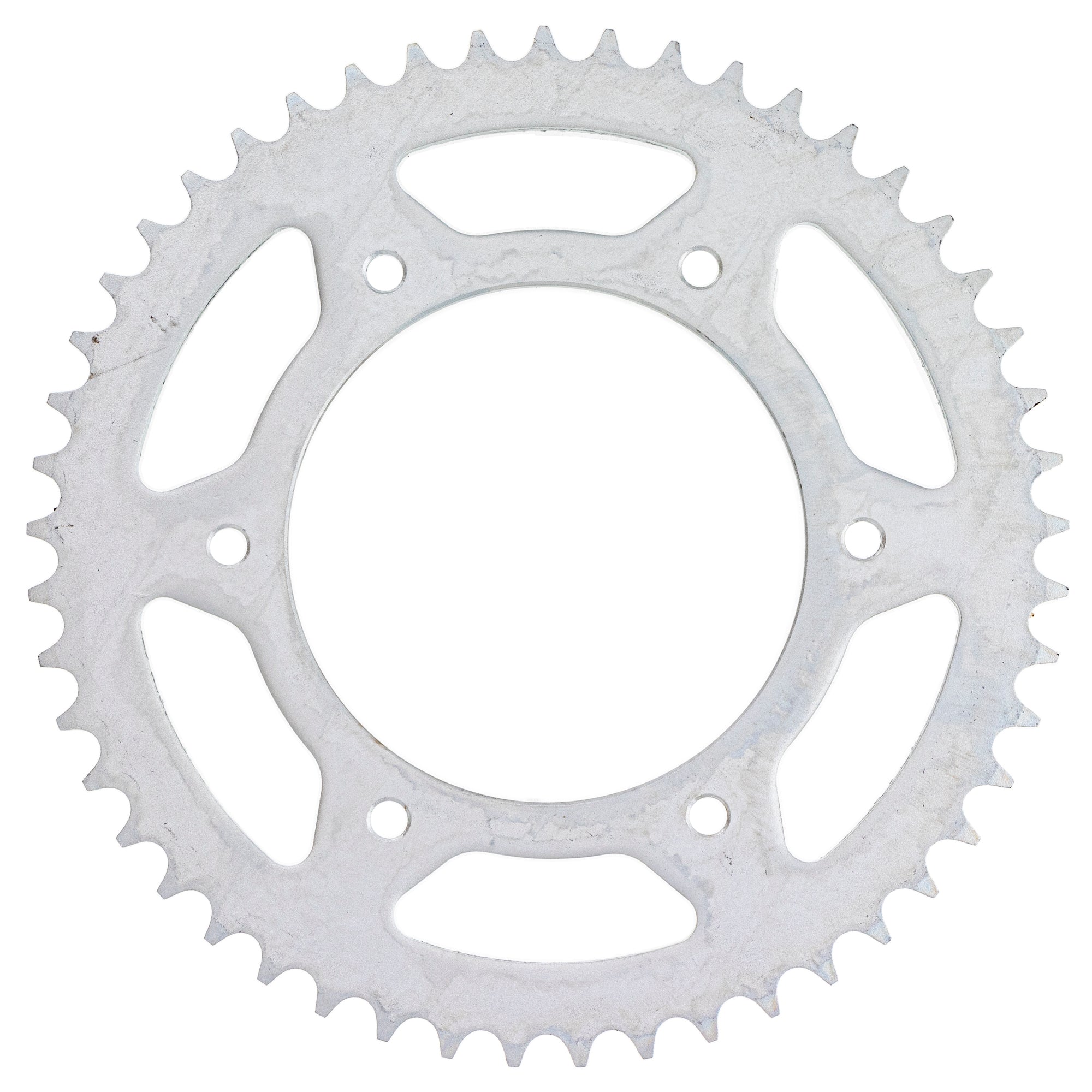

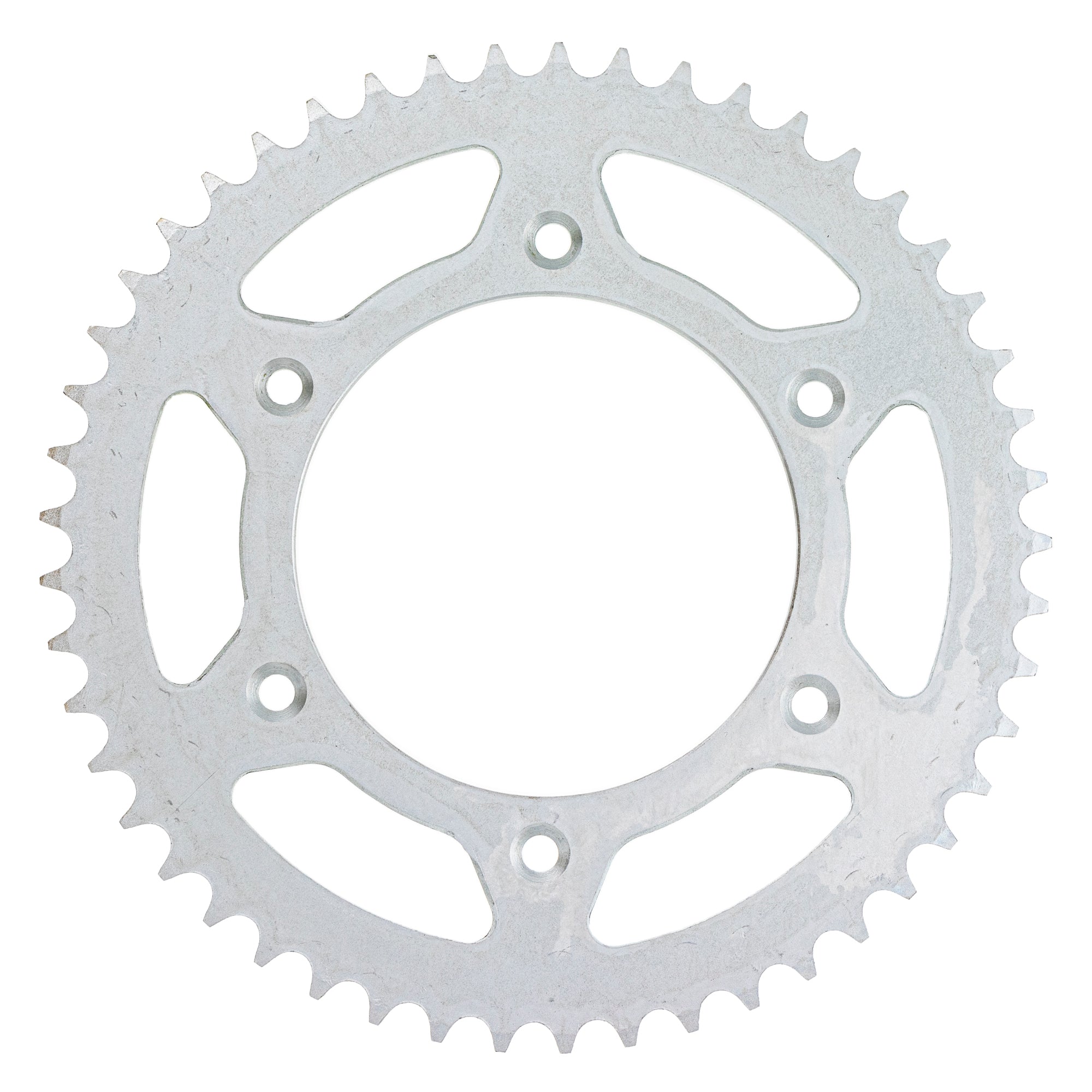

(QTY 1) NICHE 519-CDS2414P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 41204-ML3-810, 41204-ML3-505, 41202-KS6-700, 41202-KS6-306, 41202-KS6-305, 41202-KA3-730, 41202-KA3-710, 41201-ML3-791, 41201-MKE-A70, 41201-MKE-A00, 41201-KZ4-B00, 41201-KZ3-J40

Compatible with the Following Vehicles:

Honda CRF250R: 2010-2017
