Drive Sprocket Set Front & Rear for zOTHER JT Sprocket Honda CRF450RX CRF450RWE CRF450R NICHE MK1003073
Roll over image to zoom in Click on image to zoom
Drive Sprocket Set Front & Rear for zOTHER JT Sprocket Honda CRF450RX CRF450RWE CRF450R NICHE MK1003073NICHE MK1003073 Drive Sprocket for zOTHER JT Sprocket HondaNICHE Drive SprocketNICHE MK1003073 Drive SprocketDrive Sprocket Set Front & Rear For Honda MK1003073Drive Sprocket Set Front & Rear For Honda MK1003073Drive Sprocket Set Front & Rear For Honda MK1003073Drive Sprocket Set Front & Rear For Honda MK1003073Drive Sprocket Set Front & Rear For Honda MK1003073

Drive Sprocket Set Front & Rear For Honda MK1003073

Trustpilot
NICHESKU: 15KIT_MK1003073
Price:
$43.95 USD $52.99 USD
Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply
 More payment options

Product Specifications

MPN: MK1003073
UPC: 803467070896
Chain Pitch: 520
Inner Diameter: Sprocket 1 - 21.2mm; Sprocket 2 - 125mm
Material: AISI 1023 Steel
Distance Between Mounting Holes: Sprocket 2 - 153mm
Front Sprocket Teeth: 13
Hub Inner Diameter: Sprocket 1 - 21.2mm; Sprocket 2 - 125mm
Hub 2 Inner Diameter: Sprocket 1 - 23.8mm
Mounting Hole Inner Diameter: Sprocket 2 - 8.5mm
Rear Sprocket Teeth: 48
Sprocket Material: SAE 1023 Structural Carbon Steel
Chain Size: 520

Search Equipment Compatibility

Description

MK1003073 Drive Sprocket Set Front & Rear Product Info:

  • Pitch: 520
  • Kit includes 1 Front 13 tooth drive sprocket, and 1 Rear 48 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
  • Hub Inner Diameter 21.7mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm; Hub Inner Diameter 80mm; Mounting Hole (ID) 12.5mm; Distance Between Mounting Holes (ID) 110mm
Included in This Kit:

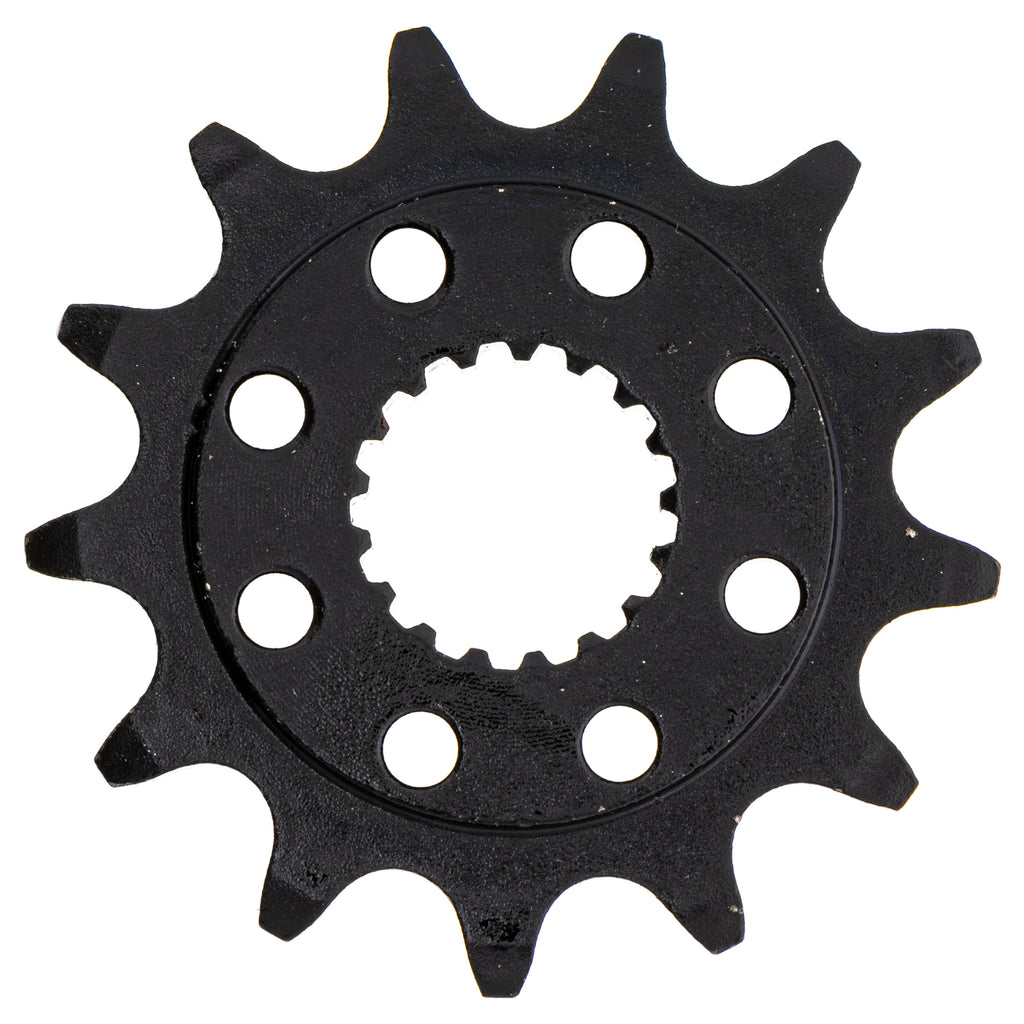

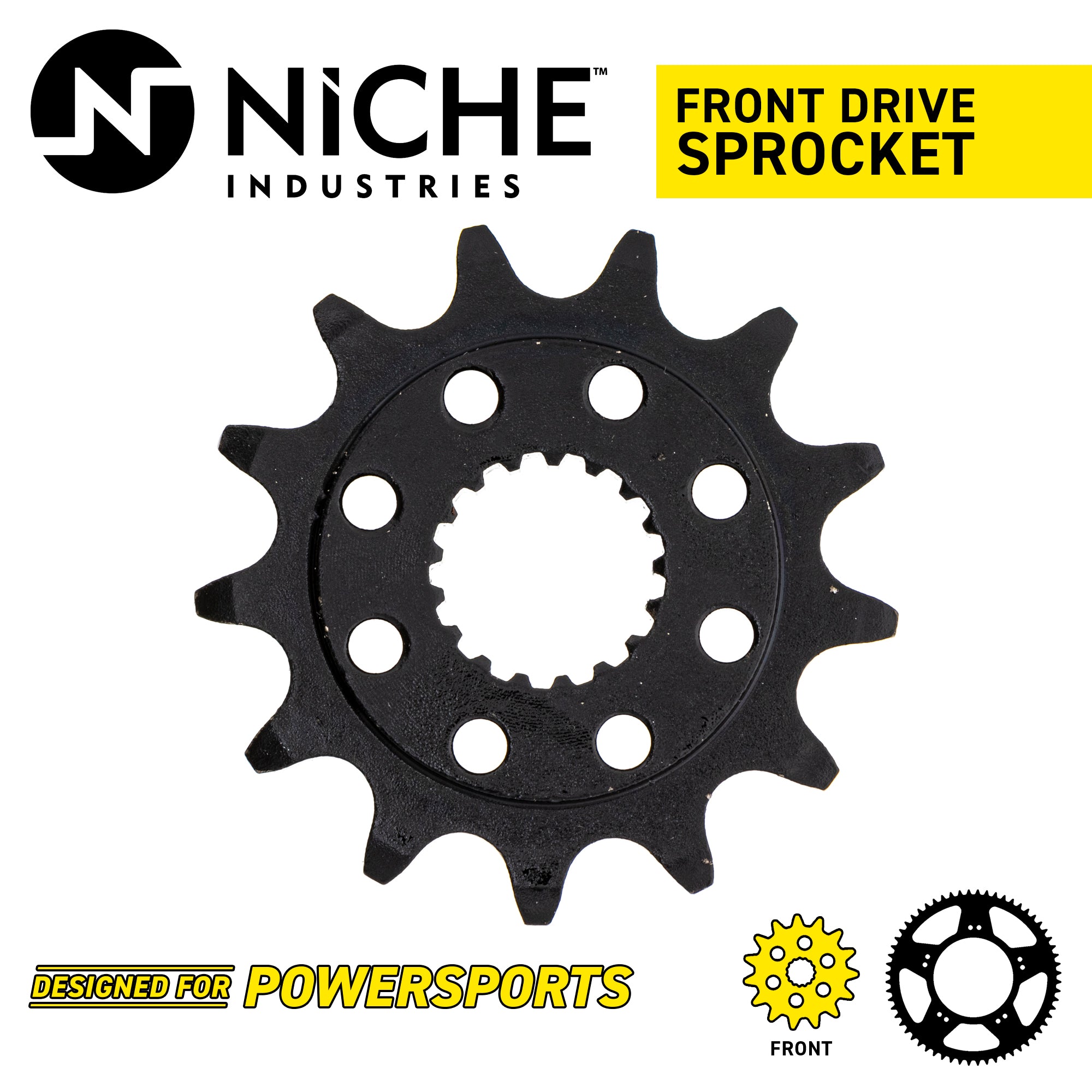

(QTY 1) NICHE 519-CDS2251P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 23802-MEN-730, 23802-KZ3-860, 23801-MKE-A50, 23801-MEY-670

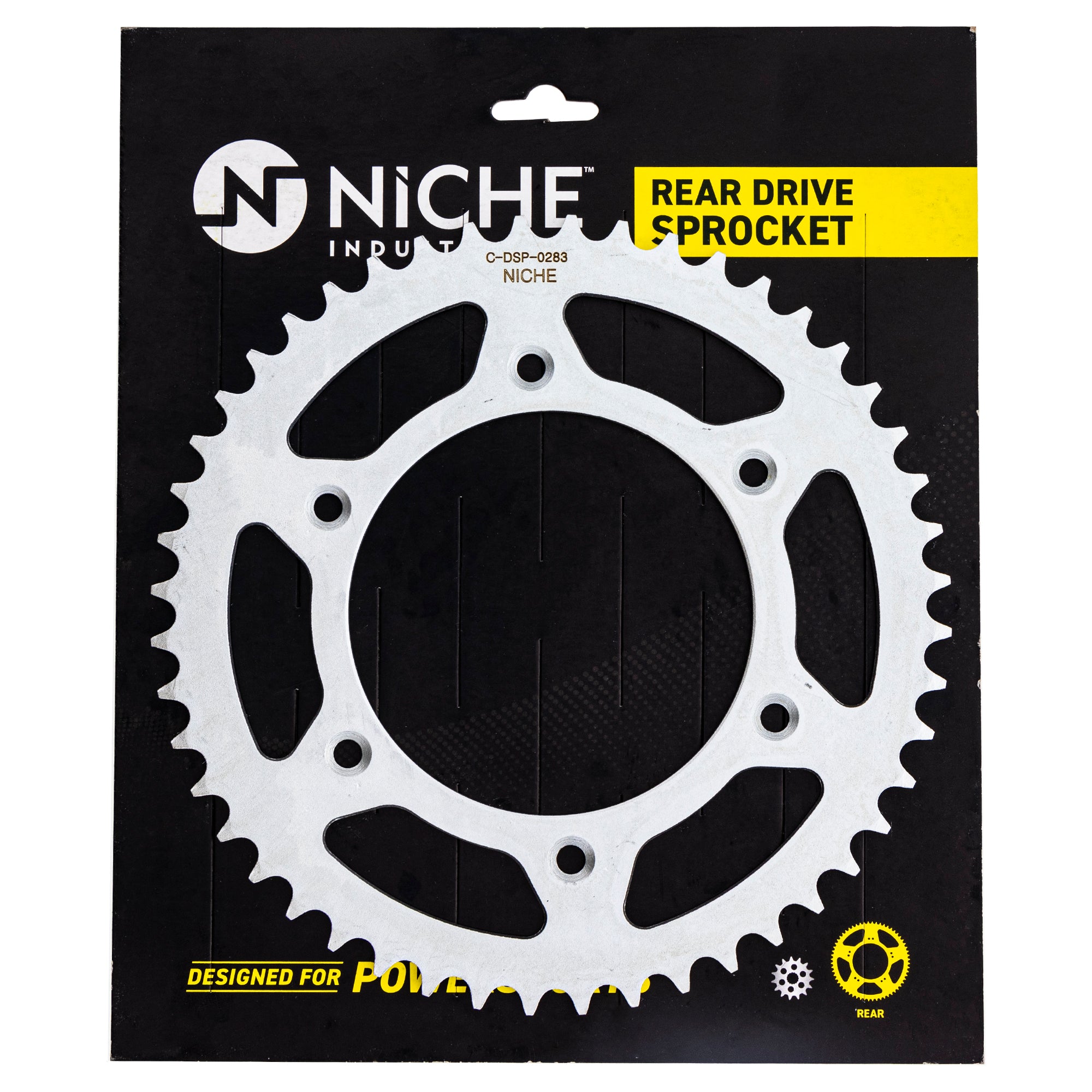

(QTY 1) NICHE 519-CDS2405P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 41202-MKE-A00, 41202-MAC-740, 41202-KZ4-B00, 41202-KZ3-J40, 41201-MBN-670, 41201-KPT-900, 41201-KCE-670

Compatibile with the Following Vehicles:

Honda CR250R: 2002-2007
Honda CRF450R 50th Anniversary Edition: 2023
Honda CRF450R: 2004-2023
Honda CRF450RWE: 2019-2022
Honda CRF450RX: 2017-2020
