Drive Sprocket Set Front & Rear for Suzuki KLX400R DRZ400E DRZ400 DR350 64511-29F00 NICHE MK1003056

NICHE MK1003056 Drive Sprocket for Suzuki KLX400R DRZ400E DRZ400

Drive Sprocket Set Front & Rear For Suzuki Kawasaki MK1003056

Roll over image to zoom in Click on image to zoom

Drive Sprocket Set Front & Rear For Suzuki Kawasaki MK1003056

Name: Drive Sprocket Set Front & Rear For Suzuki Kawasaki MK1003056
Brand: NICHE
SKU: 15KIT_MK1003056
Price: 47.95 USD
Availability: InStock

NICHESKU: 15KIT_MK1003056

Price:

$47.95 USD $56.99 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	MK1003056
UPC:	803467070728
Chain Pitch:	520
Inner Diameter:	Sprocket 1 - 19.5mm; Sprocket 2 - 126mm
Material:	AISI 1023 Steel
Distance Between Mounting Holes:	Sprocket 2 - 146mm
Front Sprocket Teeth:	14
Hub Inner Diameter:	Sprocket 1 - 19.5mm; Sprocket 2 - 126mm
Hub 2 Inner Diameter:	Sprocket 1 - 22.5mm
Mounting Hole Inner Diameter:	Sprocket 2 - 8.5mm
Rear Sprocket Teeth:	47
Sprocket Material:	SAE 1023 Structural Carbon Steel
Chain Size:	520

MK1003056 Drive Sprocket Set Front & Rear Product Info:

Kit includes 1 Front 14 tooth 520 Pitch drive sprocket, and 1 Rear 49 tooth 520 Pitch drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
Hub Inner Diameter 120mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 140mm; Hub Inner Diameter 110mm; Mounting Hole (ID) 8.5mm; Distance Between Mounting Holes (ID) 130mm

Included in This Kit:

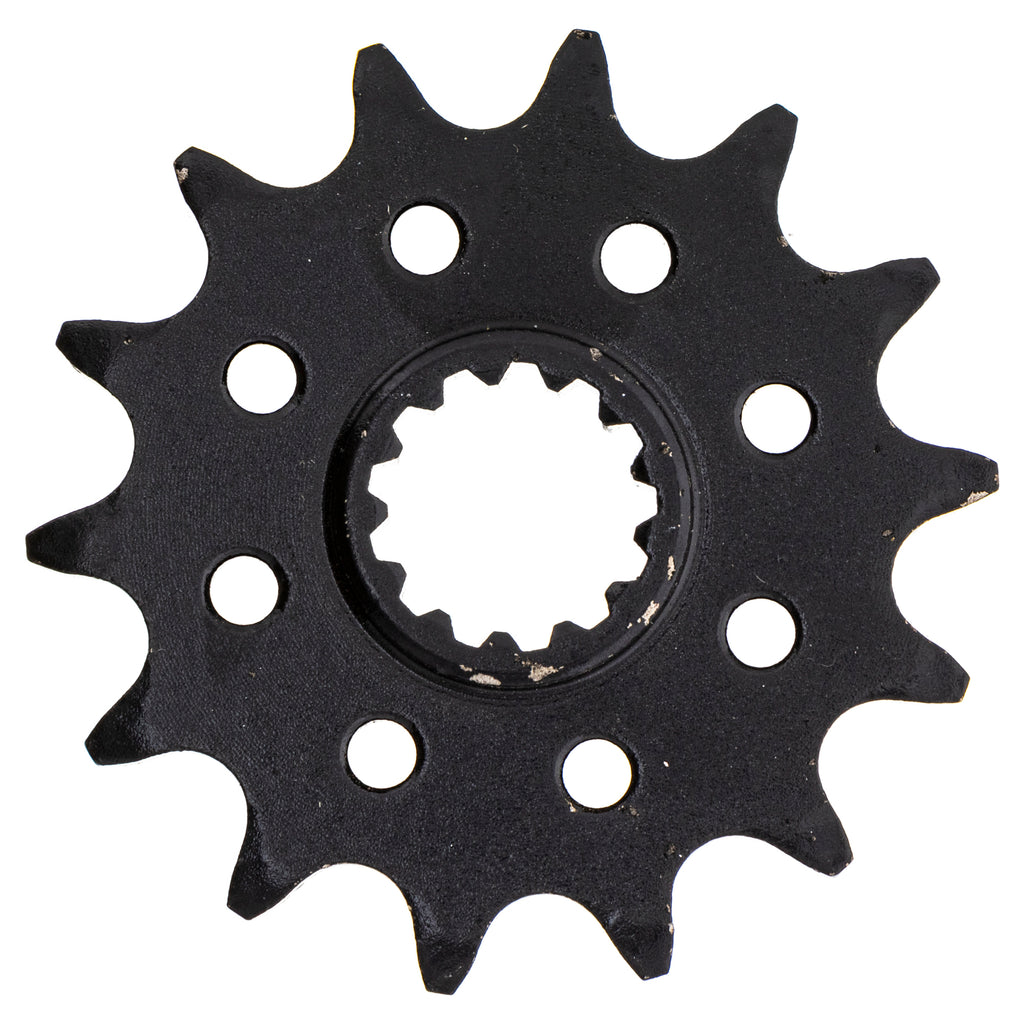

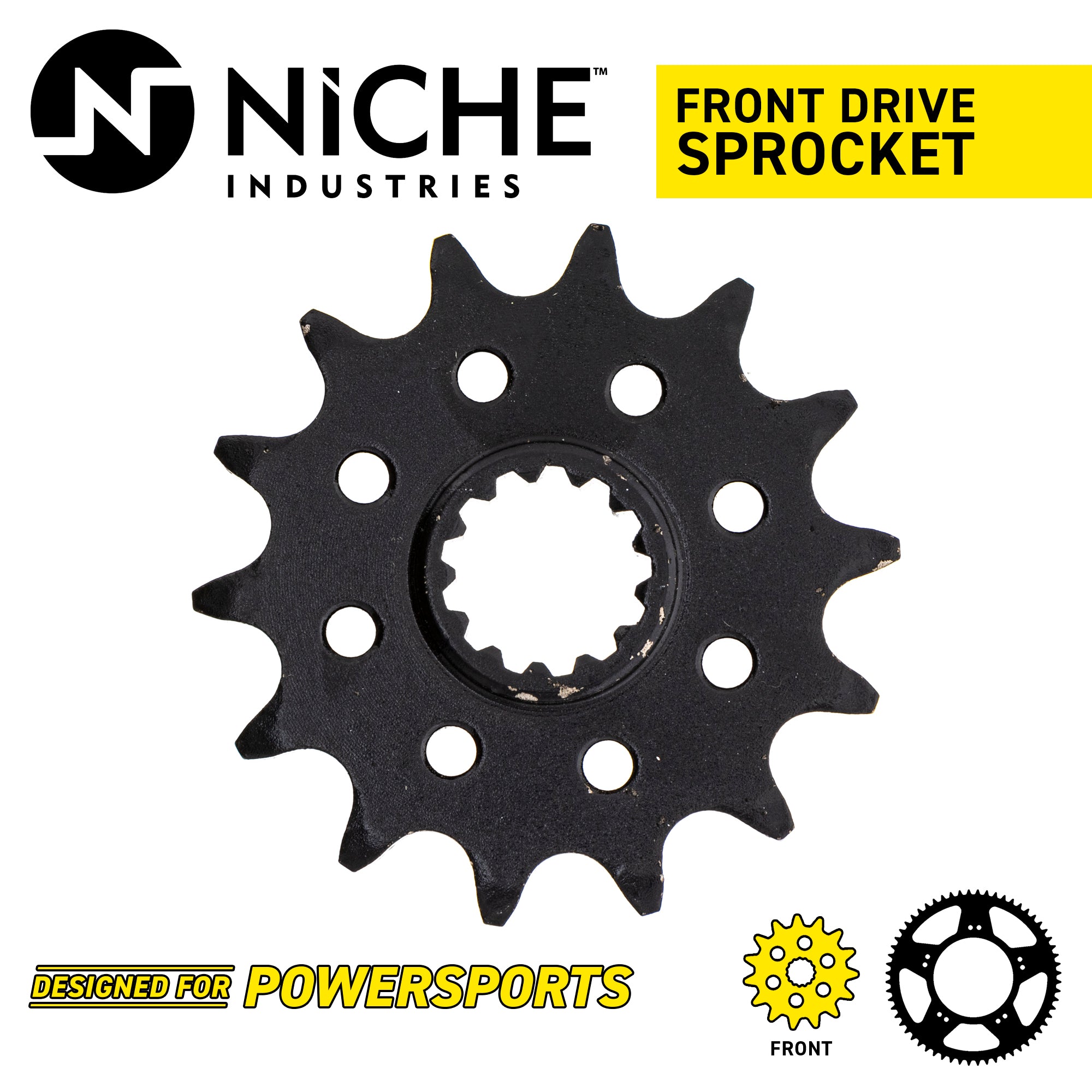

(QTY 1) NICHE 519-CDS2253P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 27511-47D10, 27511-47D00, 27511-14300

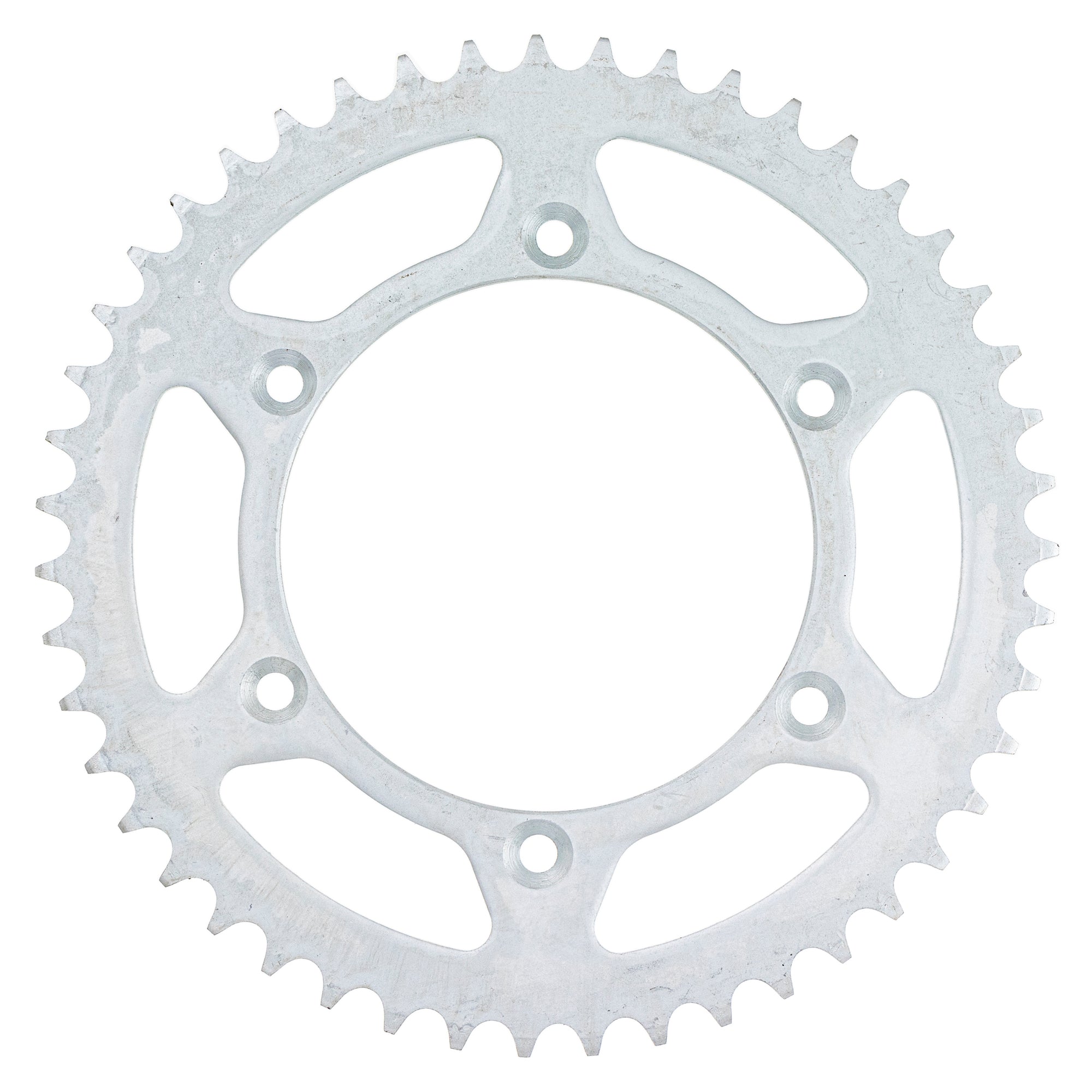

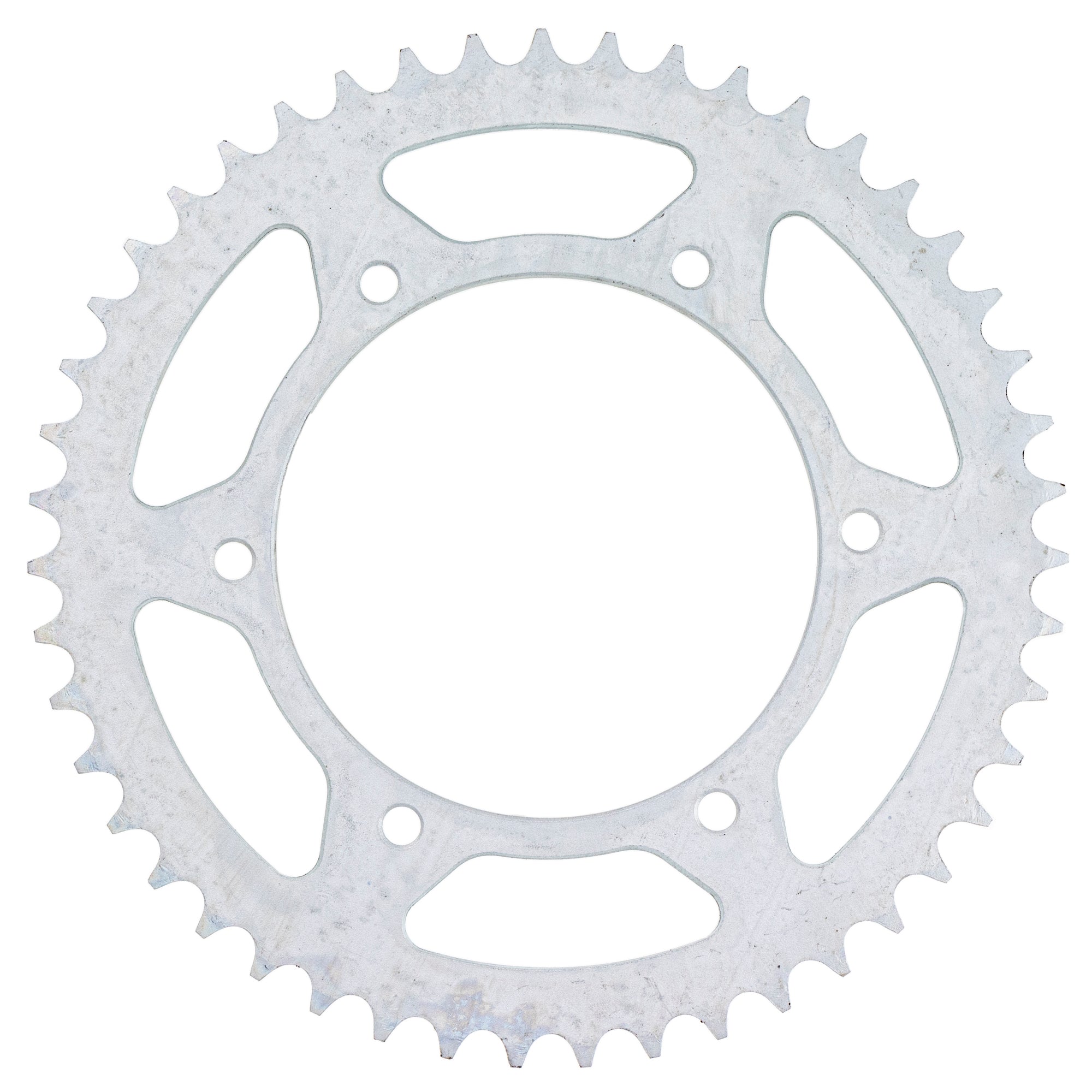

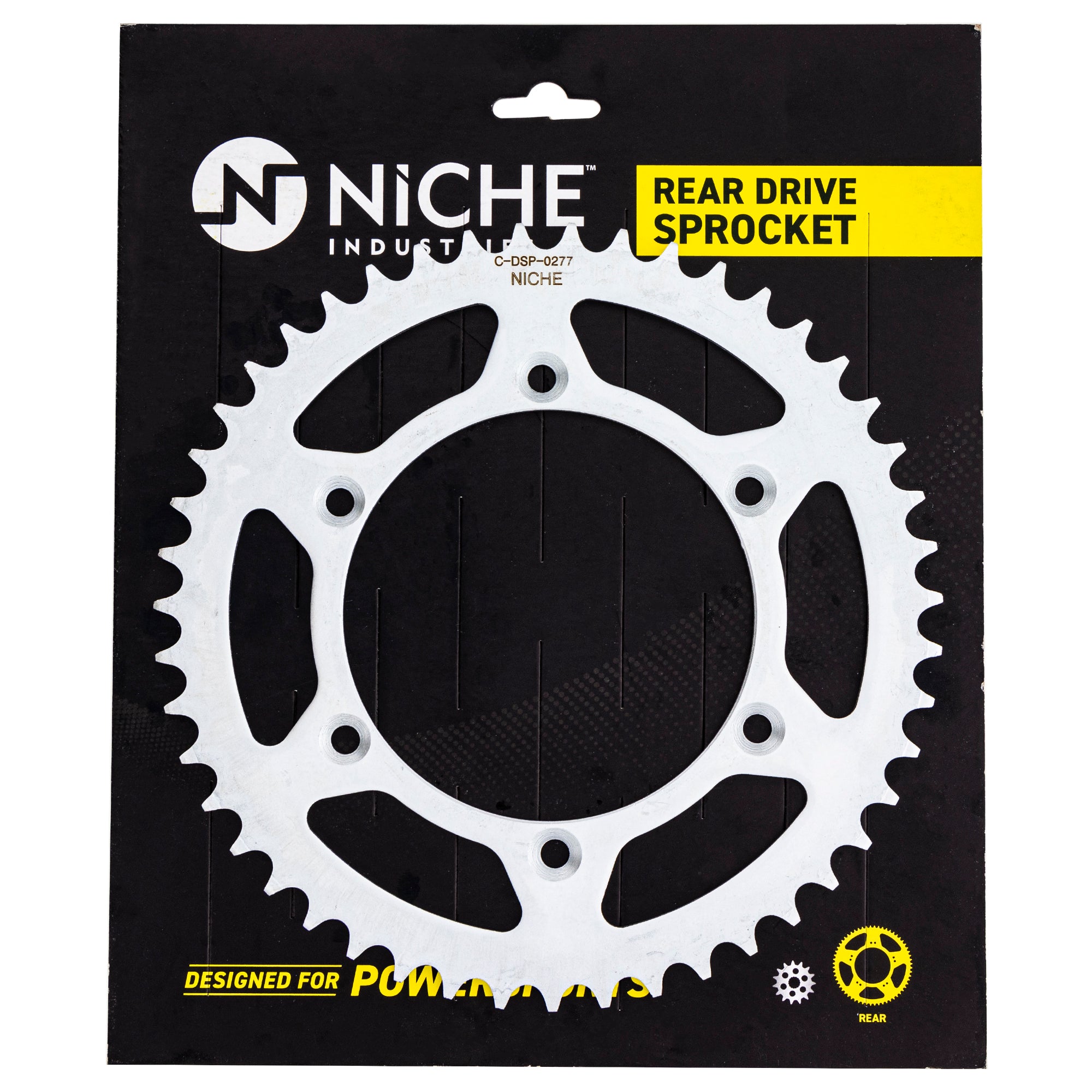

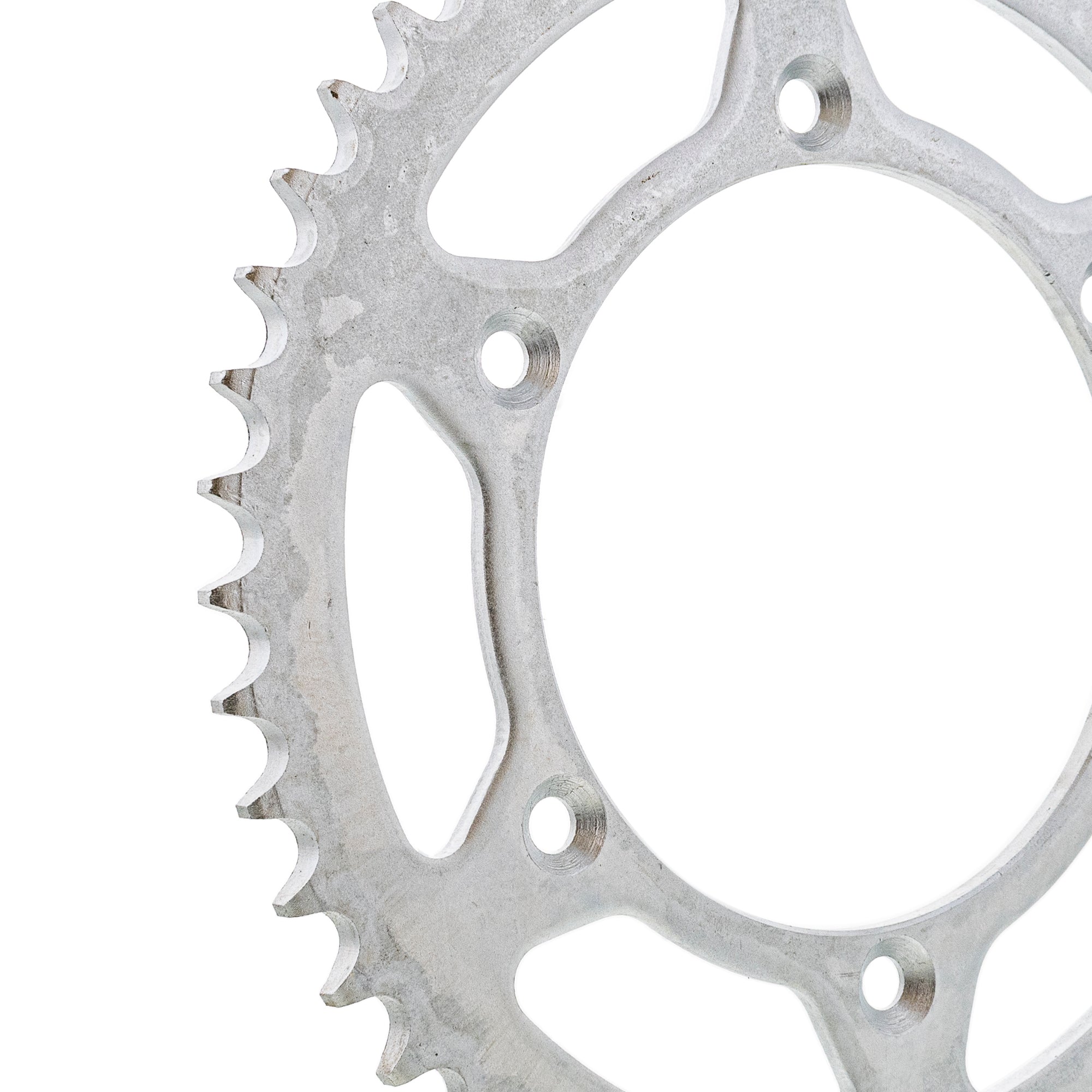

(QTY 1) NICHE 519-CDS2499P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 64511-29F00

Compatible with the Following Vehicles:

Kawasaki KLX400R: 2003
Suzuki DR350: 1990-1993
Suzuki DRZ400: 2000-2007
Suzuki DRZ400E: 2000-2007

WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
