Name: Drive Sprocket Set Front & Rear For Suzuki MK1003041
Brand: NICHE
SKU: 15KIT_MK1003041
Price: 45.95 USD
Availability: InStock

Drive Sprocket Set Front & Rear for zOTHER Suzuki JT Sprocket RF900R Katana GSXR750 NICHE MK1003041

NICHE MK1003041 Drive Sprocket for zOTHER Suzuki JT Sprocket

Drive Sprocket Set Front & Rear For Suzuki MK1003041

Roll over image to zoom in Click on image to zoom

MPN:	MK1003041
UPC:	803467070575
Chain Pitch:	530
Inner Diameter:	Sprocket 1 - 21.7mm; Sprocket 2 - 76mm
Material:	AISI 1023 Steel
Distance Between Mounting Holes:	Sprocket 1 - 42mm; Sprocket 2 - 100mm
Front Sprocket Teeth:	15
Hub Inner Diameter:	Sprocket 1 - 21.7mm; Sprocket 2 - 76mm
Hub 2 Inner Diameter:	Sprocket 1 - 25mm
Mounting Hole Inner Diameter:	Sprocket 2 - 10.5mm
Rear Sprocket Teeth:	43
Sprocket Material:	SAE 1023 Structural Carbon Steel
Chain Size:	530

MK1003041 Drive Sprocket Set Front & Rear Product Info:

Kit includes 1 Front 530 Pitch 15 tooth drive sprocket, and 1 Rear 530 Pitch 43 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
Hub Inner Diameter 130mm; Mounting Hole (ID) 8.5mm; Distance Between Mounting Holes (ID) 150mm; Hub Inner Diameter 110mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 130mm

Included in This Kit:

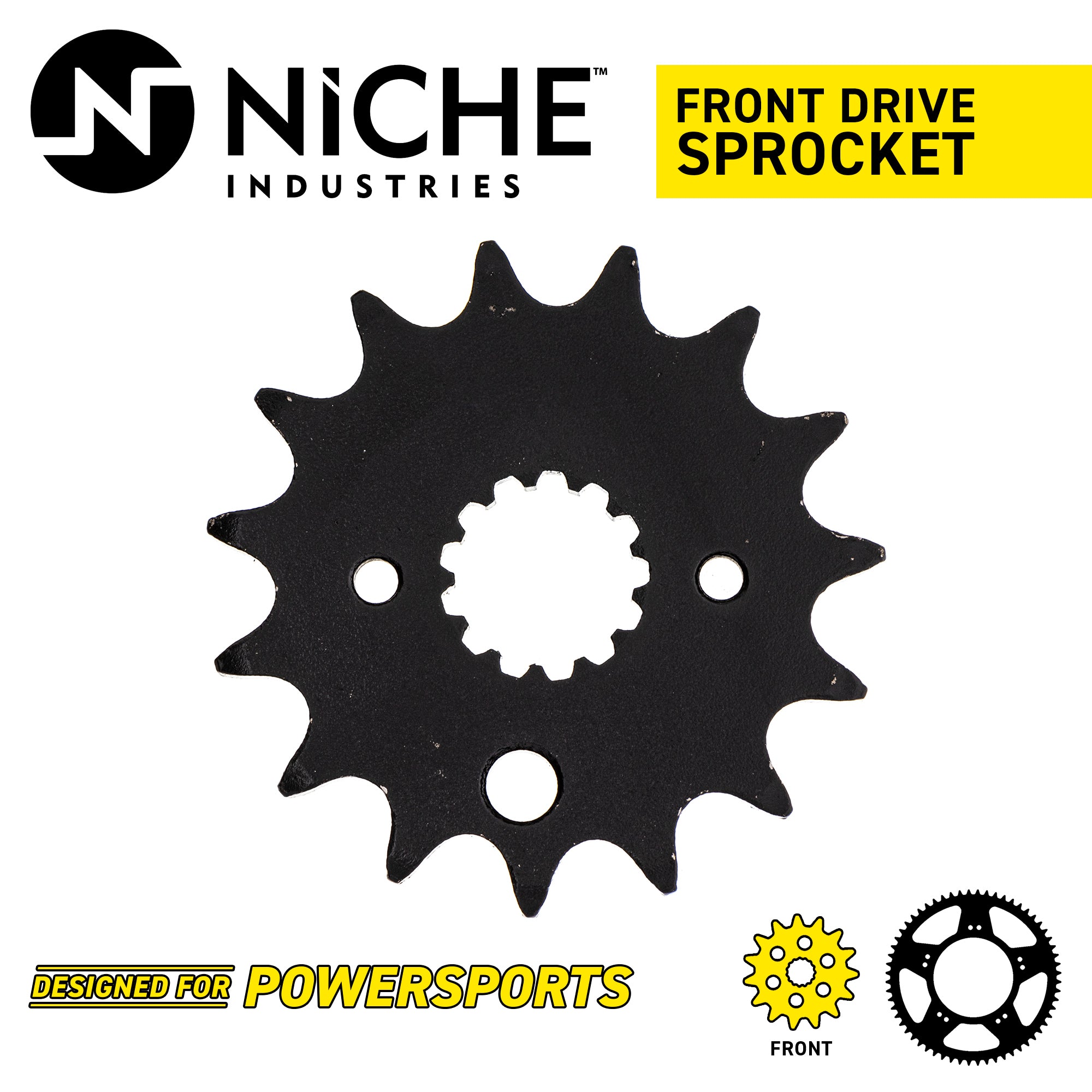

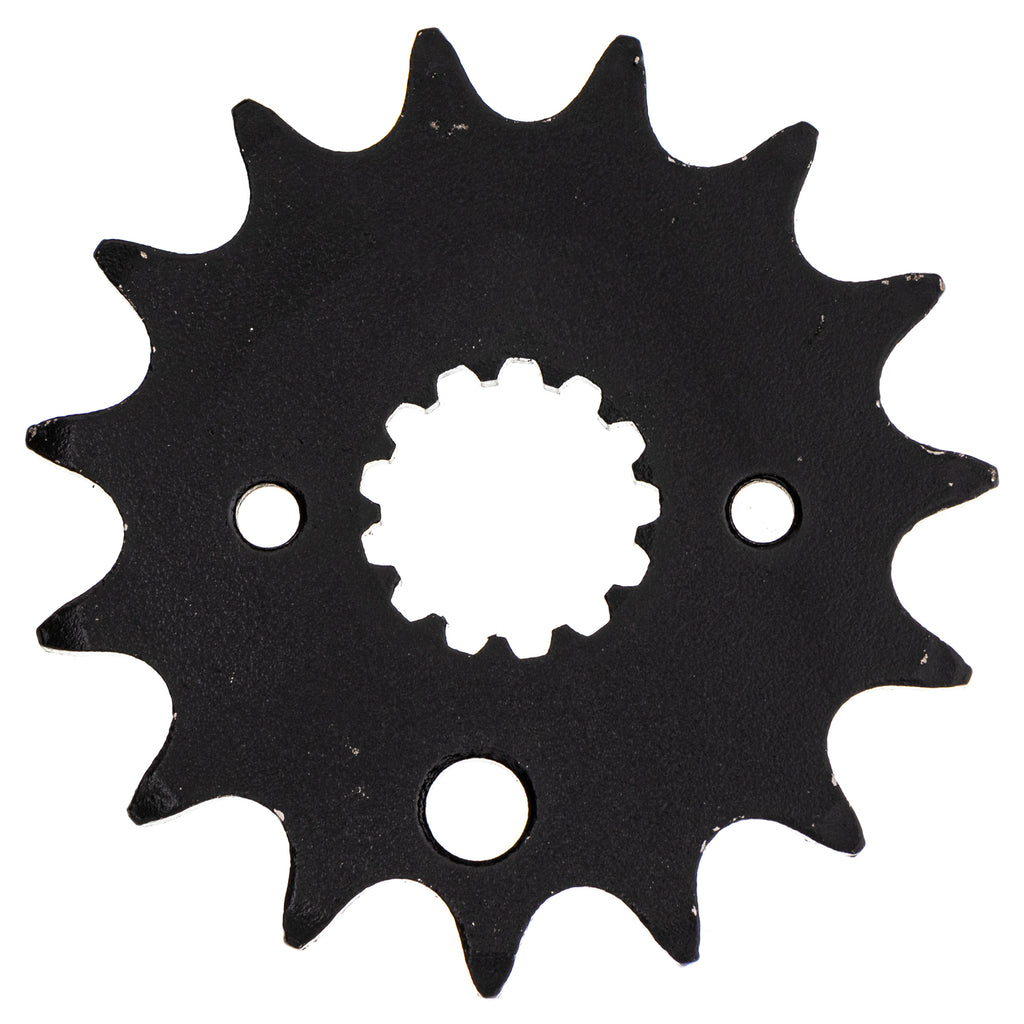

(QTY 1) NICHE 519-CDS2230P Tooth Front Drive Sprocke

Substitute For OEM Part Numbers(s): 4TV-17460-00-00, 3HE-17460-00-00, 27600-21E00-112, 27510-17C10, 27510-17C00

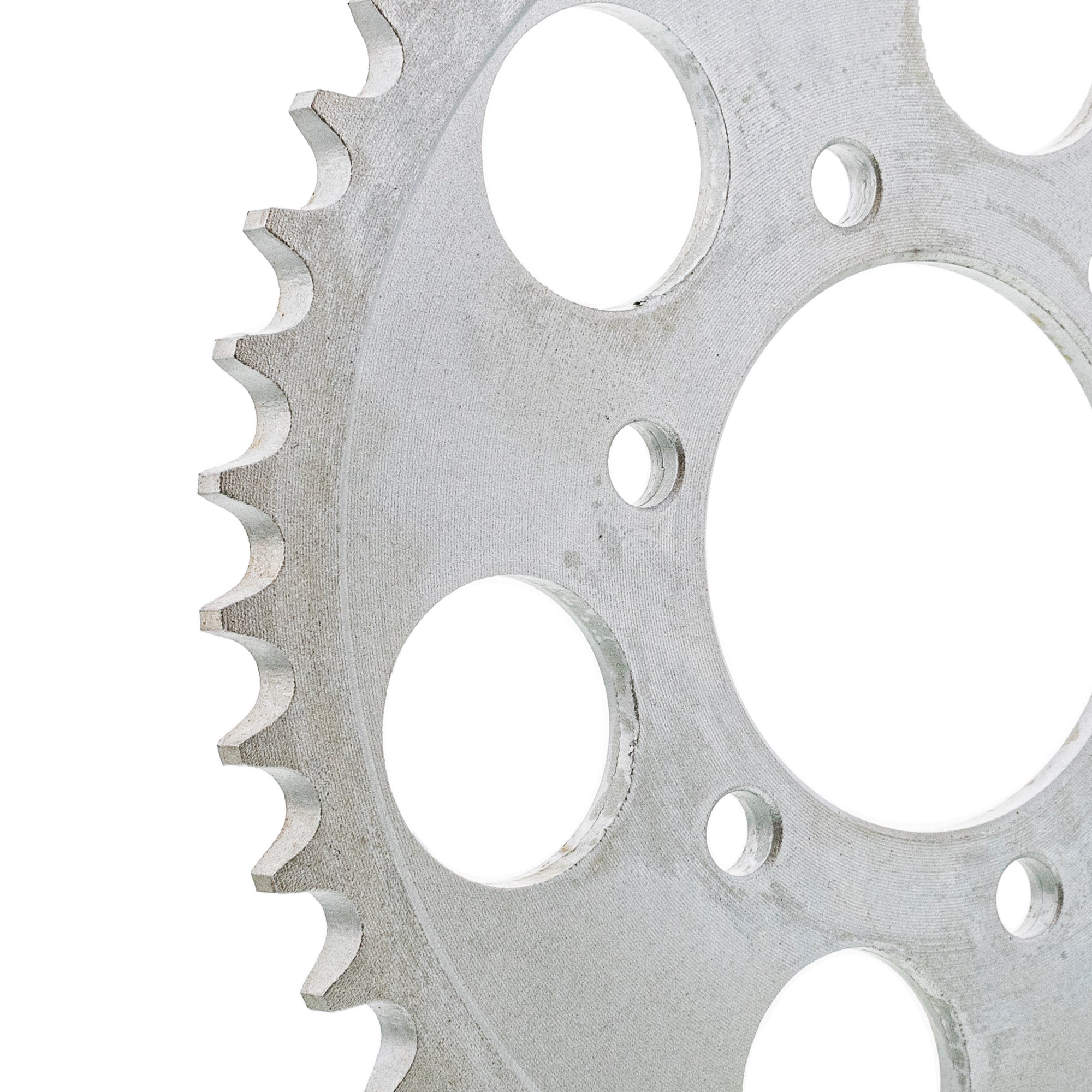

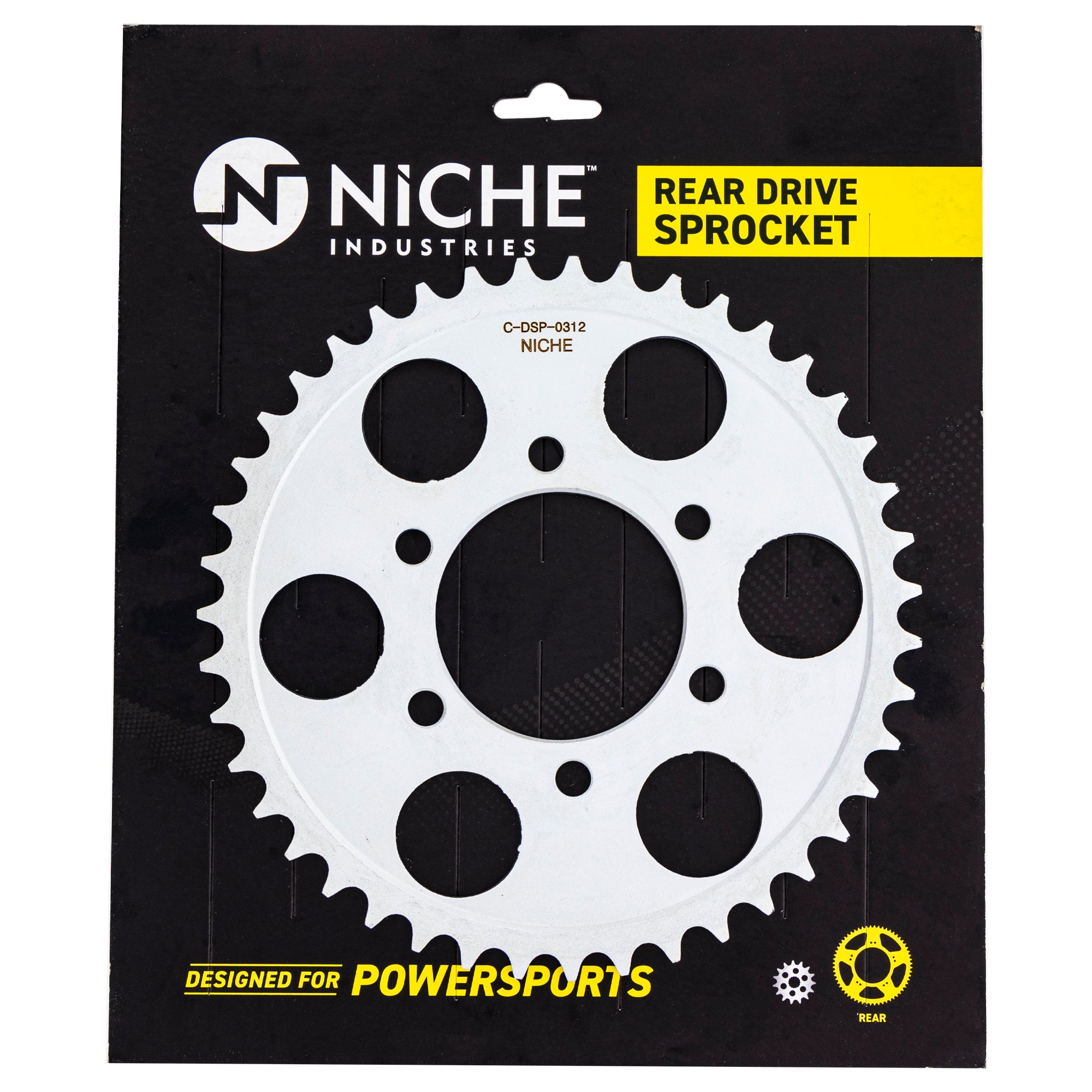

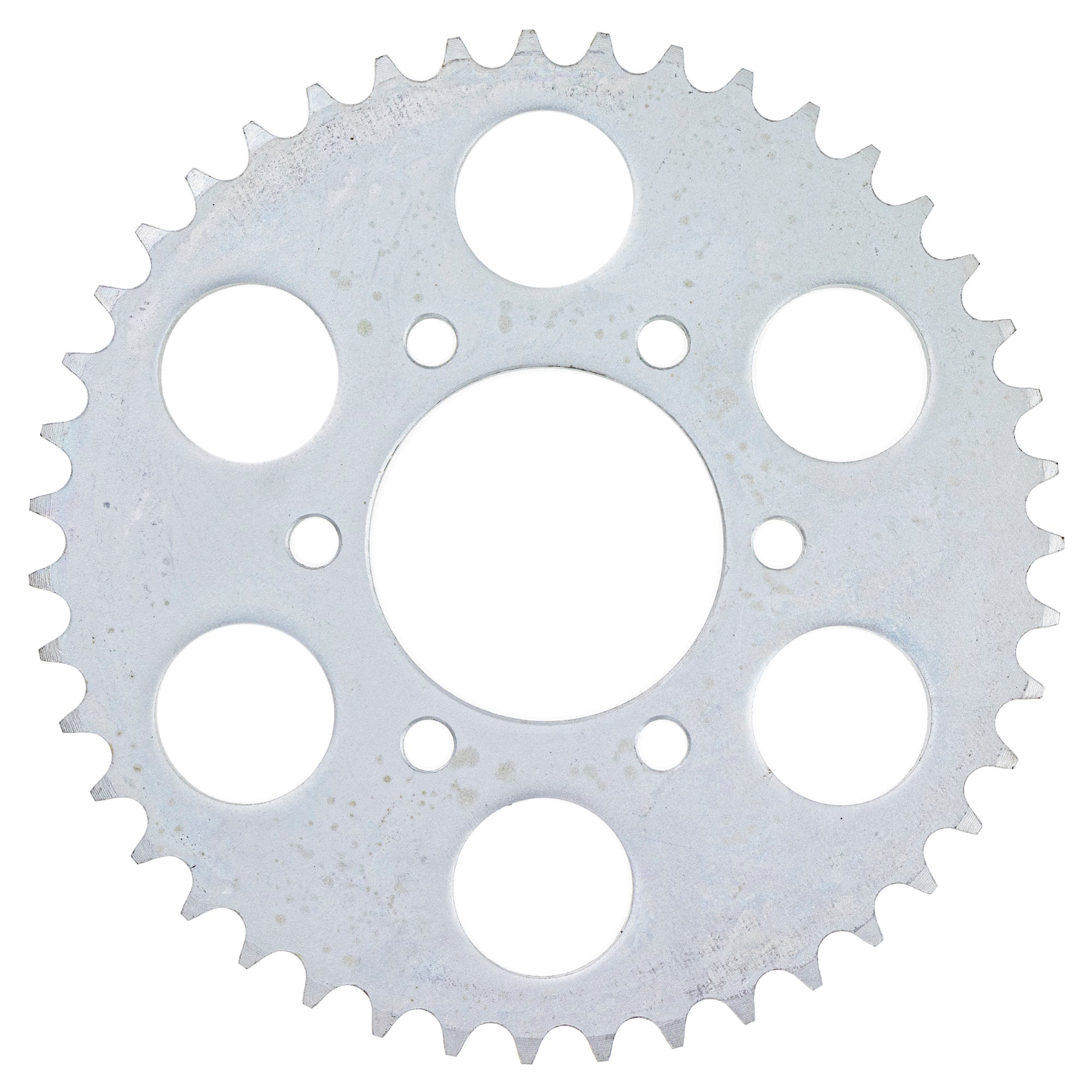

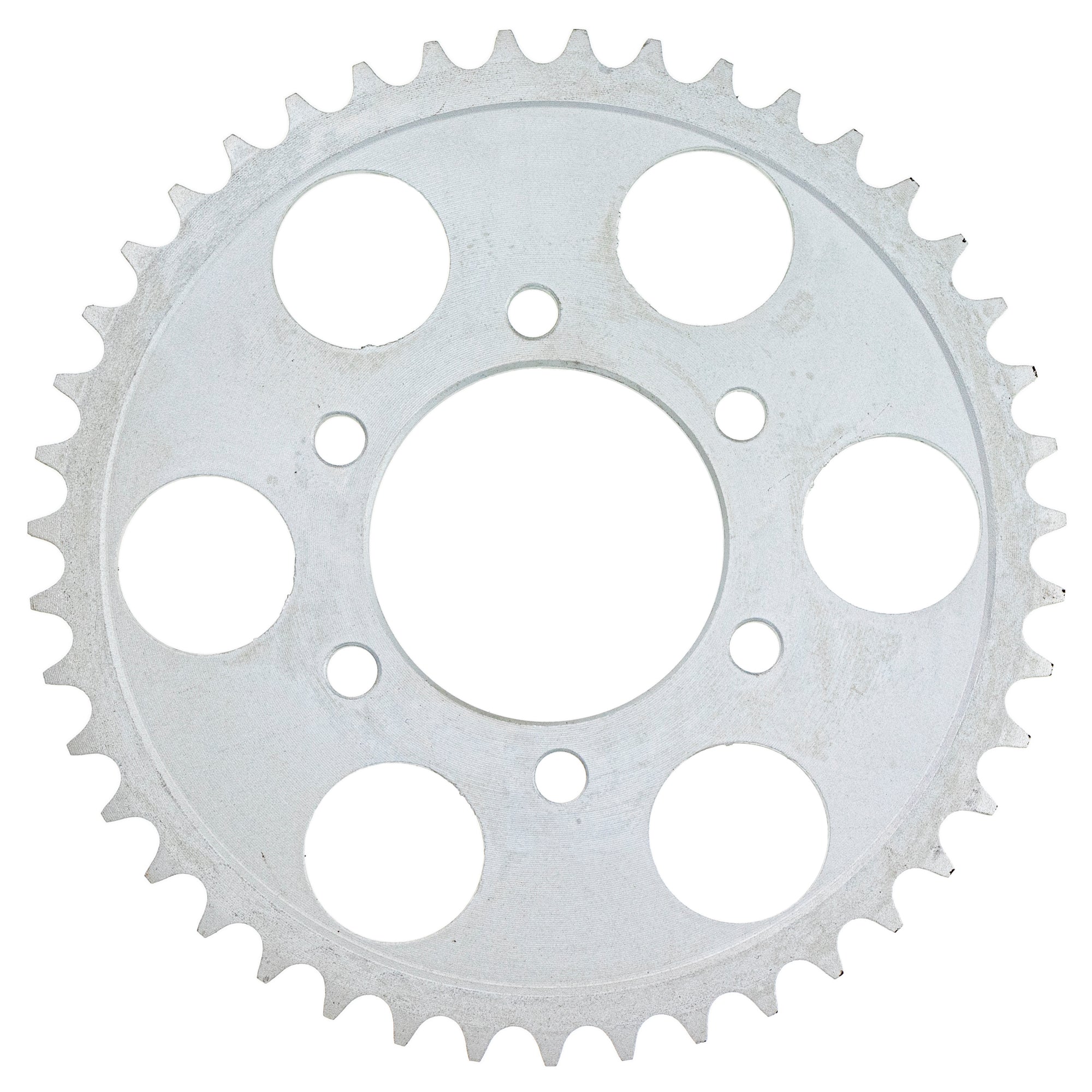

(QTY 1) NICHE 519-CDS2534P Tooth Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 64511-47640, 64511-07D11, 64511-07D10

Compatibile with the Following Vehicles:

Suzuki GSXR750: 1990-1991
Suzuki Katana 750 GSX750F: 1989
Suzuki RF900R: 1994-1997
