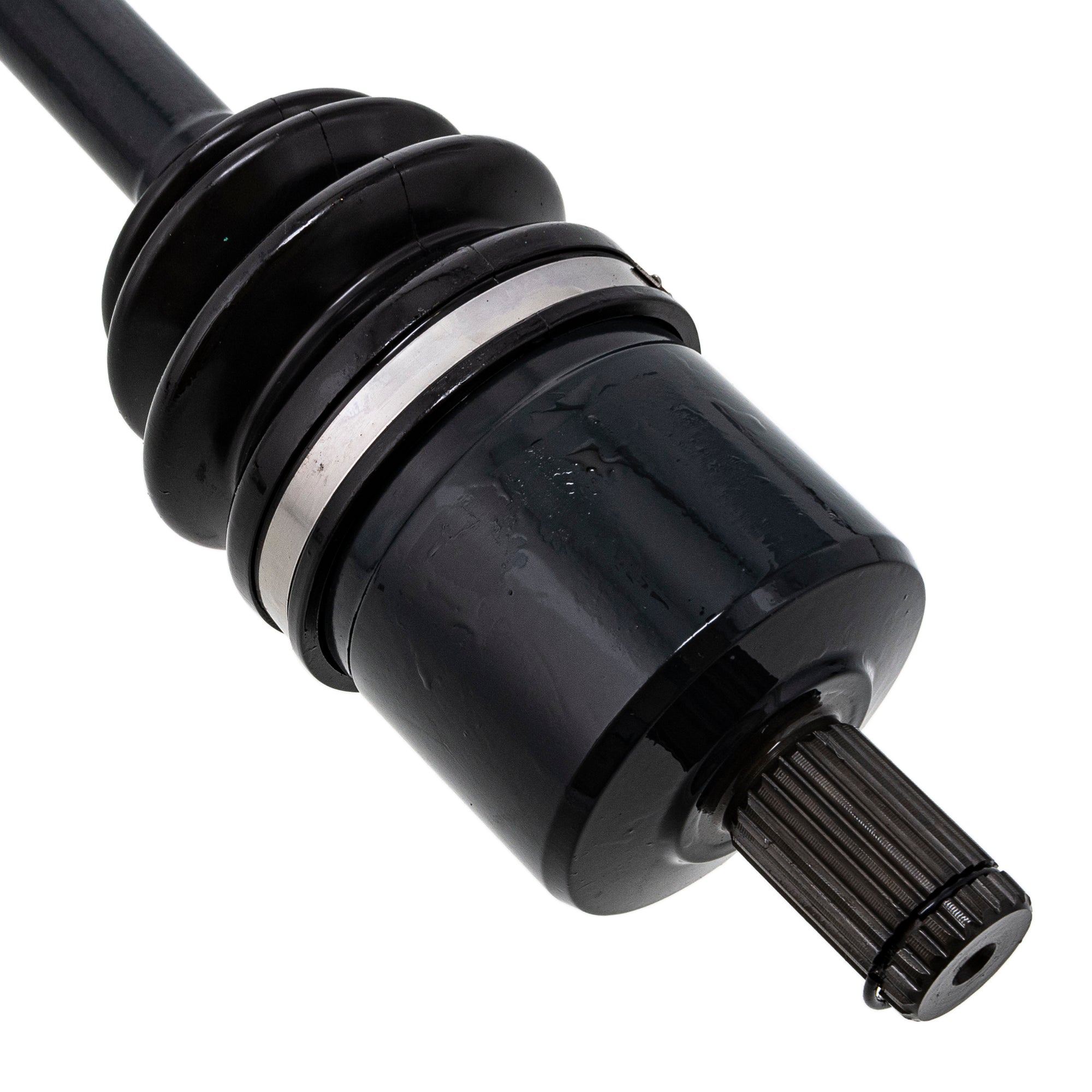

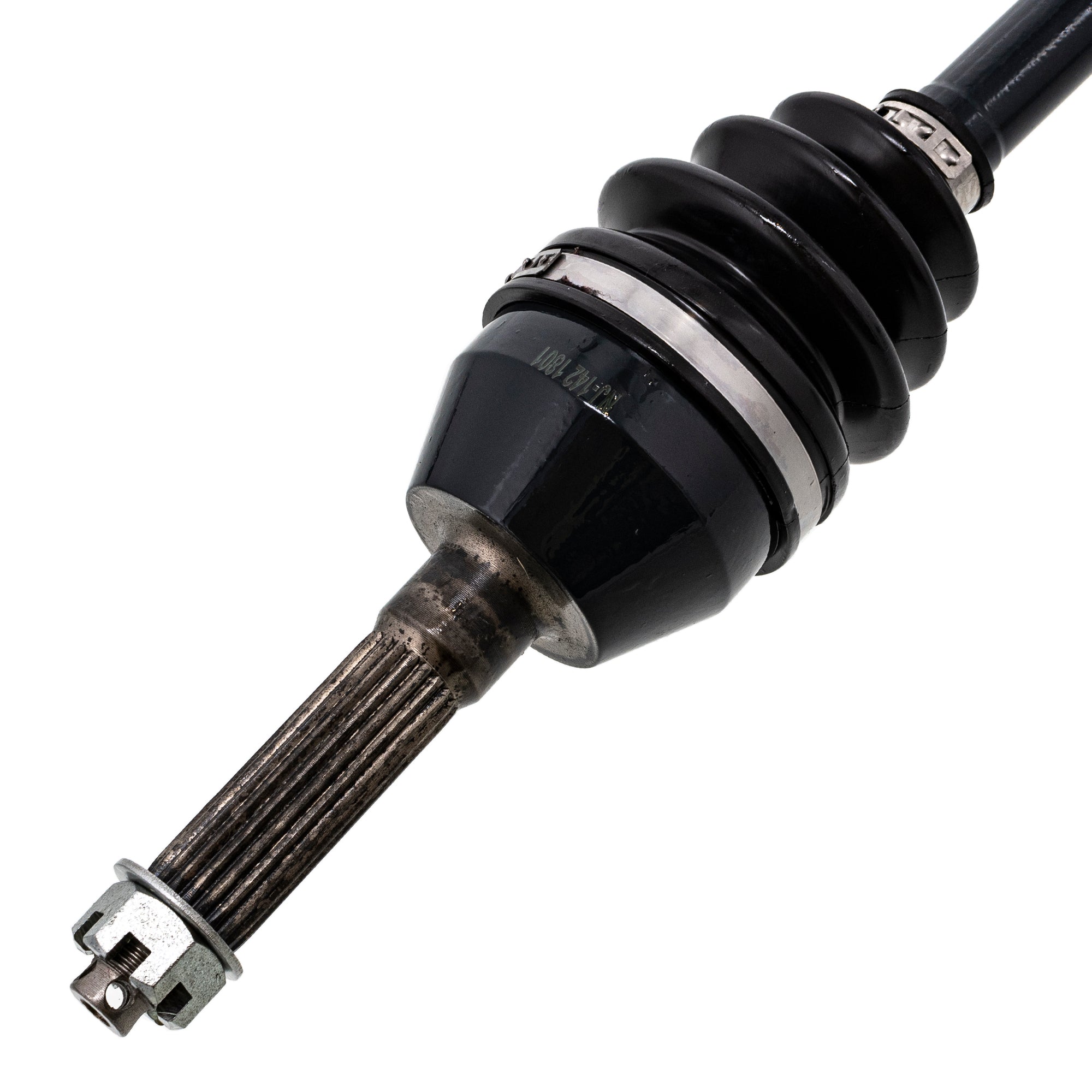

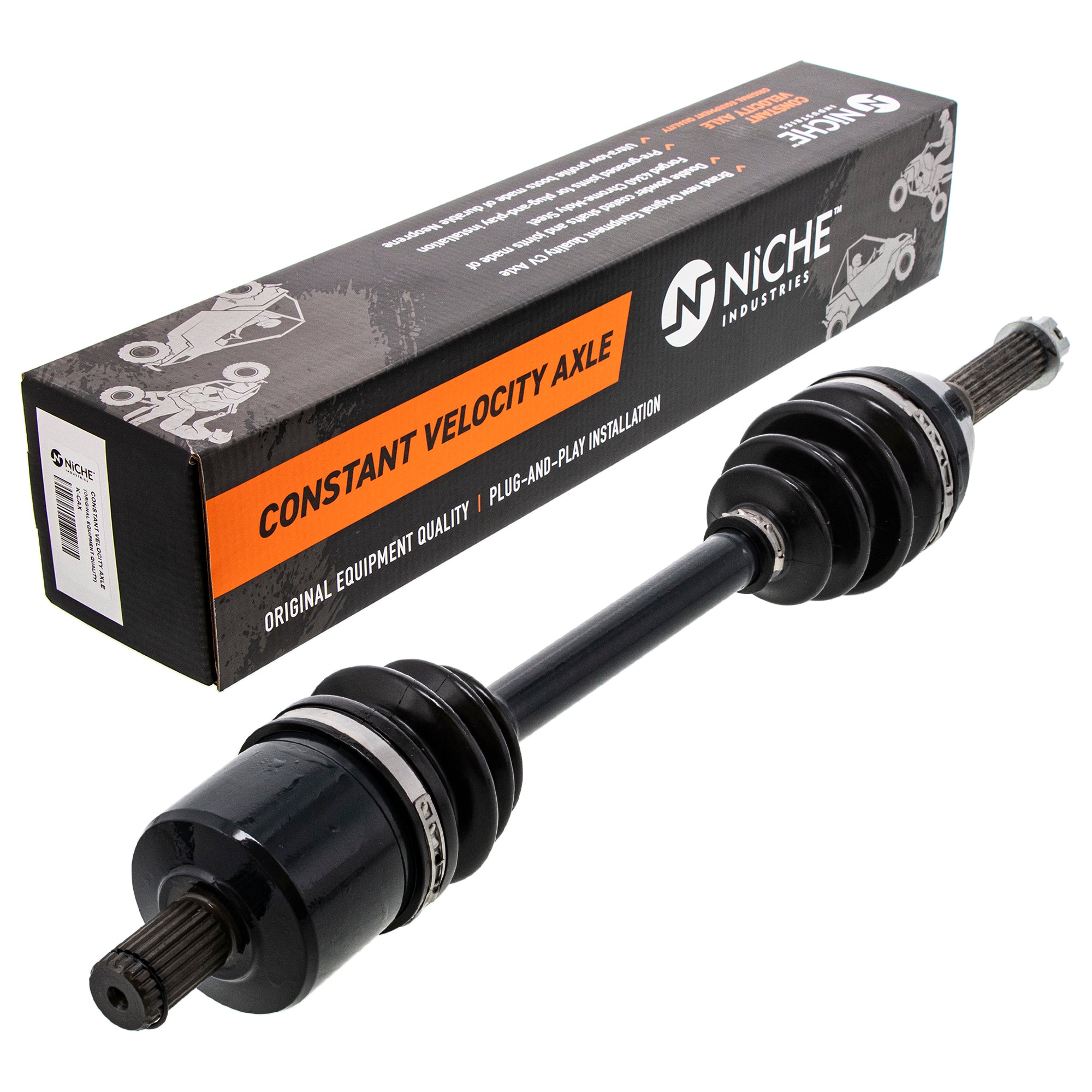

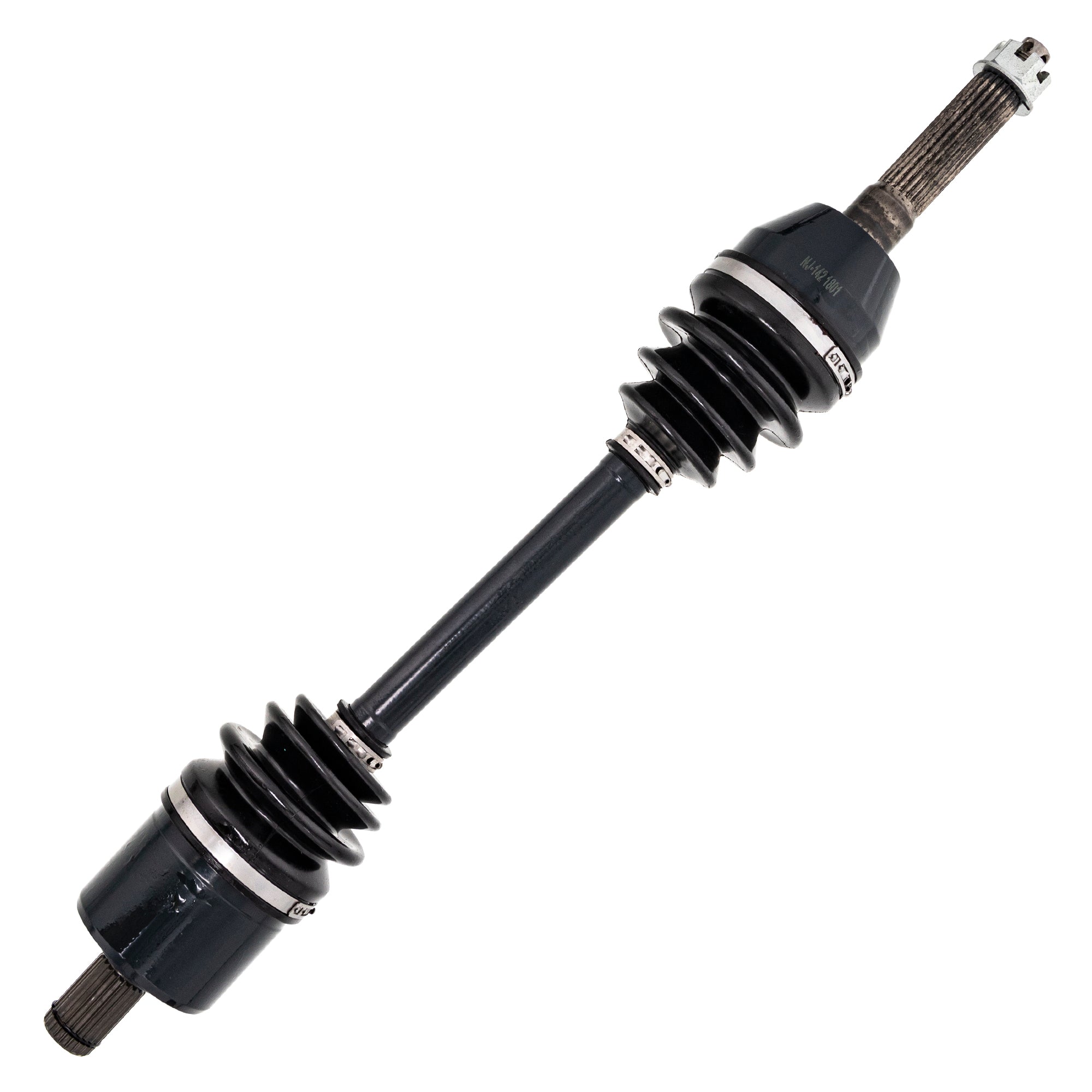

High Strength CV Axle Drive Shaft Set For Polaris MK1002954

MK1002954 High Strength CV Axle Drive Shaft Set Product Info:

• Front Compressed Length 21 1/4, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 20T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement 5/8X16
• Rear Compressed Length 21 9/16, Inboard Splines 36T, Inboard Spline Diameter 2 3/4, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement M18X1.5

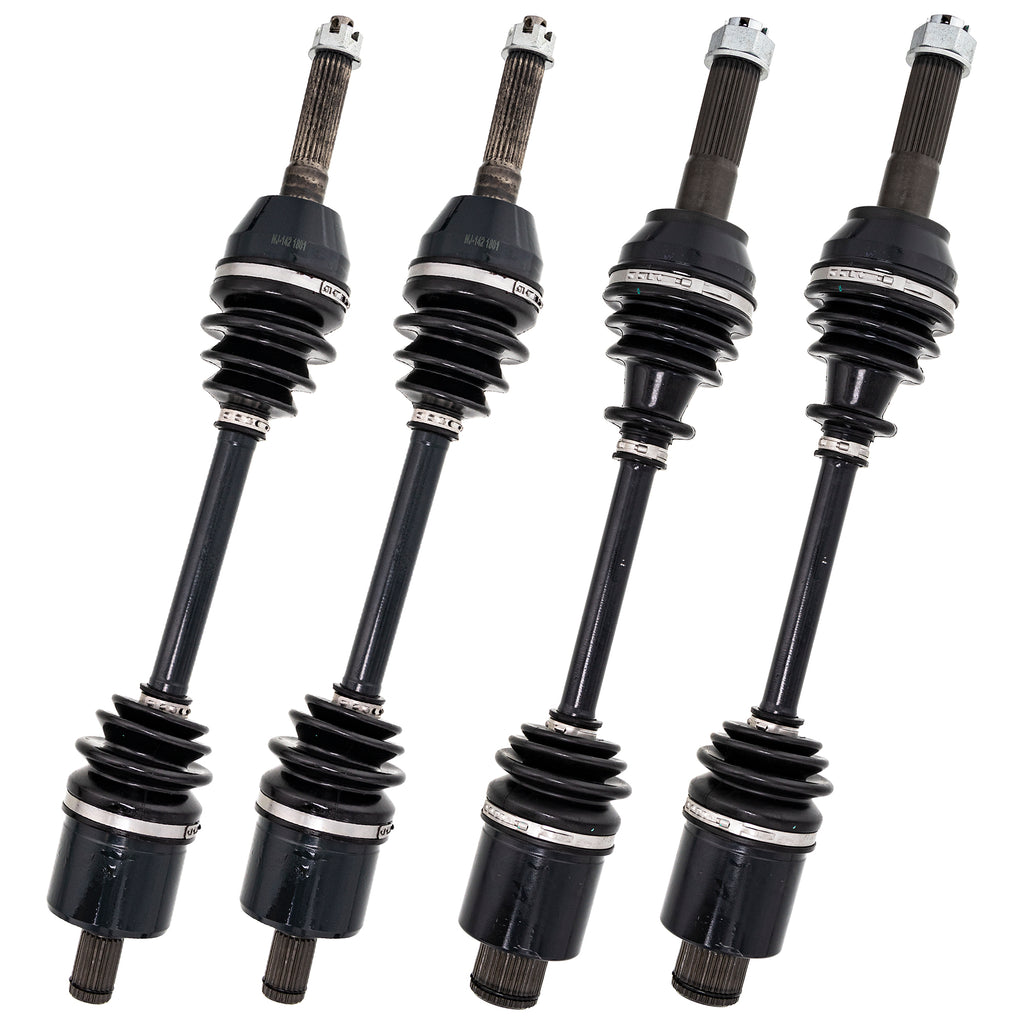

Included in This Kit:

(QTY 2) NICHE 519-KCA2243X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332347

(QTY 2) NICHE 519-KCA2258X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332935, 1332654, 1332511, 1332421

Compatible with the Following Vehicles:

Polaris Sportsman 800 Deluxe: 2007
Polaris Sportsman 800: 2007
Polaris Sportsman 700 MV: 2007
Polaris Sportsman 700 EFI Twin: 2007
Polaris Sportsman 500 HO Limited: 2007
Polaris Sportsman 500 HO: 2007
Polaris Sportsman 450: 2007
