High Strength CV Axle Drive Shaft Set For Polaris MK1002376

MK1002376 High Strength CV Axle Drive Shaft Set Product Info:

• Front Compressed Length: 27 1/8, Inboard Splines: 22T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 26T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 7/8, Thread Measurement: M18X1.5
• Rear Left Compressed Length: 27, Inboard Splines: 27T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 26T, Outboard Spline Diameter: 3, Shaft Diameter: 13/16, Thread Measurement: M18X1.5
• Rear Right Compressed Length: 27 3/16, Inboard Splines: 27T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 26T, Outboard Spline Diameter: 3, Shaft Diameter: 13/16, Thread Measurement: M18x1.5

Included in This Kit:

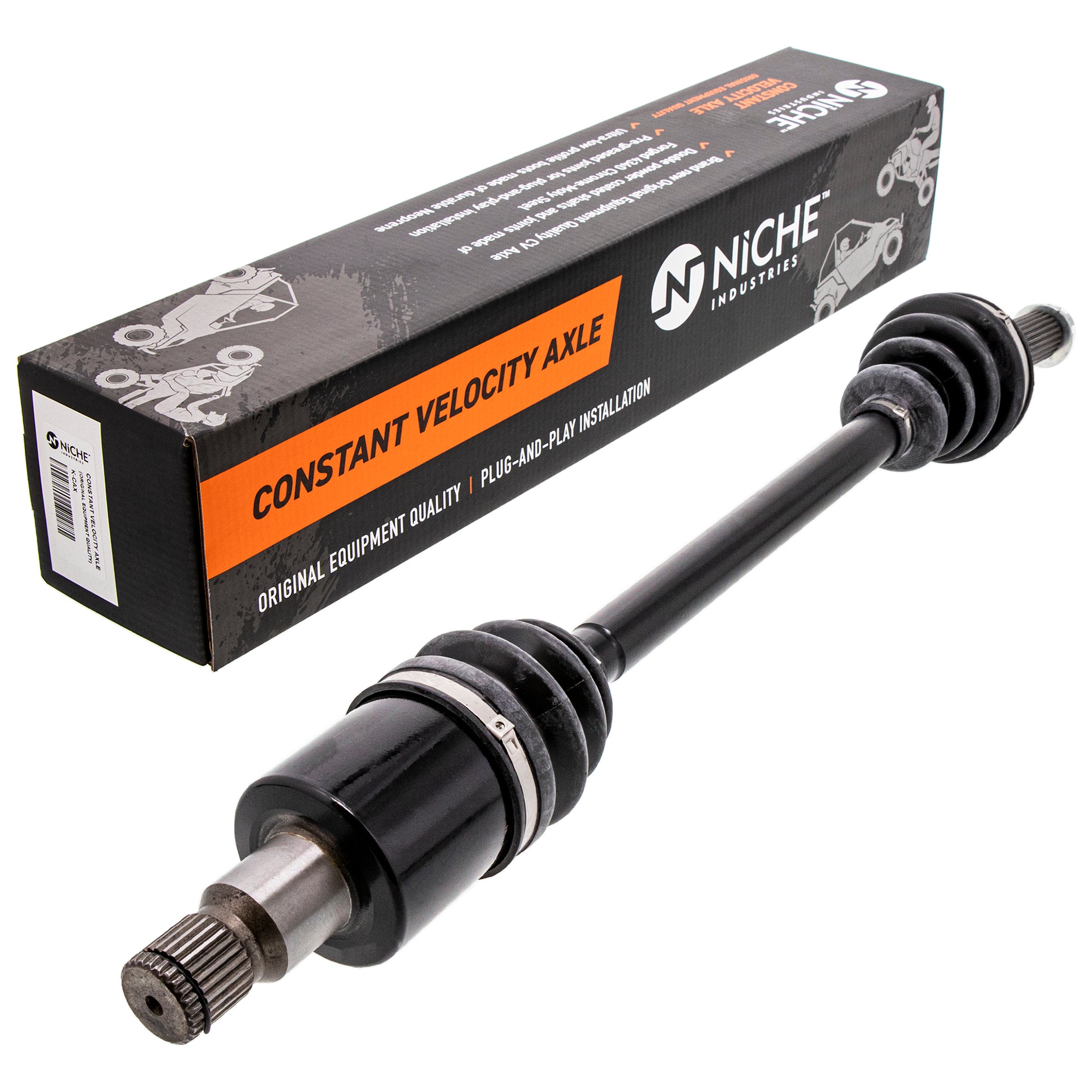

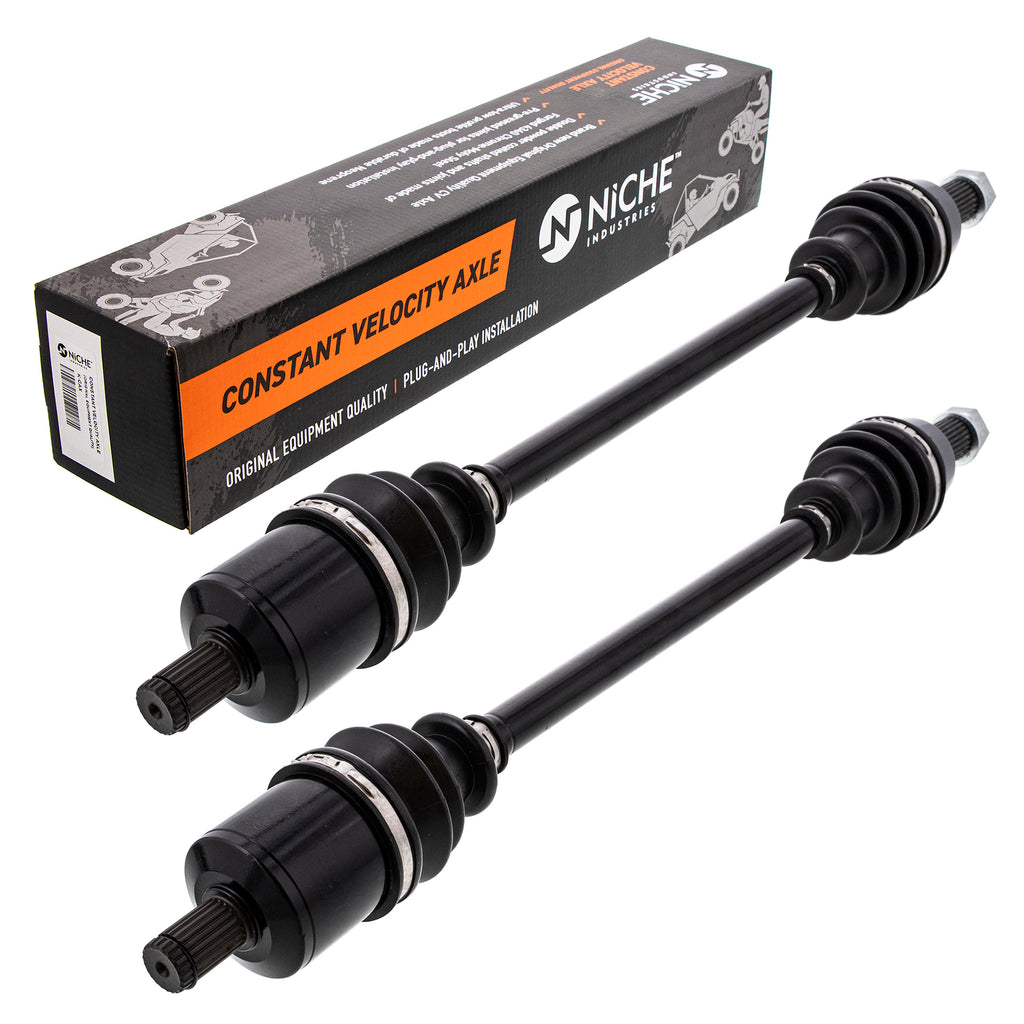

(QTY 2) NICHE 519-KCA2248X High Strength Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332637

(QTY 1) NICHE 519-KCA2256X High Strength CV Axle Drive Shaft

Substitute For OEM Part Numbers(s): 1332883, 1332638

(QTY 1) NICHE 519-KCA2348X Heavy Duty Drive Shaft CV Axle

Substitute For OEM Part Numbers(s): 2203909, 1332885, 1332725

Compatibile with the Following Vehicles:

Polaris RZR 4 800: 2011-2012
Polaris RZR S 800: 2009-2014
