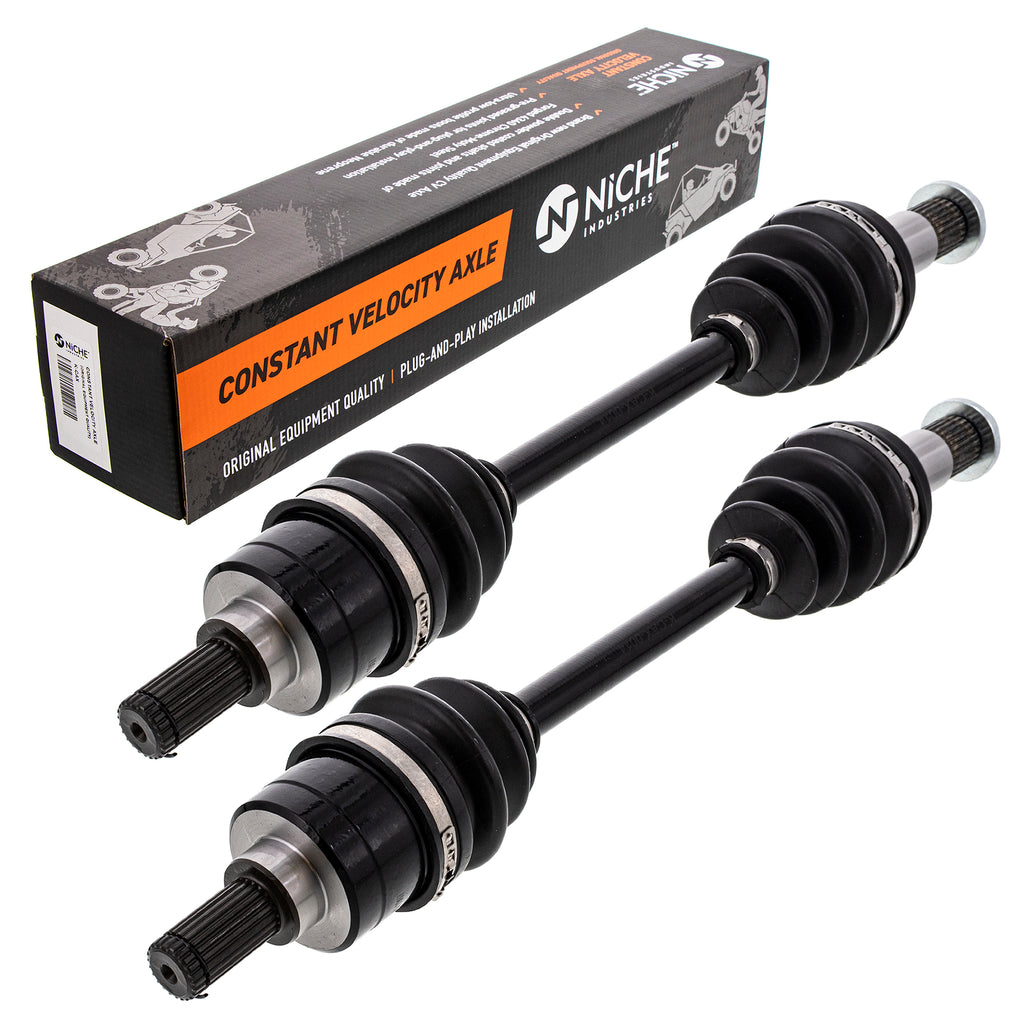

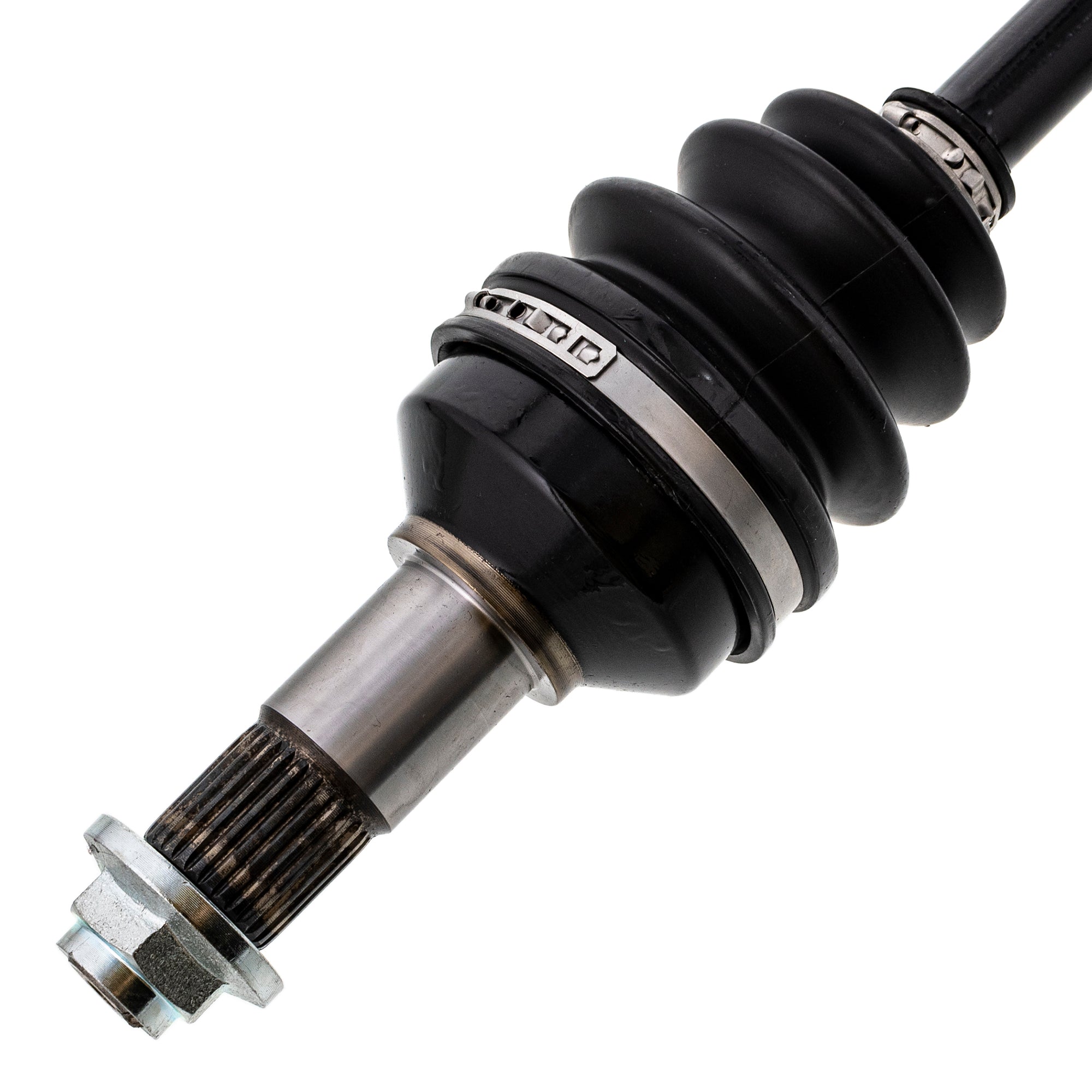

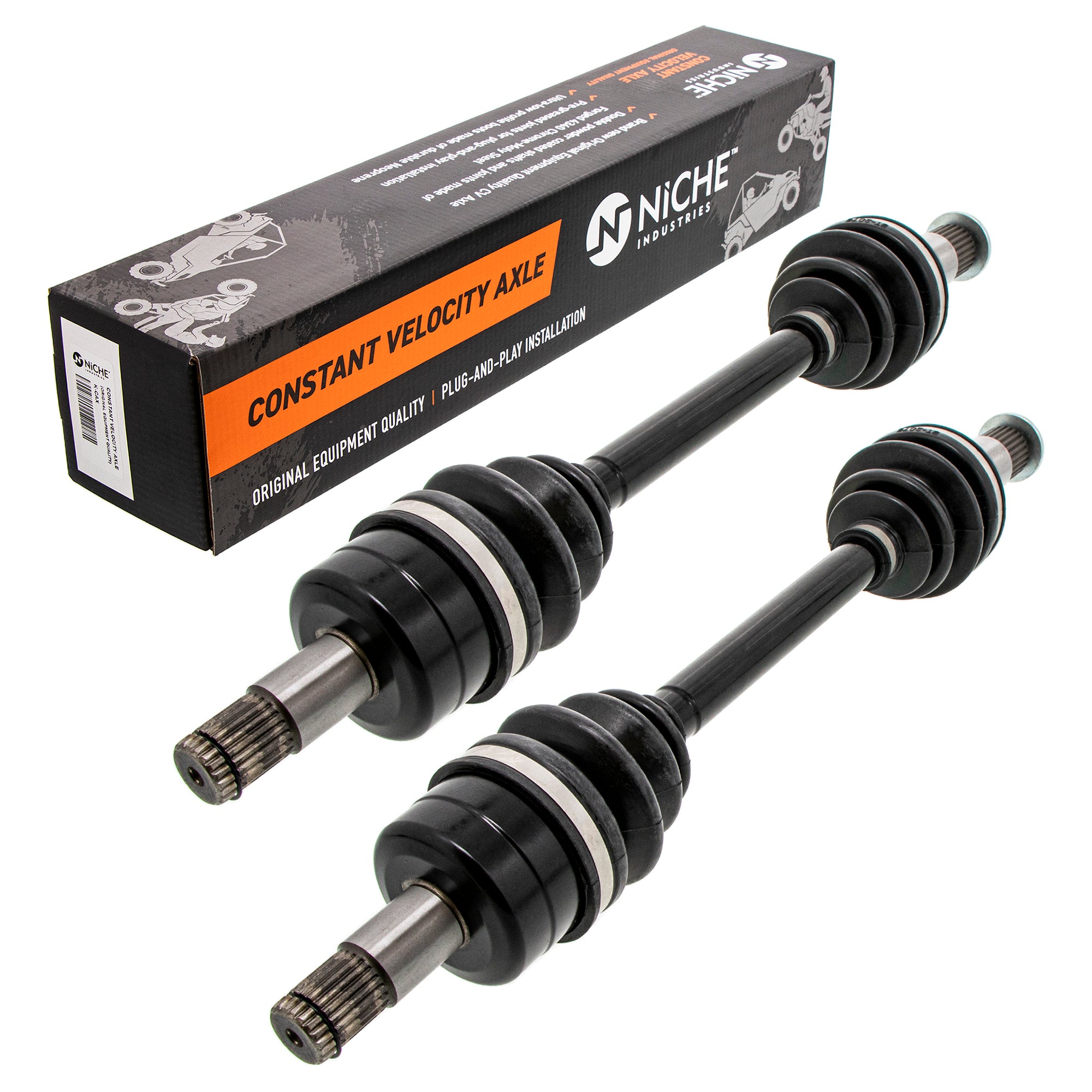

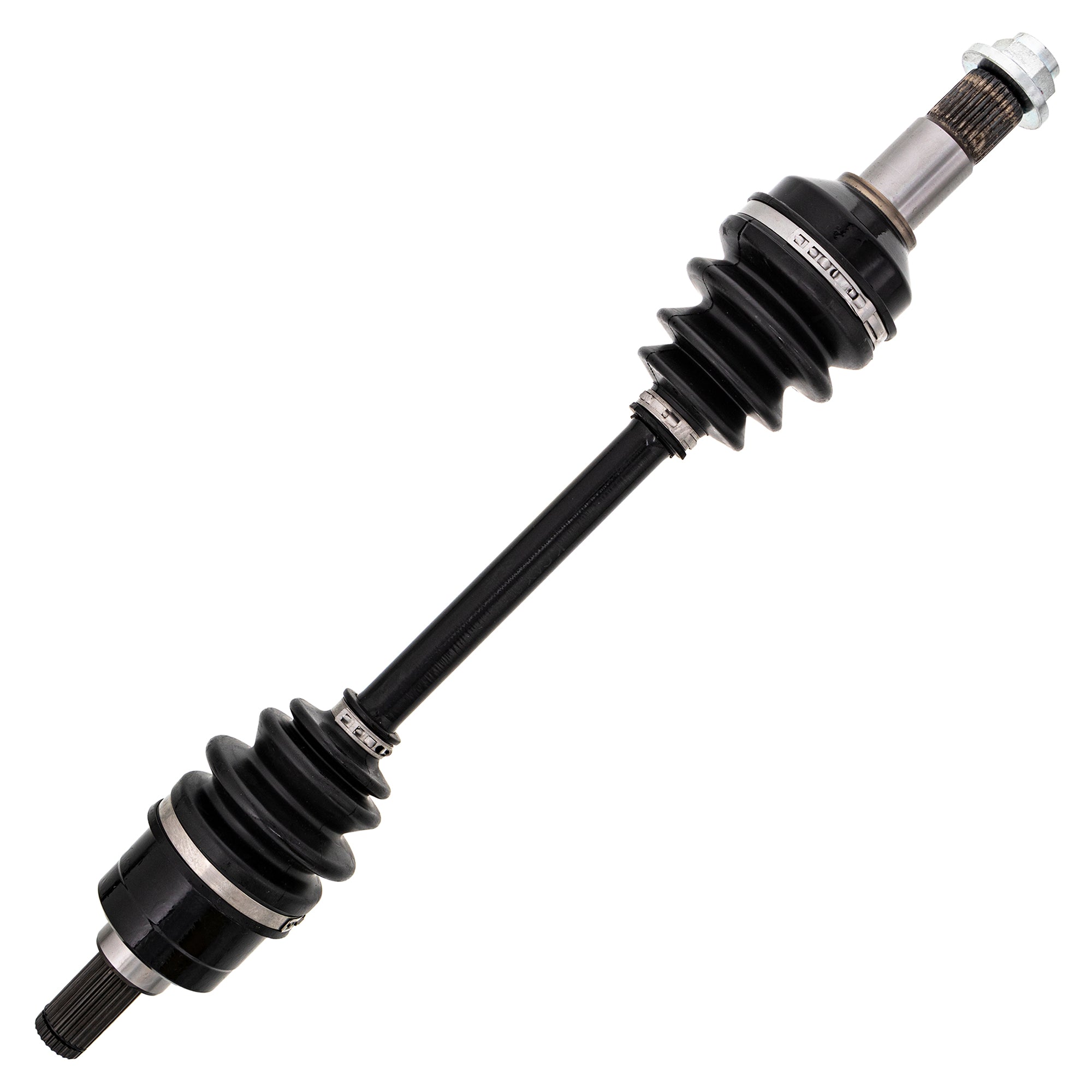

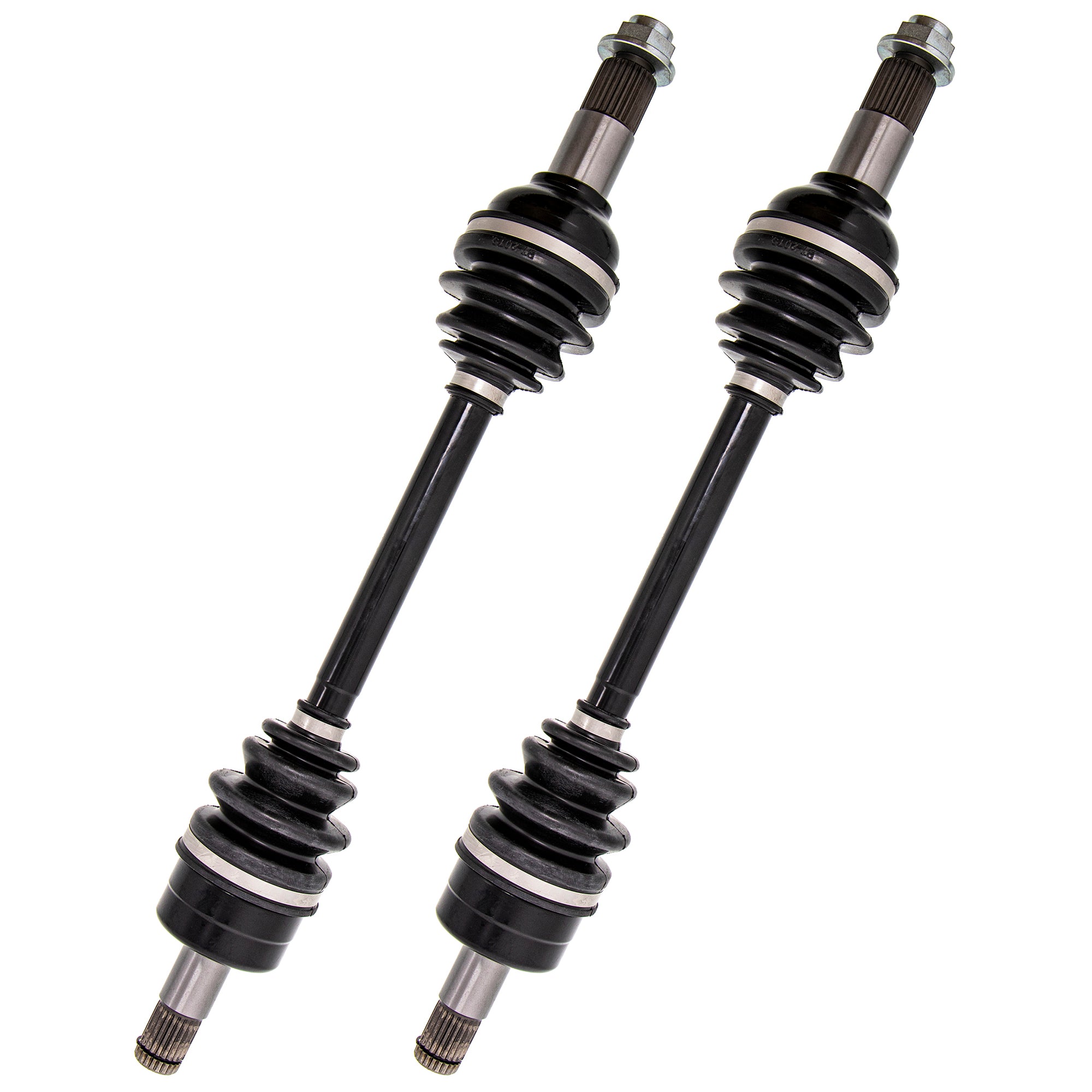

High Strength CV Axle Drive Shaft Set For Yamaha MK1002366

MK1002366 High Strength CV Axle Drive Shaft Set Product Info:

• Front Compressed Length 20, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 7/8, Thread Measurement M20x1.5
• Rear Compressed Length 20 13/16, Inboard Splines 23T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 3/4, Thread Measurement M20X1.5

Included in This Kit:

(QTY 2) NICHE 519-KCA2236X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 3B4-2530V-00-00, 28P-2530V-01-00

(QTY 2) NICHE 519-KCA2369X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 3B4-2510J-00-00

Compatible with the Following Vehicles:

Yamaha Grizzly 700 Special Edition FI 4X4: 2007
Yamaha Grizzly 700 Outdoorsman Edition FI 4X4: 2007
Yamaha Grizzly 700 Hunter Edition FI 4X4: 2007-2008
Yamaha Grizzly 700 FI EPS 4X4: 2007-2008
Yamaha Grizzly 700 FI 4X4: 2007-2008
Yamaha Grizzly 700 Exploring Edition FI 4X4: 2007
Yamaha Grizzly 700 Ducks Unlimited Edition FI 4X4: 2007-2008
