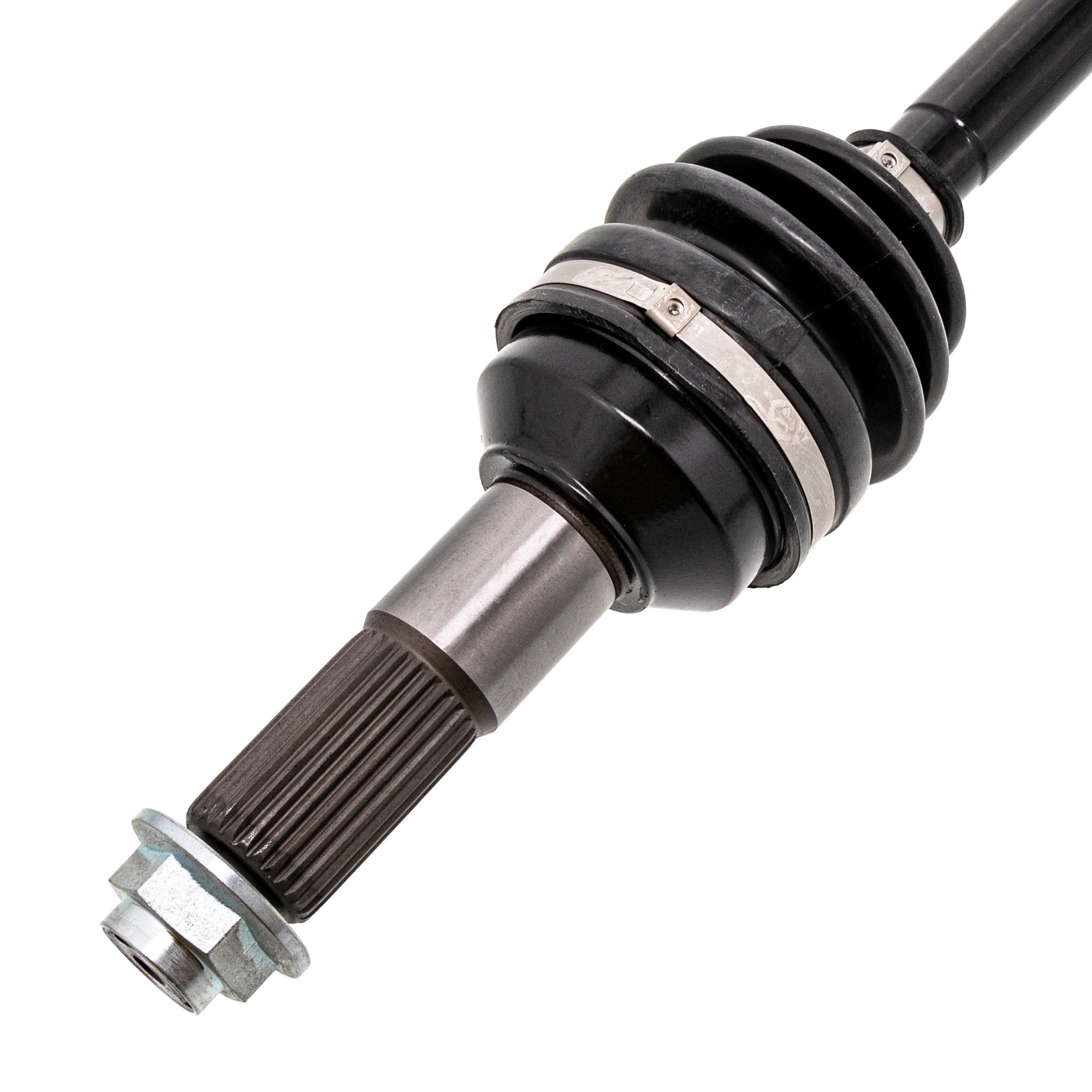

High Strength CV Axle Drive Shaft Set For Yamaha MK1002364

MK1002364 High Strength CV Axle Drive Shaft Set Product Info:

• Front Compressed Length 19 1/2, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 13/16, Thread Measurement M16x1.5
• Rear Compressed Length 20 3/16, Inboard Splines 39T, Inboard Spline Diameter 2 9/16, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 3/4, Thread Measurement M20x1.5

Included in This Kit:

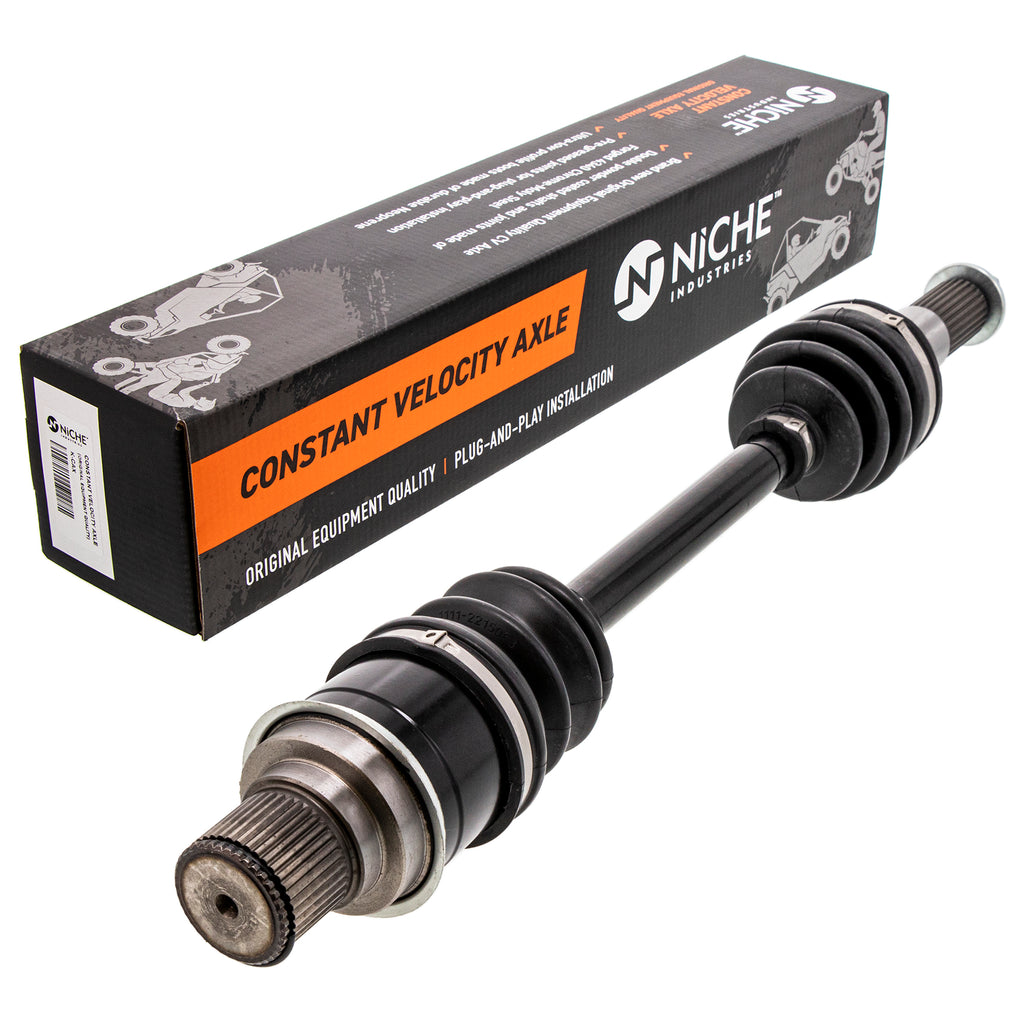

(QTY 2) NICHE 519-KCA2346X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 4S2-2530U-00-00, 4S1-2530V-00-00, 1D9-F510J-01-00, 1D9-F510F-00-00

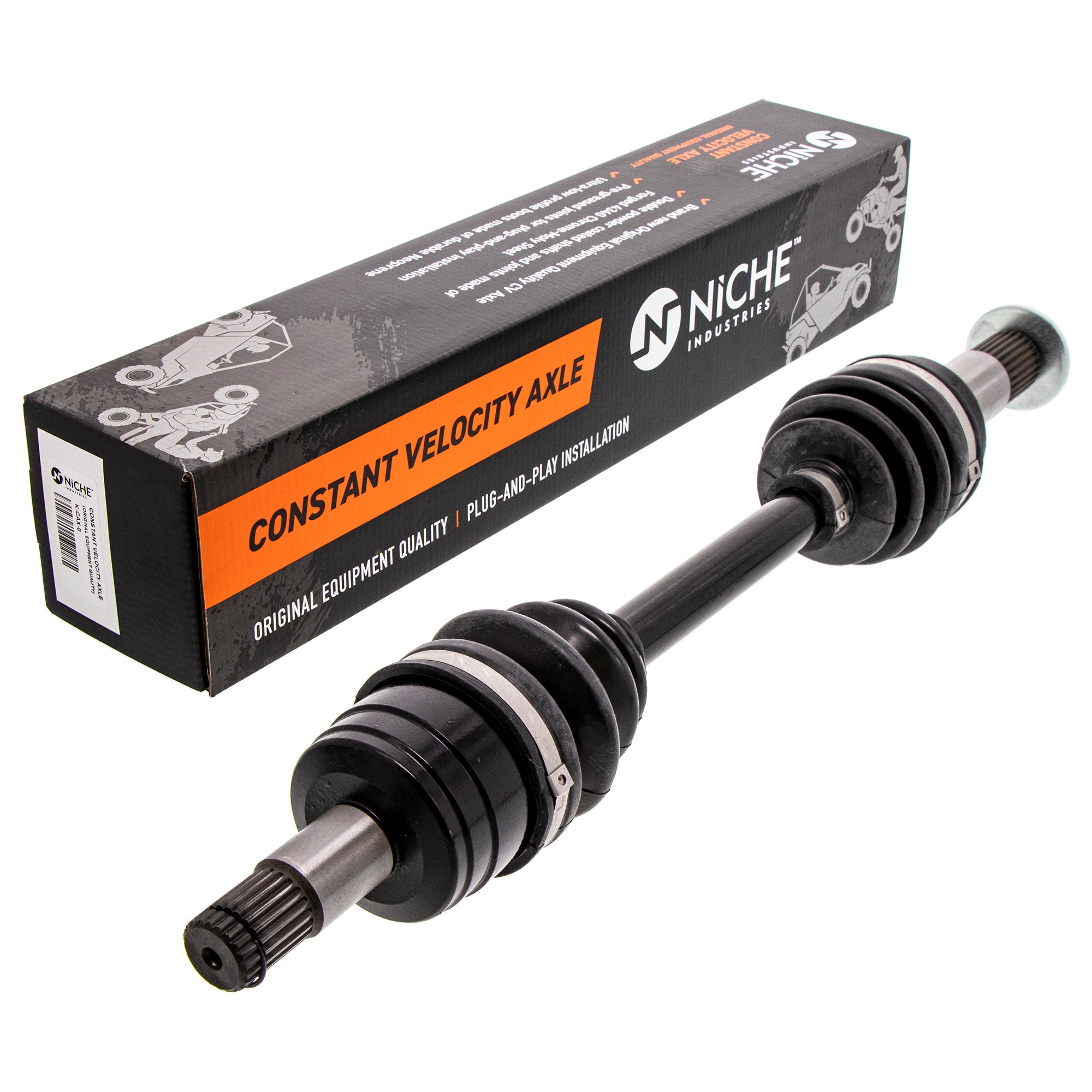

(QTY 2) NICHE 519-KCA2340X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5TE-F518F-00-00

Compatible with the Following Vehicles:

Yamaha Kodiak 450 Special Edition 4X4: 2005-2006
Yamaha Kodiak 450 Hunter Outdoorsman Edition 4X4: 2006
Yamaha Kodiak 450 Hunter Edition 4X4: 2005
Yamaha Kodiak 450 4X4: 2005-2006
Yamaha Kodiak 400 Hunter Edition 4X4: 2005-2006
Yamaha Kodiak 400 4X4: 2005-2006
Yamaha Grizzly 400 Hunter Edition 4X4: 2007-2008
Yamaha Grizzly 400 4X4: 2007-2008
Yamaha Grizzly 350 IRS 4X4: 2007-2008
Yamaha Grizzly 350 Hunter Edition IRS 4X4: 2007-2008
