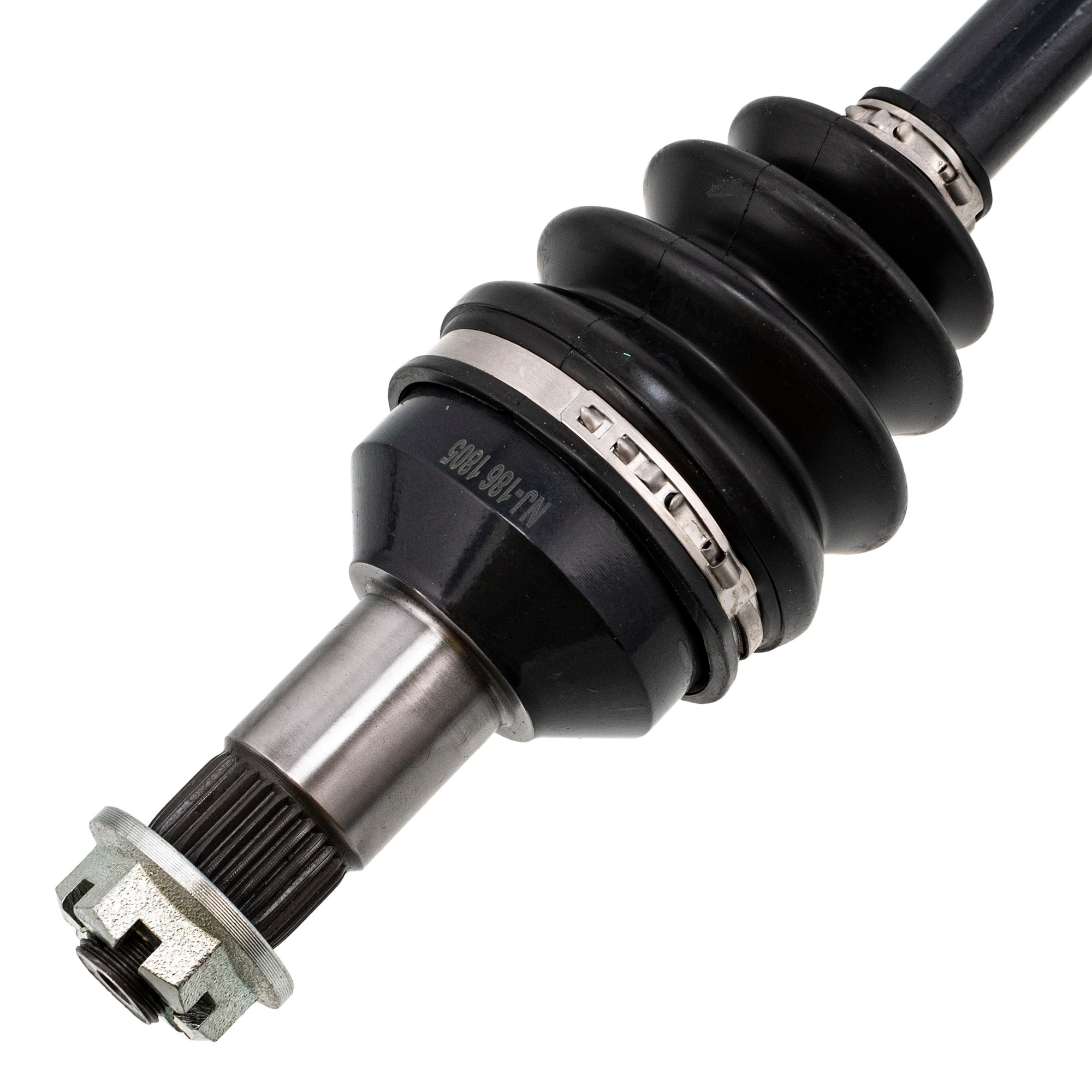

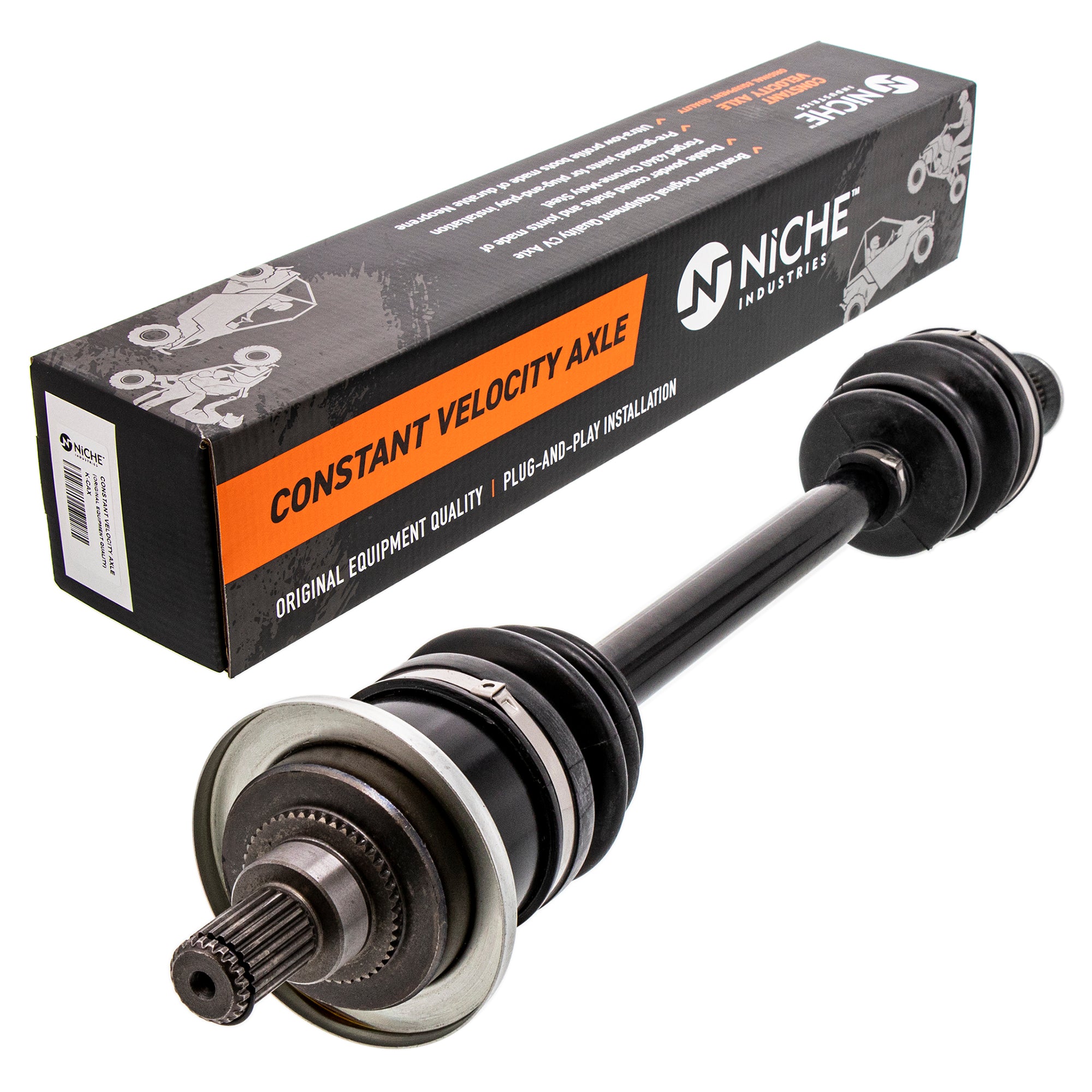

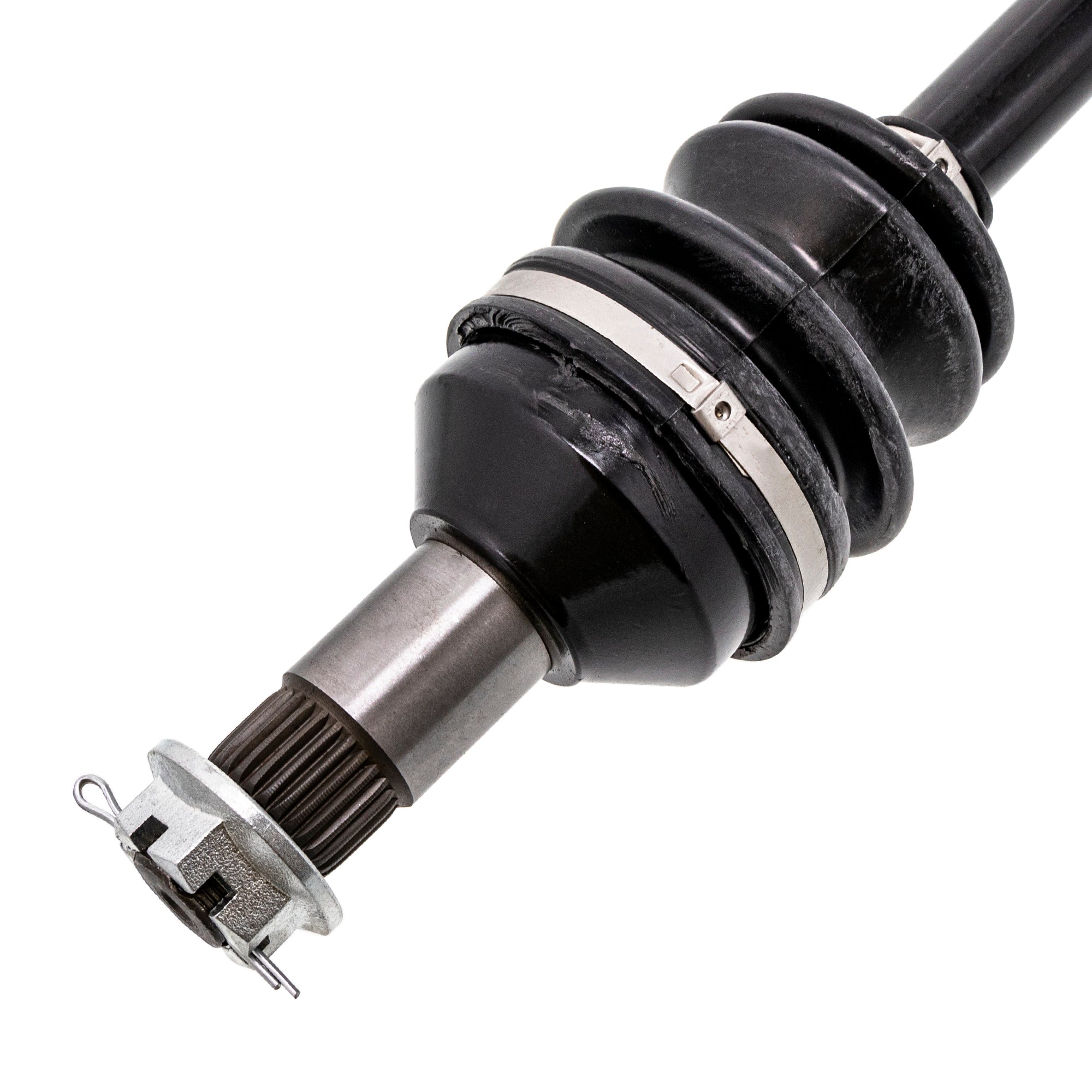

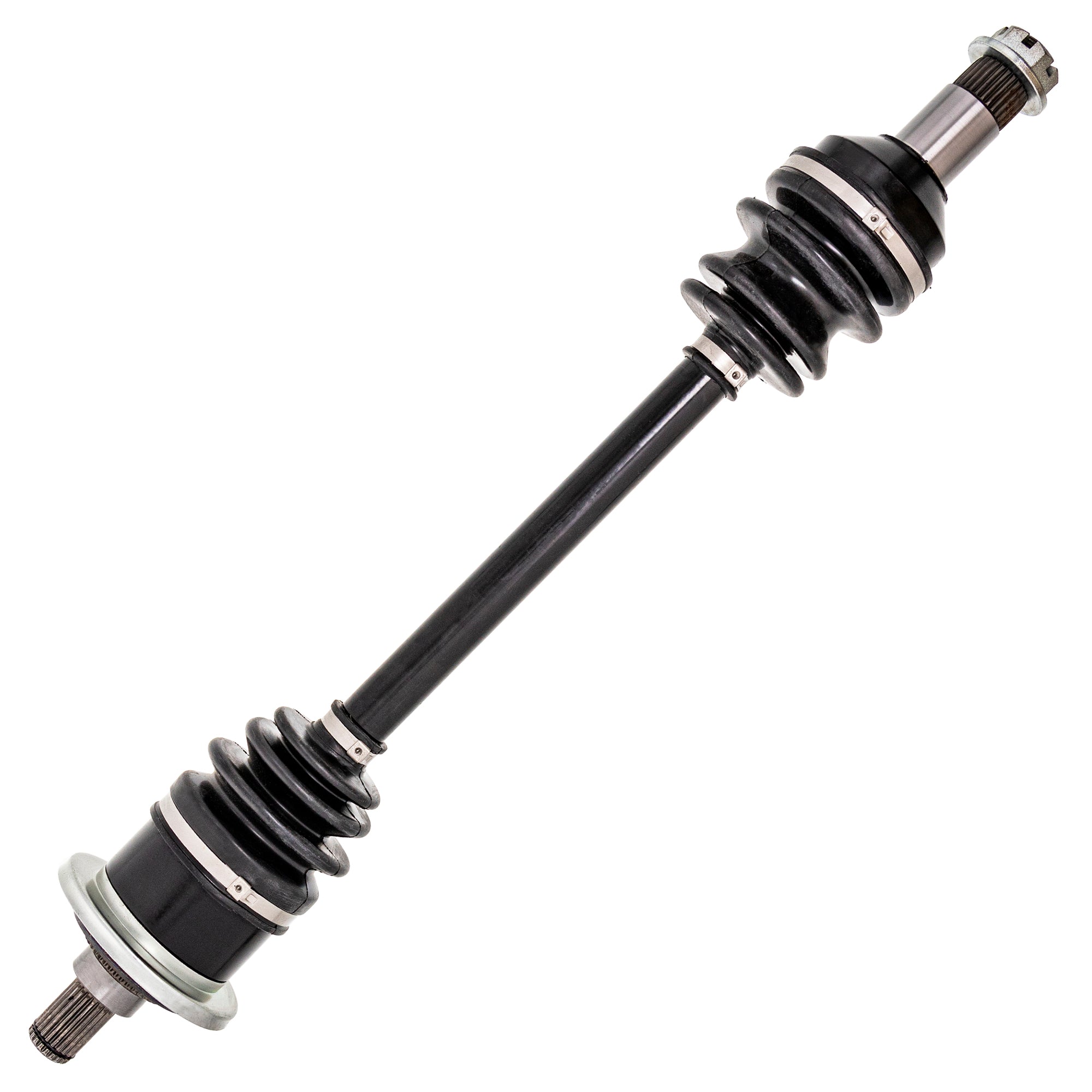

High Strength CV Axle Drive Shaft Set For Arctic Cat MK1002363

MK1002363 High Strength CV Axle Drive Shaft Set Product Info:

• Front Left Compressed Length 21 11/16, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 7/8, Thread Measurement M18x1.5
• Front Right Compressed Length 21 5/8, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 7/16, Shaft Diameter 7/8, Thread Measurement M18x1.5
• Rear Compressed Length 21 1/2, Inboard Splines 27T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M22x1.5

Included in This Kit:

(QTY 1) NICHE 519-KCA2326X Front Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-539, 1502-533, 0502-542

(QTY 2) NICHE 519-KCA2331X Rear Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-941, 1502-866, 1502-804, 1502-723, 1502-330, 0502-596

(QTY 1) NICHE 519-KCA2379X Front Left Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 0502-547

Compatible with the Following Vehicles:

Arctic Cat 650 V2 Limited: 2005
Arctic Cat 650 V2: 2005
Arctic Cat 650 H1 Limited: 2005
Arctic Cat 650 H1: 2005
Arctic Cat 500 TRV Automatic: 2005
Arctic Cat 500 TBX Automatic: 2005
Arctic Cat 500 Automatic Limited: 2005
Arctic Cat 500 Automatic: 2005
Arctic Cat 500: 2005
Arctic Cat 400 TBX Automatic: 2005
Arctic Cat 400 Limited Automatic: 2005
Arctic Cat 400 Automatic: 2005
Arctic Cat 400: 2005
