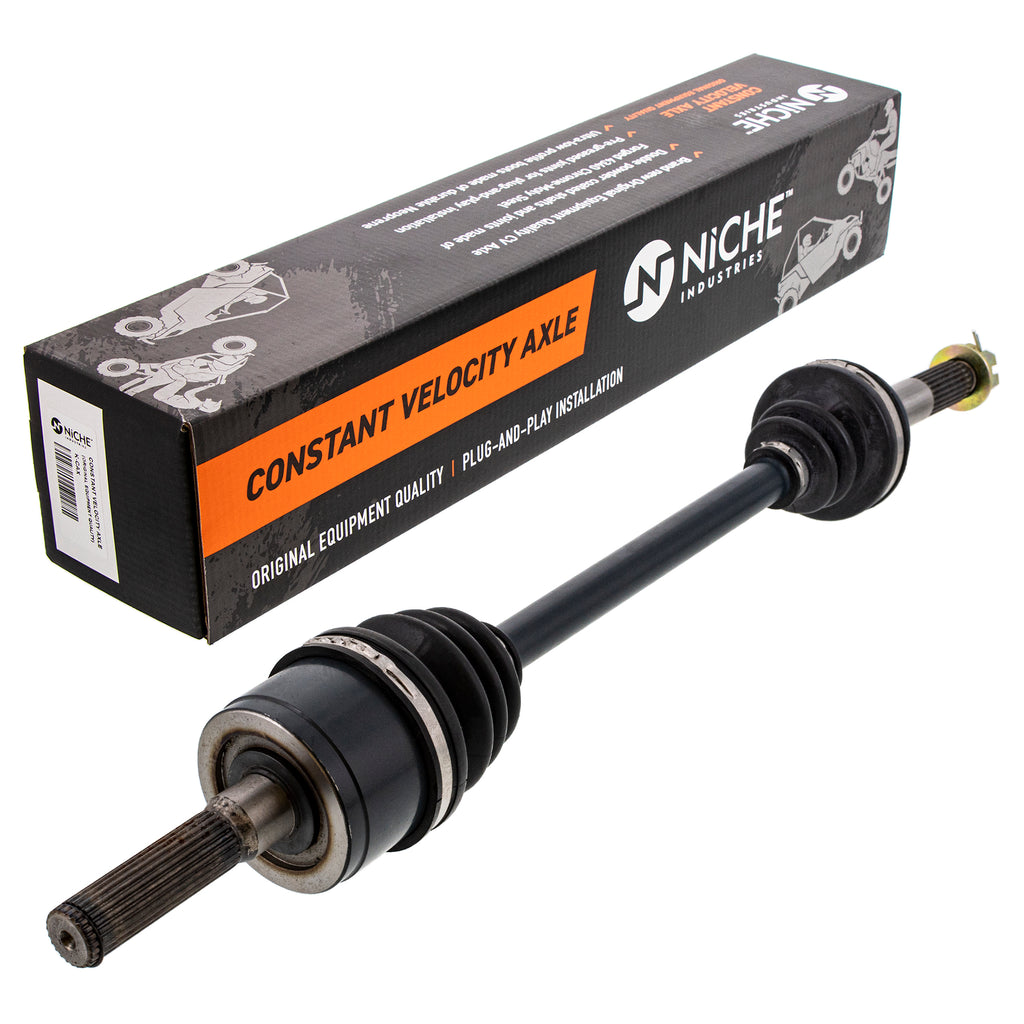

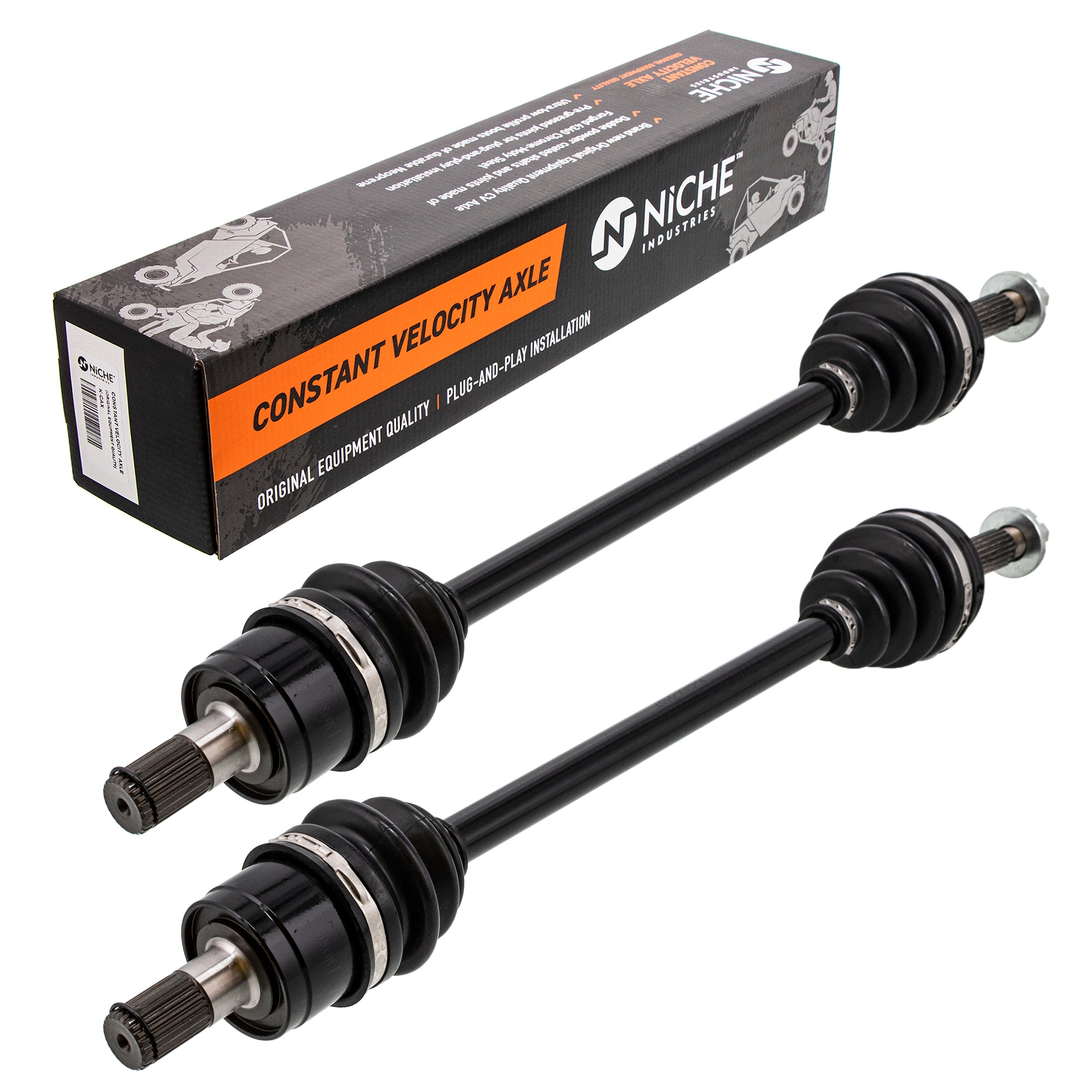

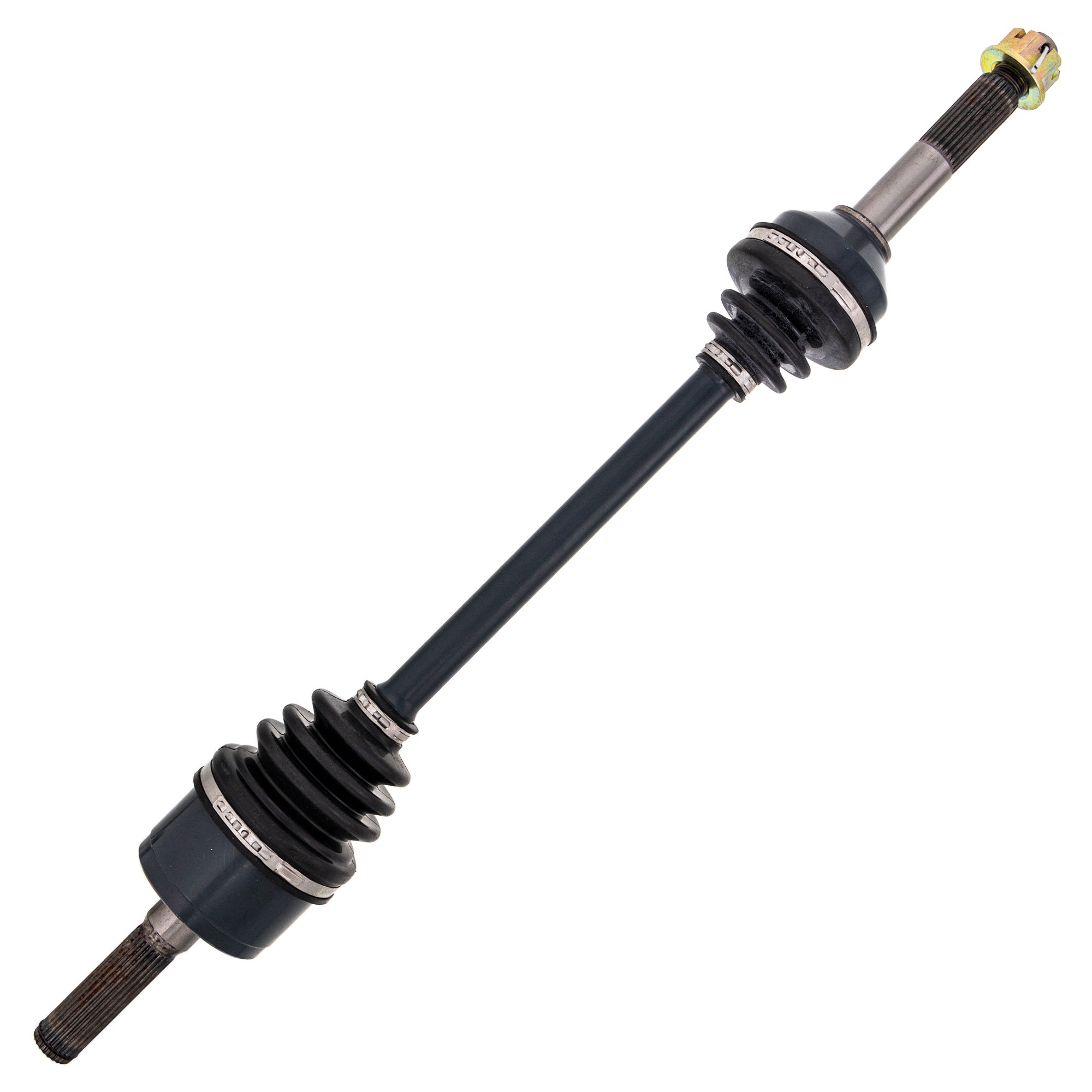

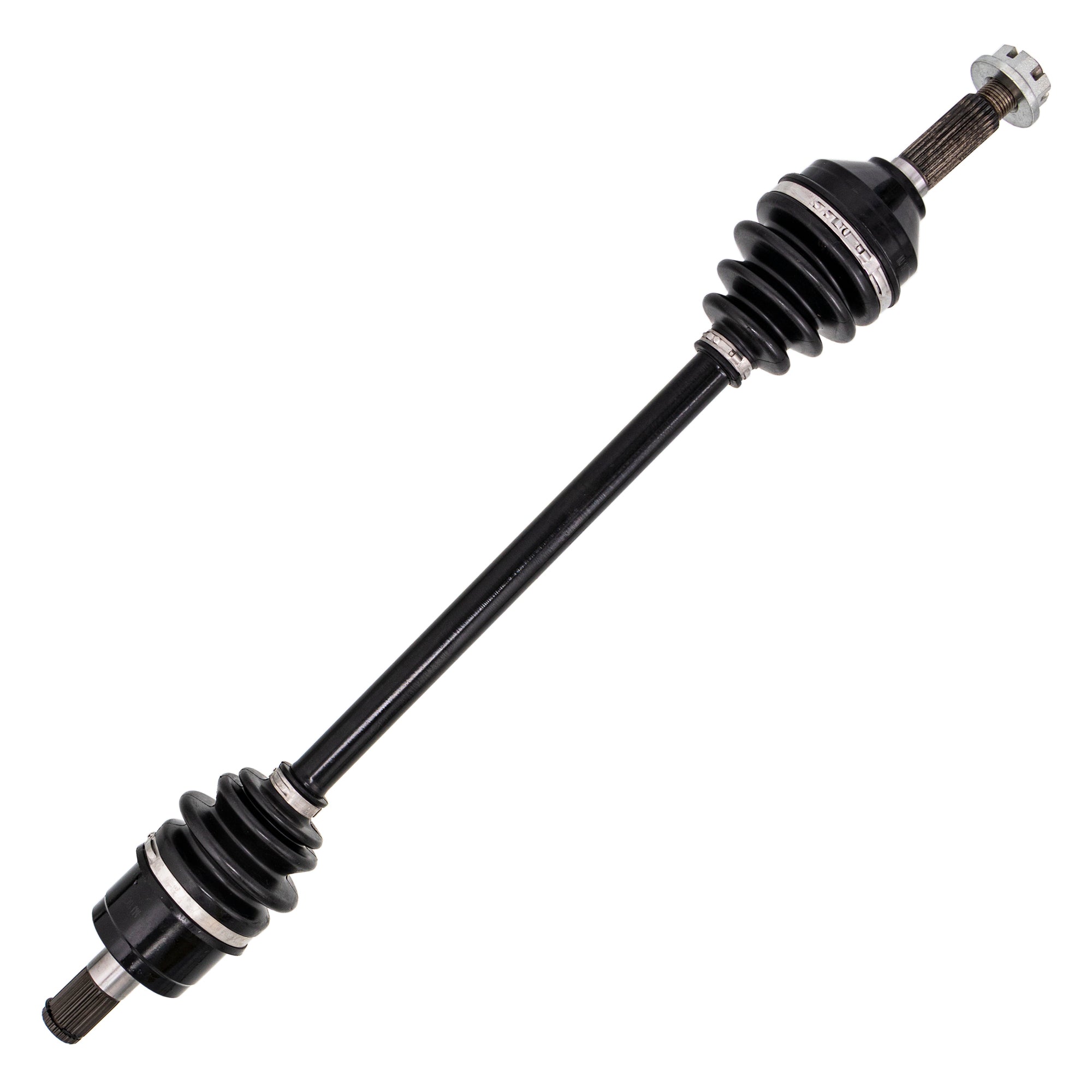

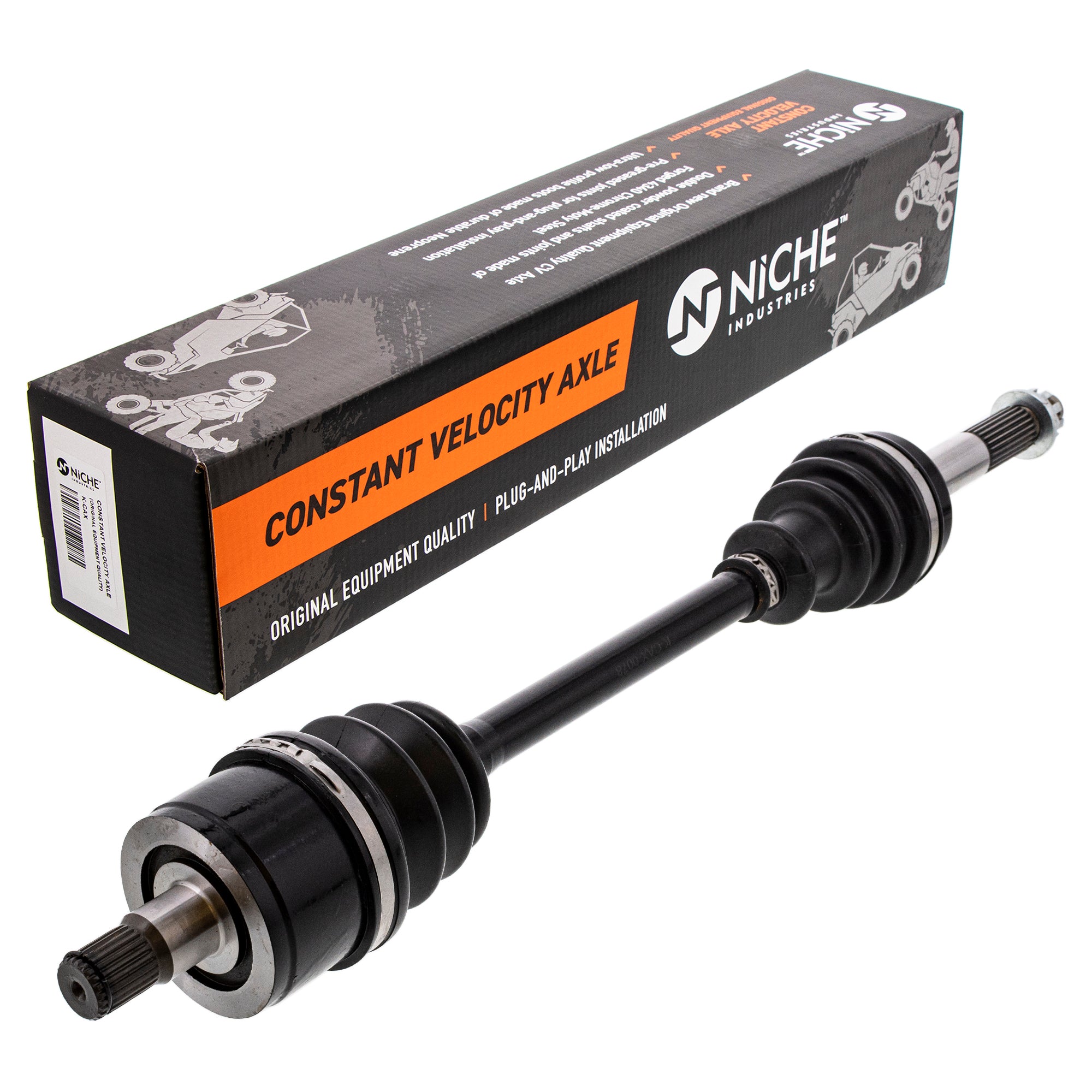

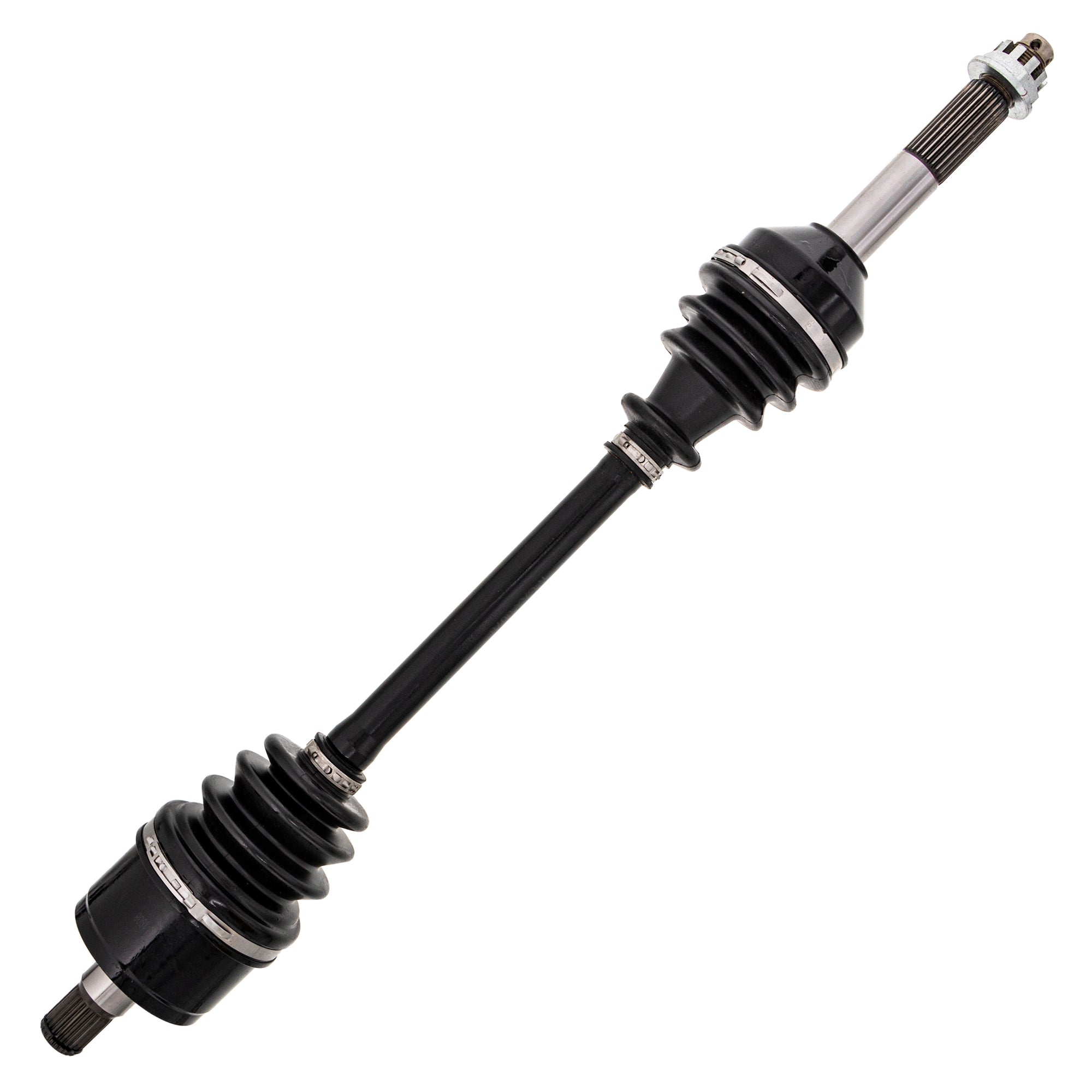

Front & Rear CV Axle Set For Kawasaki MK1001454

MK1001454 Front & Rear CV Axle Set Product Info:

• Compatible with Kawasaki 2008-2011 Teryx 750
• Front Compressed Length 25 3/8, Inboard Splines 24T, Inboard Spline Diameter 2 1/2, Outboard Splines 22T, Outboard Spline Diameter 2 13/16, Shaft Diameter 13/16, Thread Measurement M18x1.5
• Rear Left Compressed Length 27 11/16, Inboard Splines 24T, Inboard Spline Diameter 3 1/4, Outboard Splines 24T, Outboard Spline Diameter 2 7/8, Shaft Diameter 15/16, Thread Measurement M20x1.5
• Rear Right Compressed Length 25 5/8, Inboard Splines 24T, Inboard Spline Diameter 3 1/4, Outboard Splines 24T, Outboard Spline Diameter 2 7/8, Shaft Diameter 13/16, Thread Measurement M20x1.5

Included in This Kit:

(QTY 1) NICHE 519-KCA2297X Rear Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0018

(QTY 1) NICHE 519-KCA2290X Rear Right Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0019

(QTY 2) NICHE 519-KCA2329X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0037, 59266-0028

Compatible with the Following Vehicles:

Kawasaki Teryx 750 Sport: 2009
Kawasaki Teryx 750 NRA: 2008-2009
Kawasaki Teryx 750 LE: 2008-2009
Kawasaki Teryx 750 FI Sport: 2009-2011
Kawasaki Teryx 750 FI LE Sport: 2009
Kawasaki Teryx 750 FI LE SGE: 2010-2011
Kawasaki Teryx 750 FI LE: 2008-2011
Kawasaki Teryx 750 FI: 2008-2011
Kawasaki Teryx 750: 2008-2011



WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
