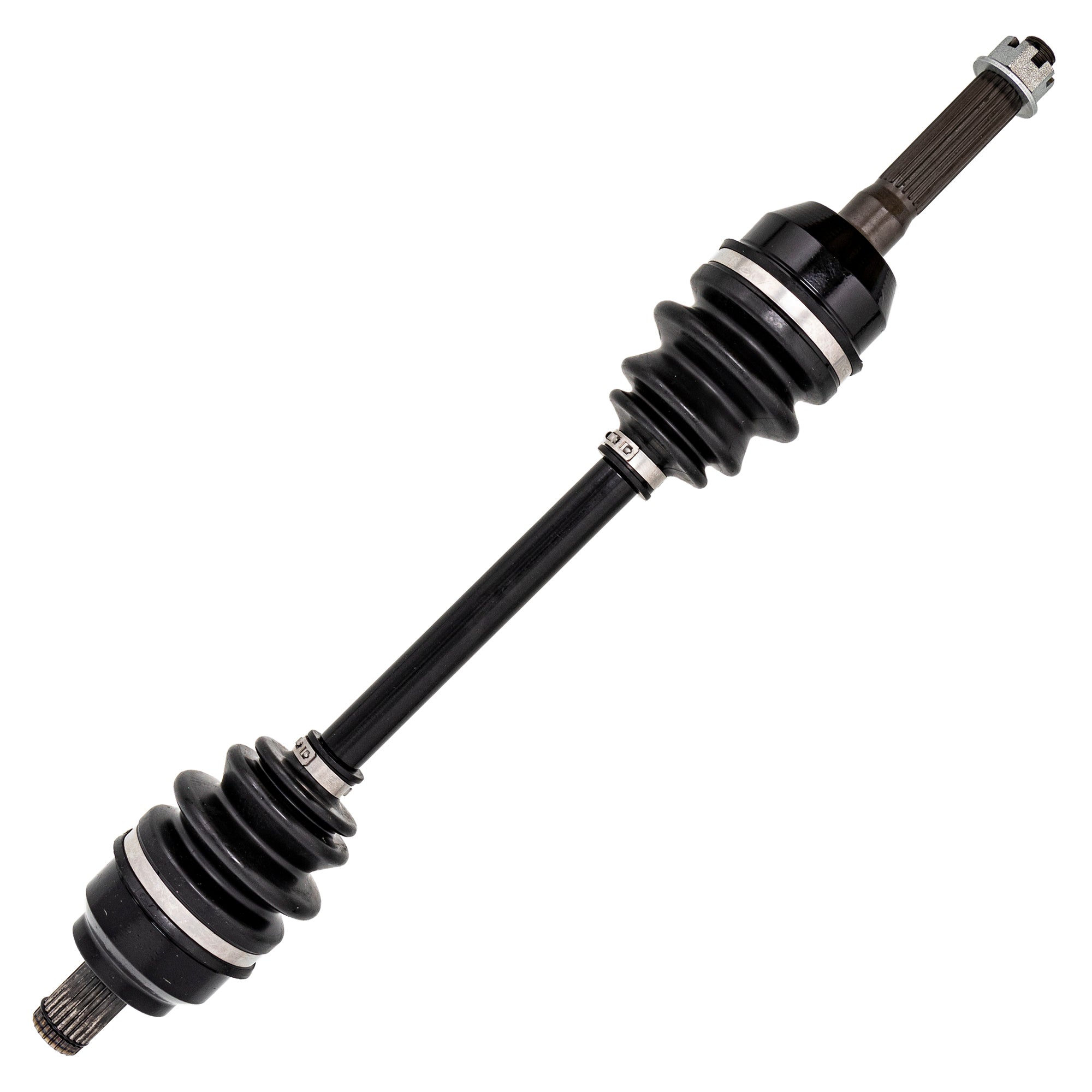

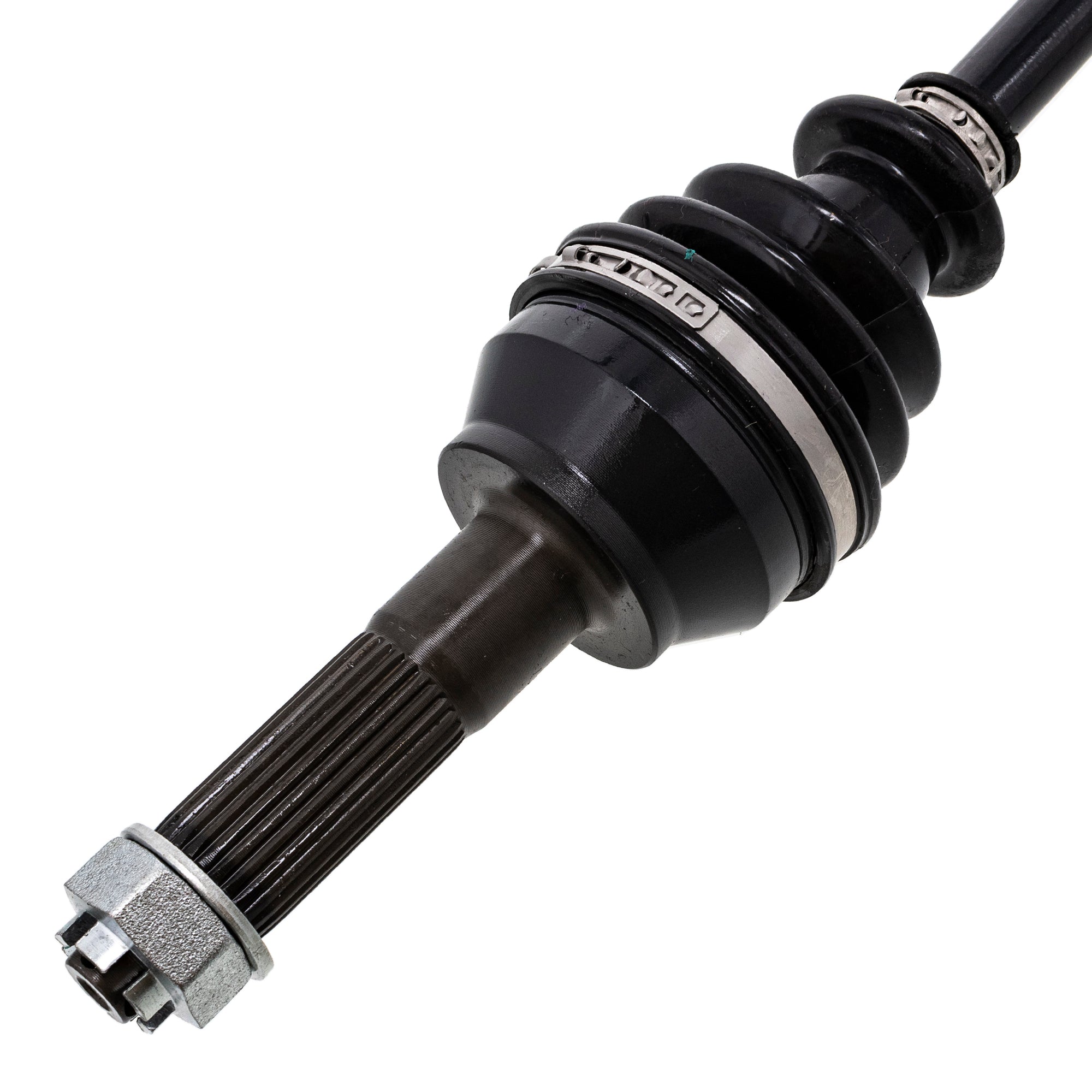

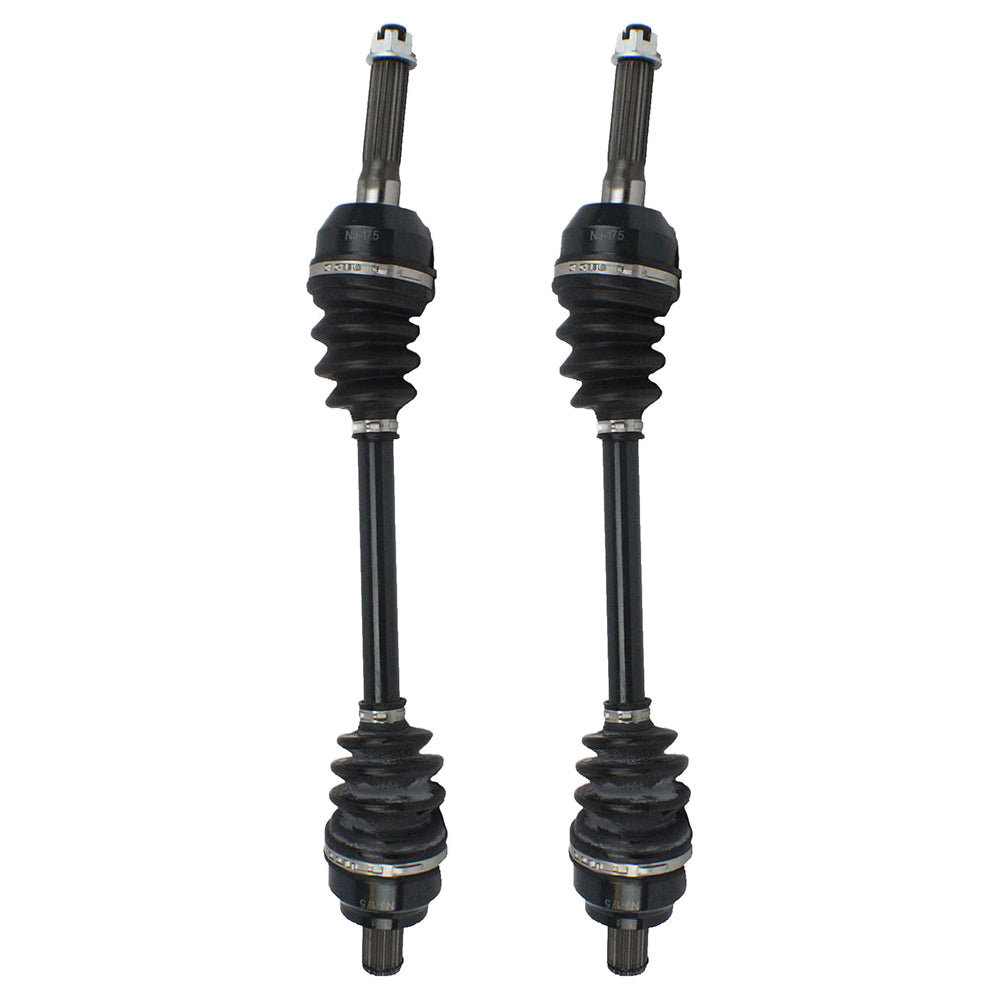

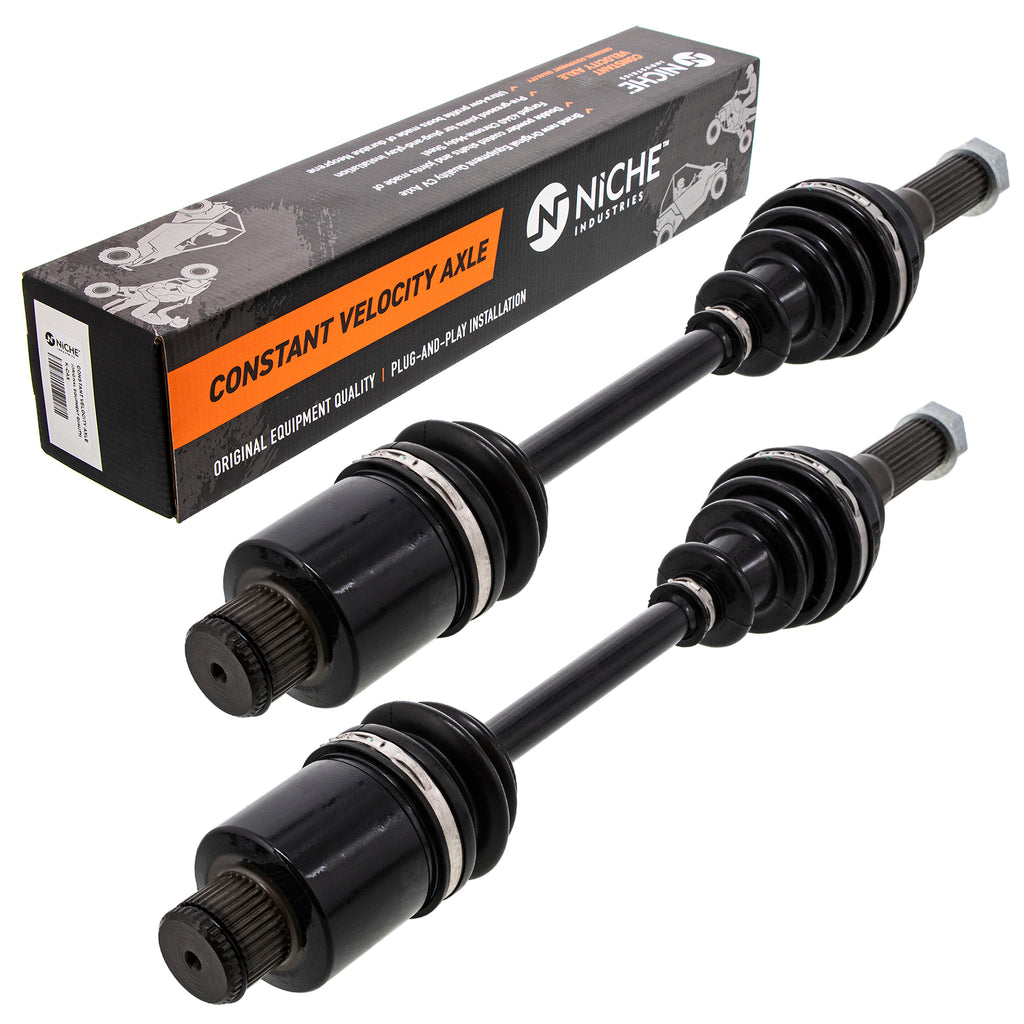

CV Axle Drive Shaft Set (Front & Rear) For Polaris MK1001445

MK1001445 CV Axle Drive Shaft Set (Front & Rear) Product Info:

• Front Compressed Length 21 5/16, Inboard Splines 22T, Inboard Spline Diameter 2 9/16, Outboard Splines 20T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement 5/8x16
• Rear Compressed Length 21 9/16, Inboard Splines 36T, Inboard Spline Diameter 2 3/4, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement M18X1.5

Included in This Kit:

(QTY 2) NICHE 519-KCA2258X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332935, 1332654, 1332511, 1332421

(QTY 2) NICHE 519-KCA2276X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332931

Compatible with the Following Vehicles:

Polaris Sportsman 400 HO: 2013-2014
Polaris Sportsman 500 HO: 2013-2014
Polaris Sportsman 550 EPS: 2014
Polaris Sportsman 570 EPS: 2014
Polaris Sportsman 570: 2014
Polaris Sportsman 800 Military: 2013-2016
Polaris Sportsman 800: 2013-2016
Polaris Sportsman Touring 570: 2014
