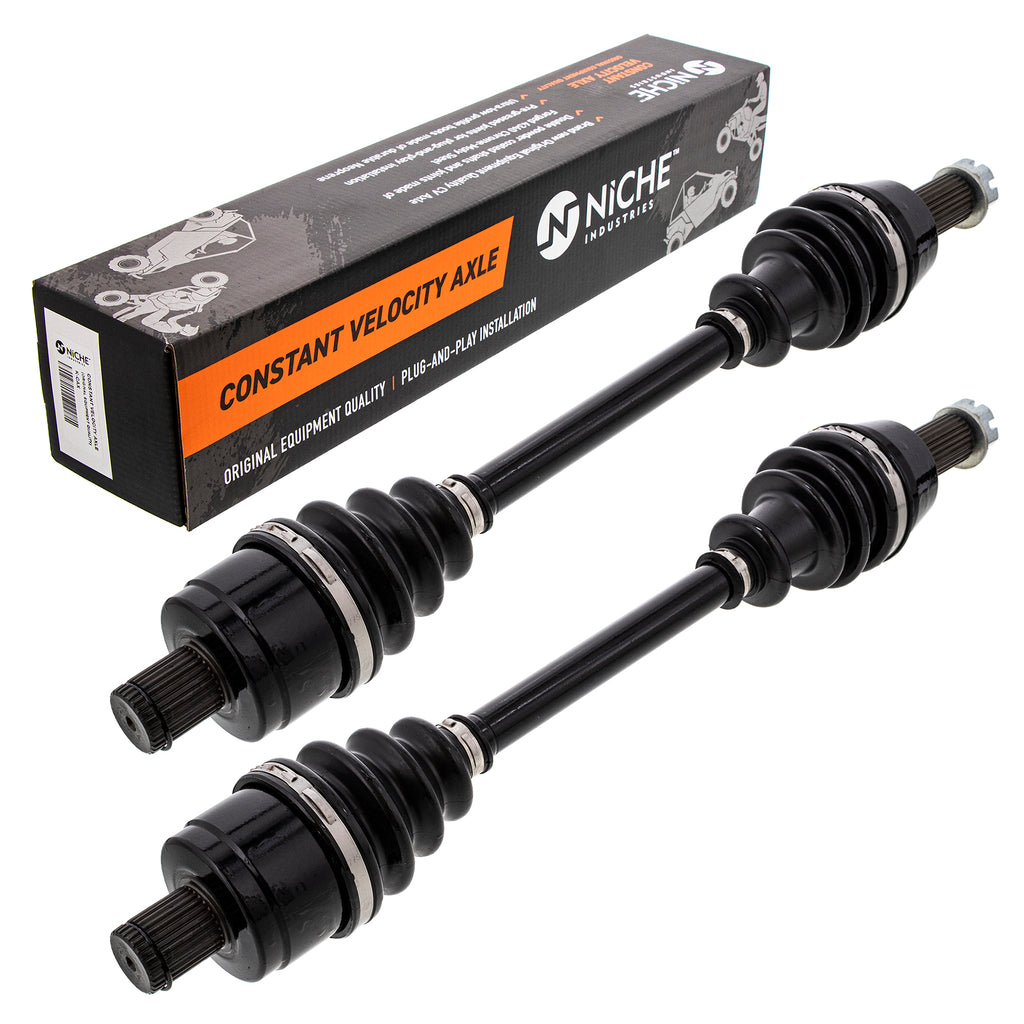

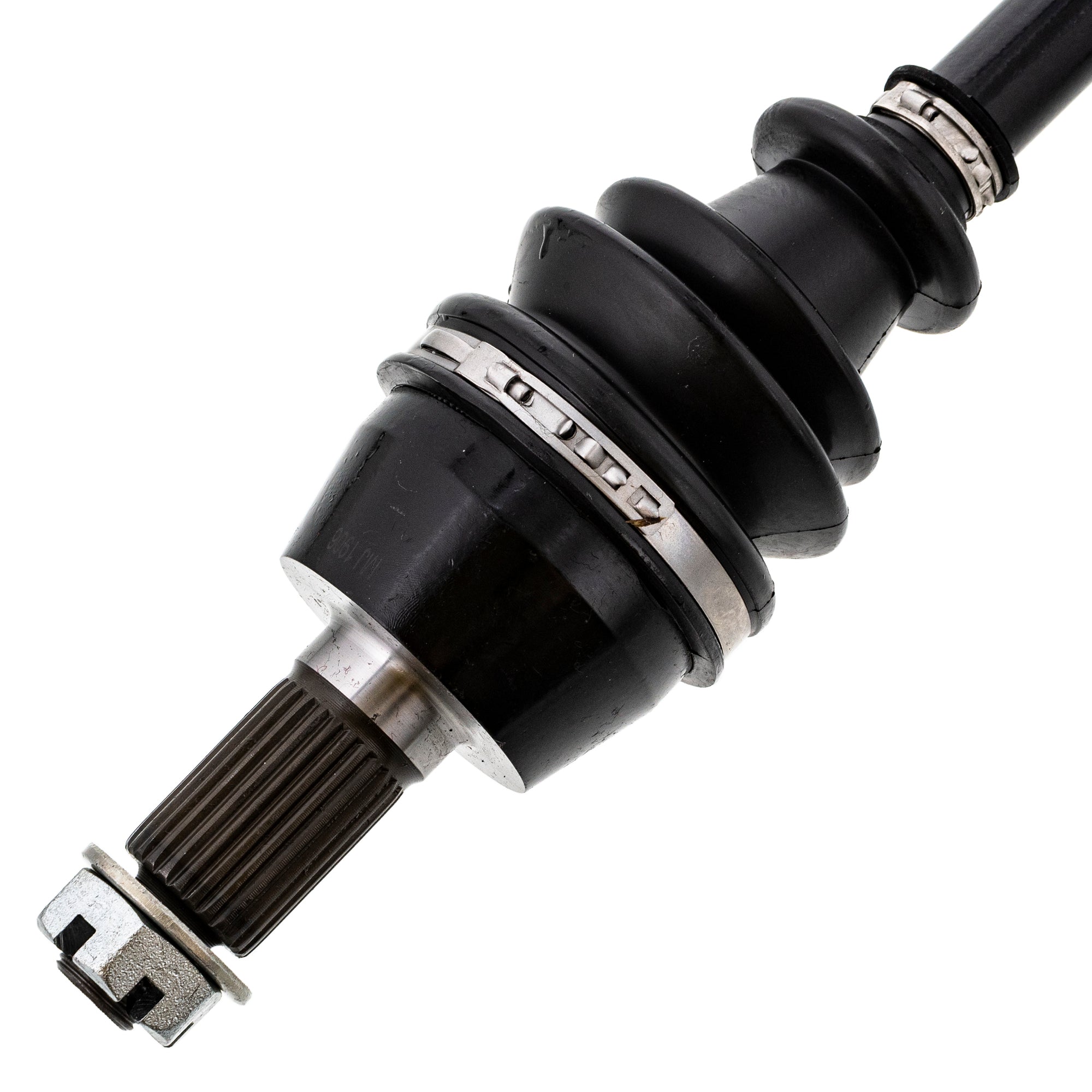

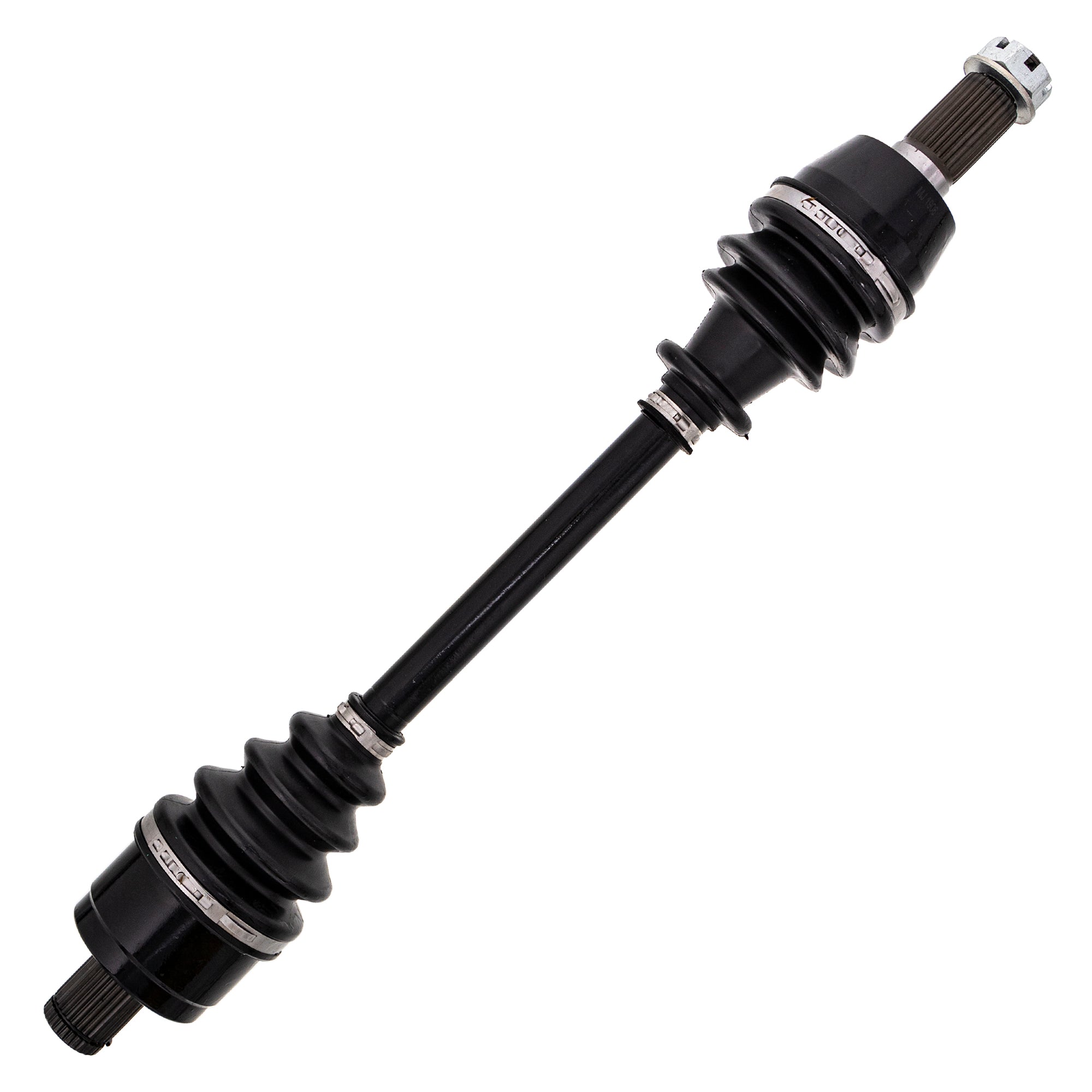

CV Axle Drive Shaft Set (Front & Rear) For Polaris MK1001436

MK1001436 CV Axle Drive Shaft Set (Front & Rear) Product Info:

• Front Compressed Length 21 15/16, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 26T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M18X1.5
• Rear Compressed Length 21 3/4, Inboard Splines 28T, Inboard Spline Diameter 2 7/8, Outboard Splines 26T, Outboard Spline Diameter 2 3/4, Shaft Diameter 7/8, Thread Measurement M18X1.5

Included in This Kit:

(QTY 2) NICHE 519-KCA2249X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332809, 1332642

(QTY 2) NICHE 519-KCA2254X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 2203844, 2203843, 1332873, 1332383

Compatible with the Following Vehicles:

Polaris Sportsman XP Touring 1000 Limited: 2015-2016
Polaris Sportsman XP Touring 1000: 2015-2016
Polaris Sportsman XP 850 HO EPS Limited: 2012-2014
Polaris Sportsman XP 850 HO EPS: 2012-2014
Polaris Sportsman XP 850 HO: 2012-2014
Polaris Sportsman XP 850 EPS: 2010-2011
Polaris Sportsman XP 850: 2010-2014
Polaris Sportsman XP 550 EPS: 2010-2014
Polaris Sportsman XP 550: 2010-2014
Polaris Sportsman XP 1000 Limited: 2015
Polaris Sportsman XP 1000: 2015-2016
Polaris Sportsman X2 850: 2011
Polaris Sportsman X2 550 EPS Limited: 2014
Polaris Sportsman X2 550 EPS: 2014
Polaris Sportsman X2 550: 2010-2014
Polaris Sportsman Touring 850 HO EPS Limited: 2013-2014
Polaris Sportsman Touring 850 HO EPS: 2012-2014
Polaris Sportsman Touring 850 EPS: 2010-2014
Polaris Sportsman Touring 550 EPS: 2010-2014
Polaris Sportsman SP Touring 850: 2015
Polaris Sportsman SP 850: 2015
Polaris Sportsman 850 WV: 2014
Polaris Sportsman 850 MV: 2012-2016
Polaris Sportsman 850: 2011-2016
Polaris Sportsman 550 Limited: 2012-2013
Polaris Sportsman 550 EPS Limited: 2012-2014
Polaris Sportsman 550 EPS: 2010-2014
Polaris Sportsman 550: 2010-2014
Polaris Sportsman 500 HO: 2014
Polaris Scrambler XP 850 HO EPS Limited: 2013-2014
Polaris Scrambler XP 850 HO EPS: 2013-2015
Polaris Scrambler XP 1000: 2014-2016
Polaris Scrambler 850: 2015
