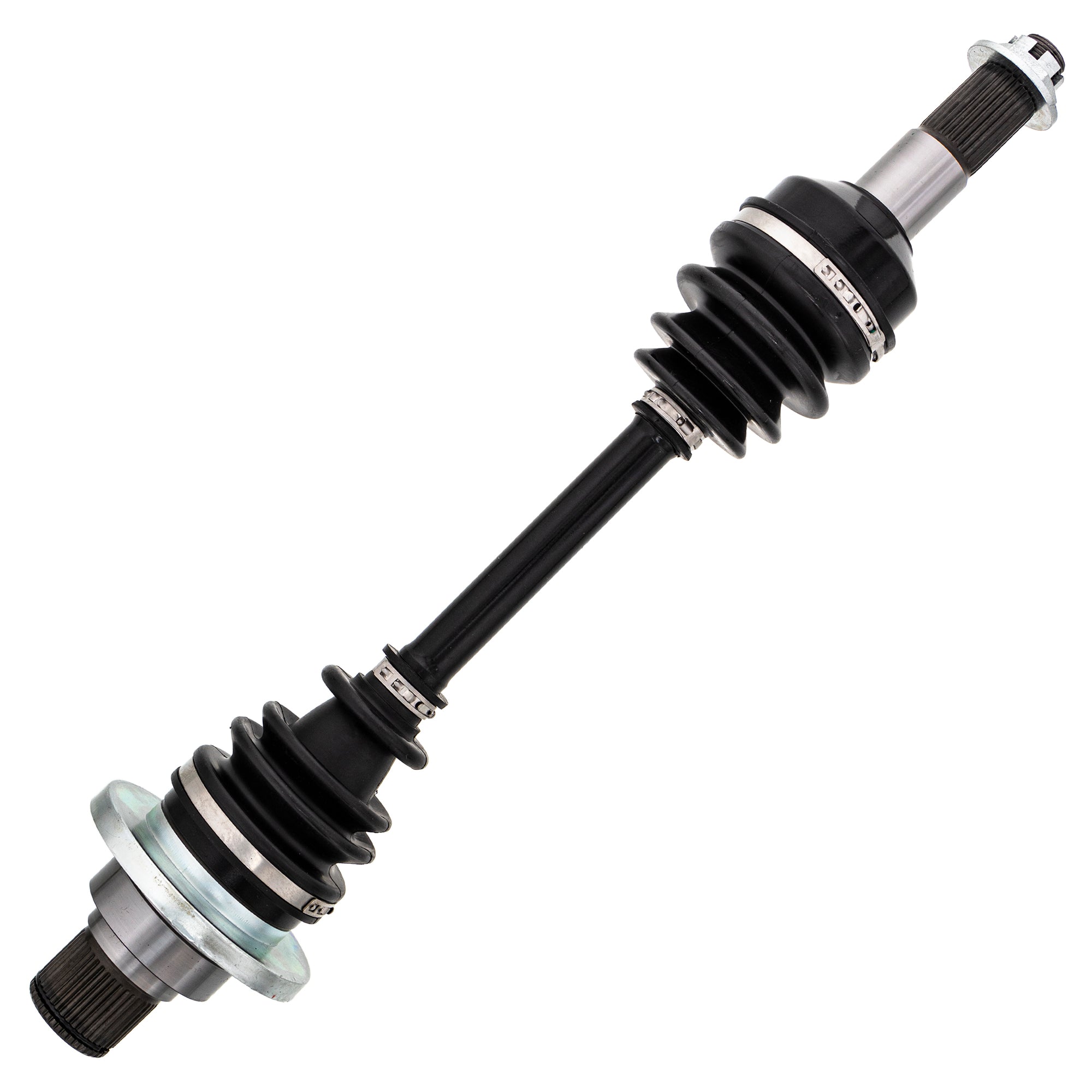

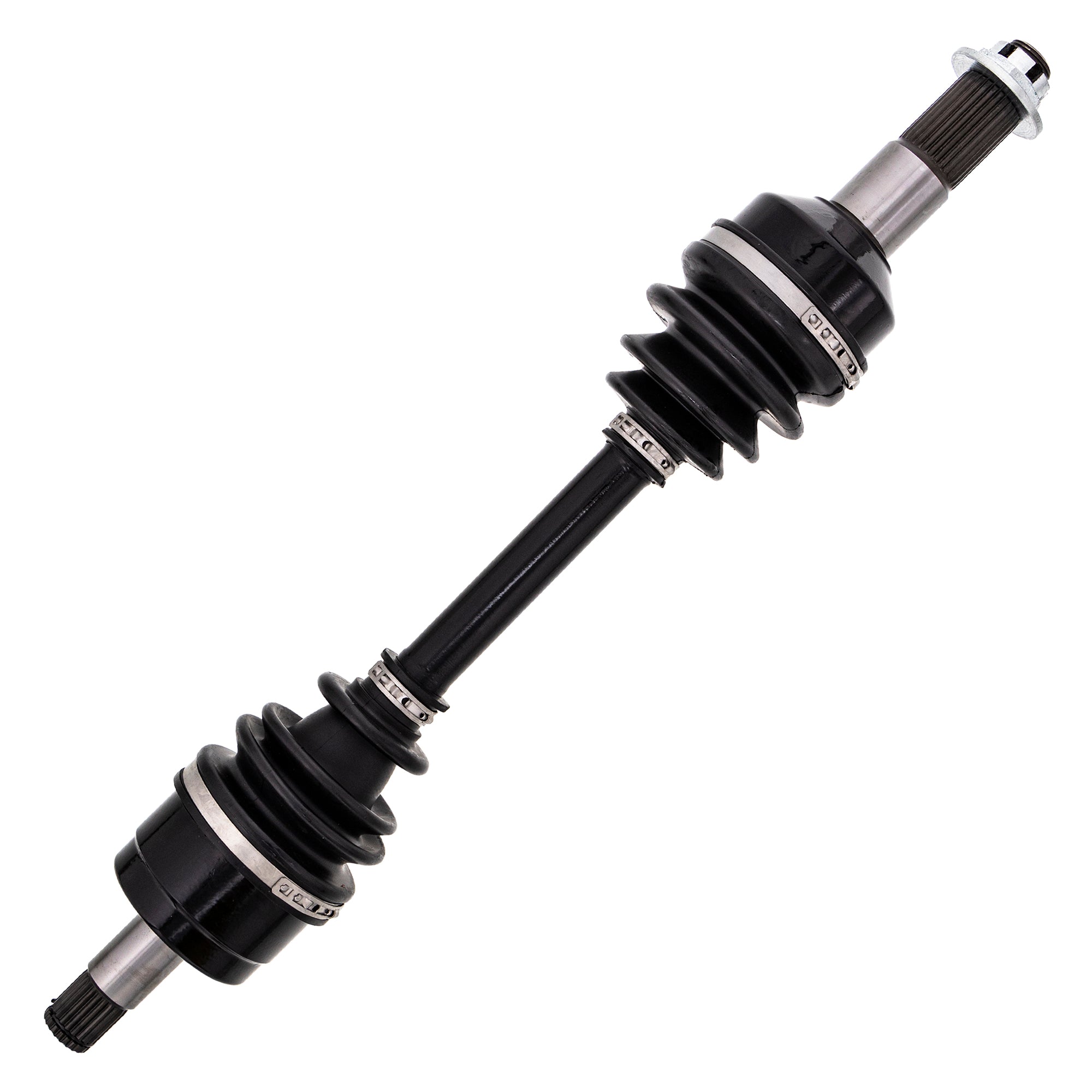

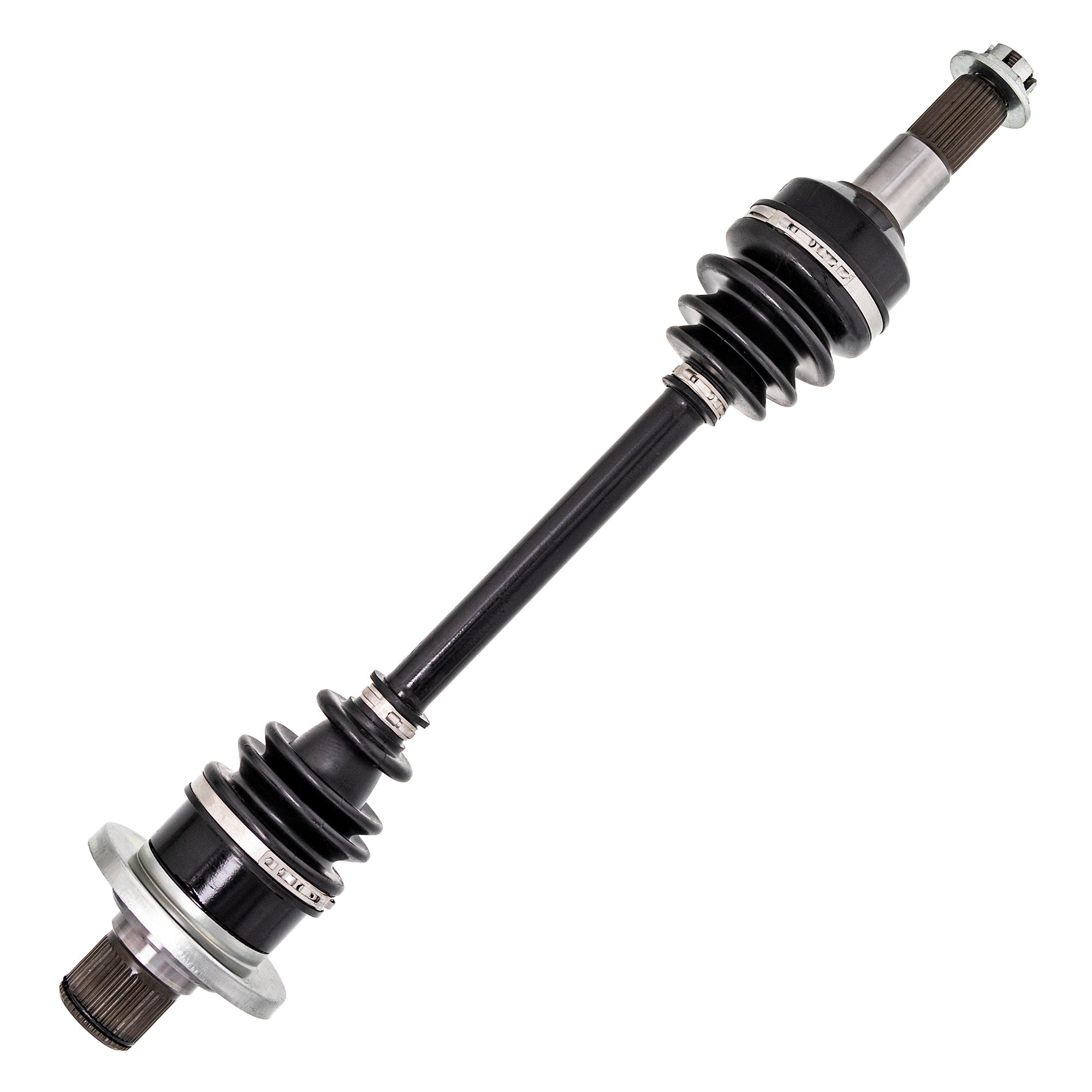

High Strength Front & Rear L&R CV Axle For Yamaha MK1000978

MK1000978 High Strength Front & Rear L&R CV Axle Product Info:

• Rear Right Compressed Length: 19, Inboard Splines: 39T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 27T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 13/16, Thread Measurement: M20x1.5
• Front Right Compressed Length: 19 1/4, Inboard Splines: 21T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 27T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 13/16, Thread Measurement: M20x1.5
• Front Left Compressed Length: 20 7/8, Inboard Splines: 21T, Inboard Spline Diameter: 2 11/16, Outboard Splines: 27T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 13/16, Thread Measurement: M20x1.5

Included in This Kit:

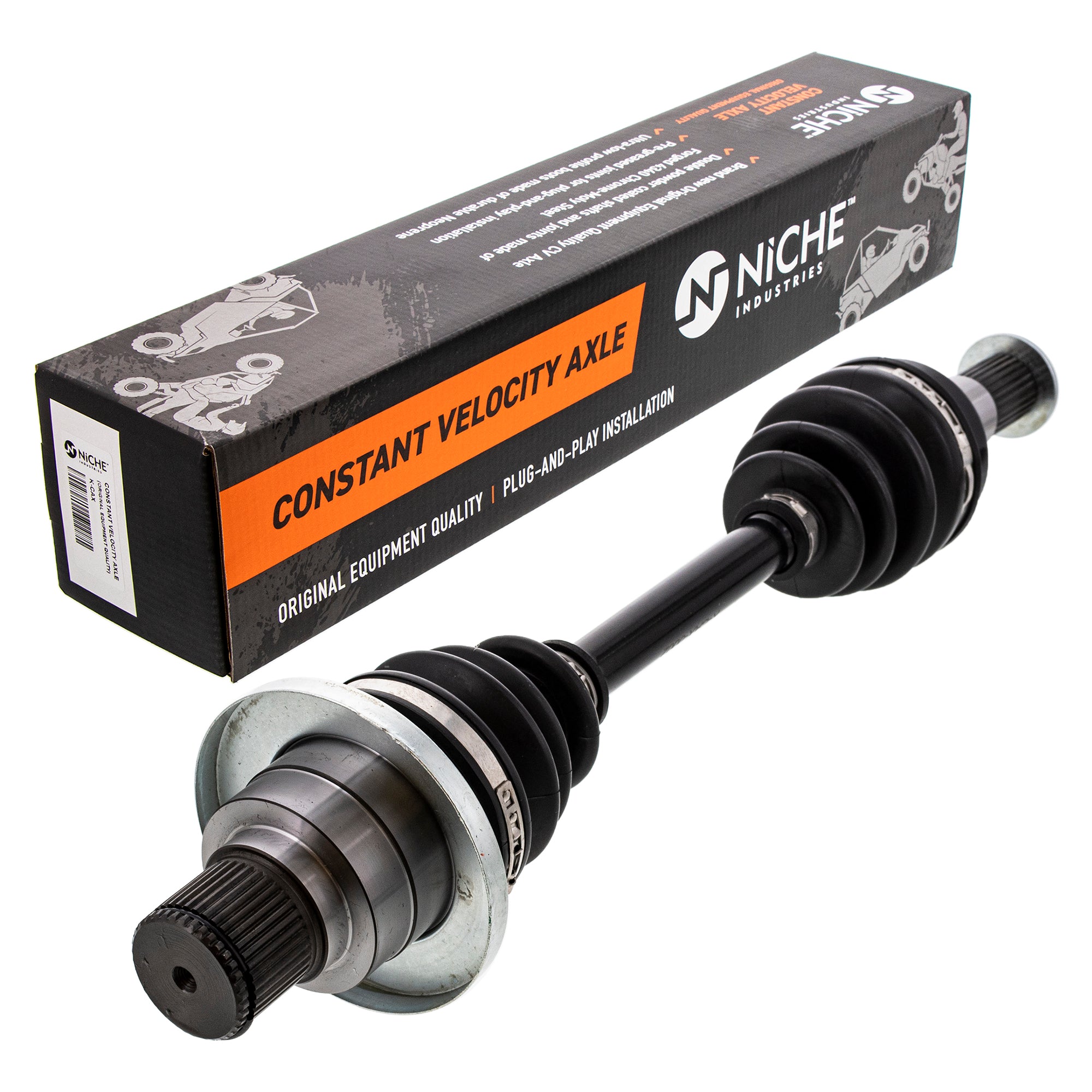

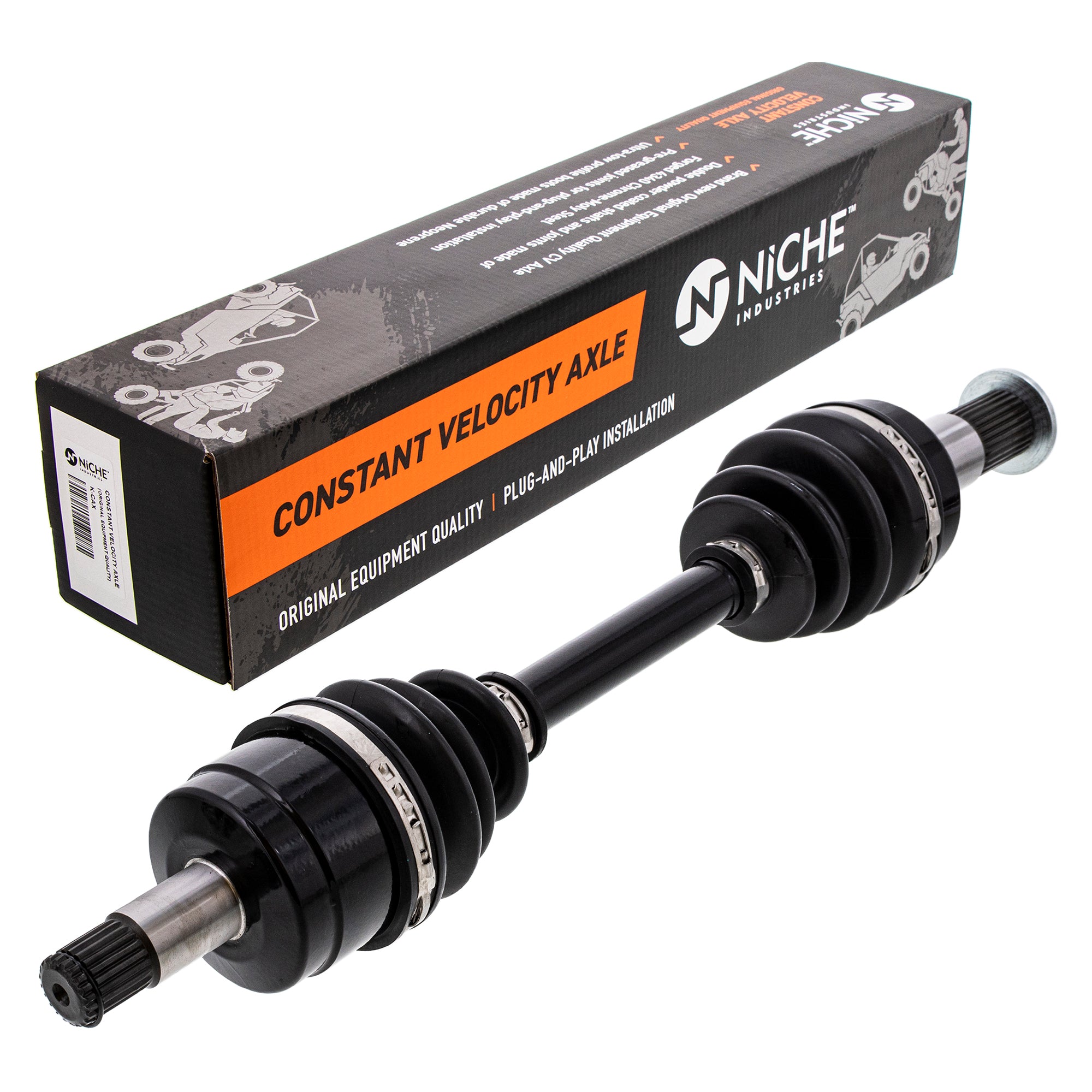

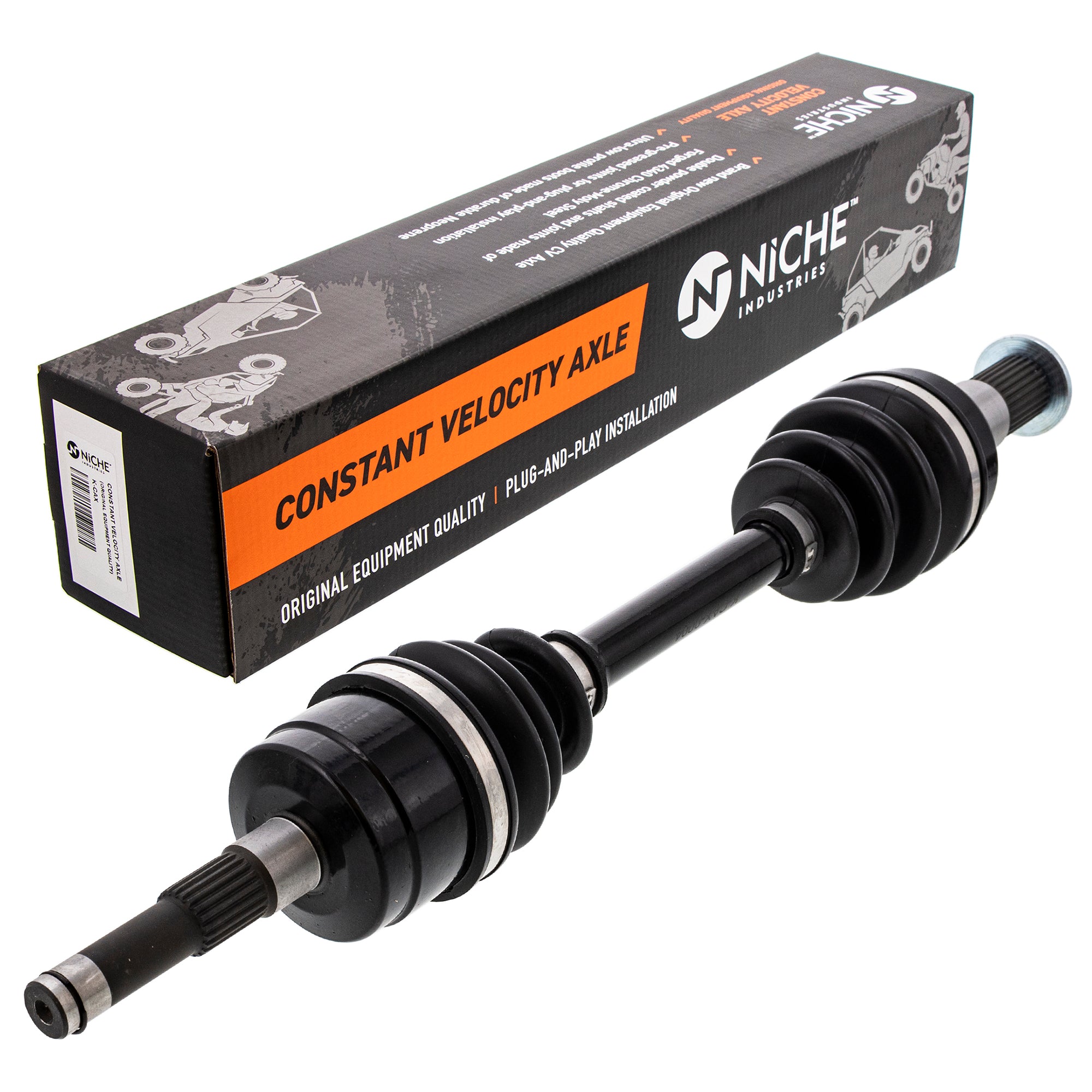

(QTY 1) NICHE 519-KCA2223X High Strength Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5KM-2530W-12-00, 5KM-2530W-11-00, 5KM-2530W-10-00, 5KM-2530U-13-00, 5KM-2530U-12-00, 5KM-2530U-11-00, 5KM-2530U-10-00

(QTY 1) NICHE 519-KCA2224X High Strength CV Axle Drive Shaft

Substitute For OEM Part Numbers(s): 5KM-2530V-12-00, 5KM-2530V-11-00, 5KM-2530V-10-00, 5KM-2530T-13-00, 5KM-2530T-12-00, 5KM-2530T-11-00, 5KM-2530T-10-00

(QTY 1) NICHE 519-KCA2225X High Strength Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5KM-2510F-11-00

(QTY 1) NICHE 519-KCA2226X High-Strength CV Axle

Substitute For OEM Part Numbers(s): 5KM-2510F-11-00

Compatibile with the Following Vehicles:

Yamaha Grizzly 660 YFM660F 4x4 Limited Edition: 2003
Yamaha Grizzly 660 YFM660F 4x4: 2003-2004
Yamaha Grizzly 660 YFM660FA 4x4: 2008
Yamaha Grizzly 660 YFM660FAH 4x4 Hardwoods Hunter Edition: 2006
Yamaha Grizzly 660 YFM660FAH 4x4 Hunter Edition: 2005
Yamaha Grizzly 660 YFM660FAH 4x4 Outdoorsman Edition: 2006
Yamaha Grizzly 660 YFM660FAHD 4x4 Ducks Unlimited Edition: 2006
Yamaha Grizzly 660 YFM660FAHW 4x4 Wetlands Hunter Edition: 2005
Yamaha Grizzly 660 YFM660FASE 4x4 Special Edition: 2005-2006
Yamaha Grizzly 660 YFM660FG 4x4: 2007-2008
Yamaha Grizzly 660 YFM660FGH 4x4 Hunter Edition: 2007-2008
Yamaha Grizzly 660 YFM660FH 4x4 Hardwoods Hunter Edition: 2003-2004
Yamaha Grizzly 660 YFM660FHW 4x4 Wetlands Hunter Edition: 2003-2004
Yamaha Grizzly 660 YFM660FLE 4x4 Limited Edition: 2004
