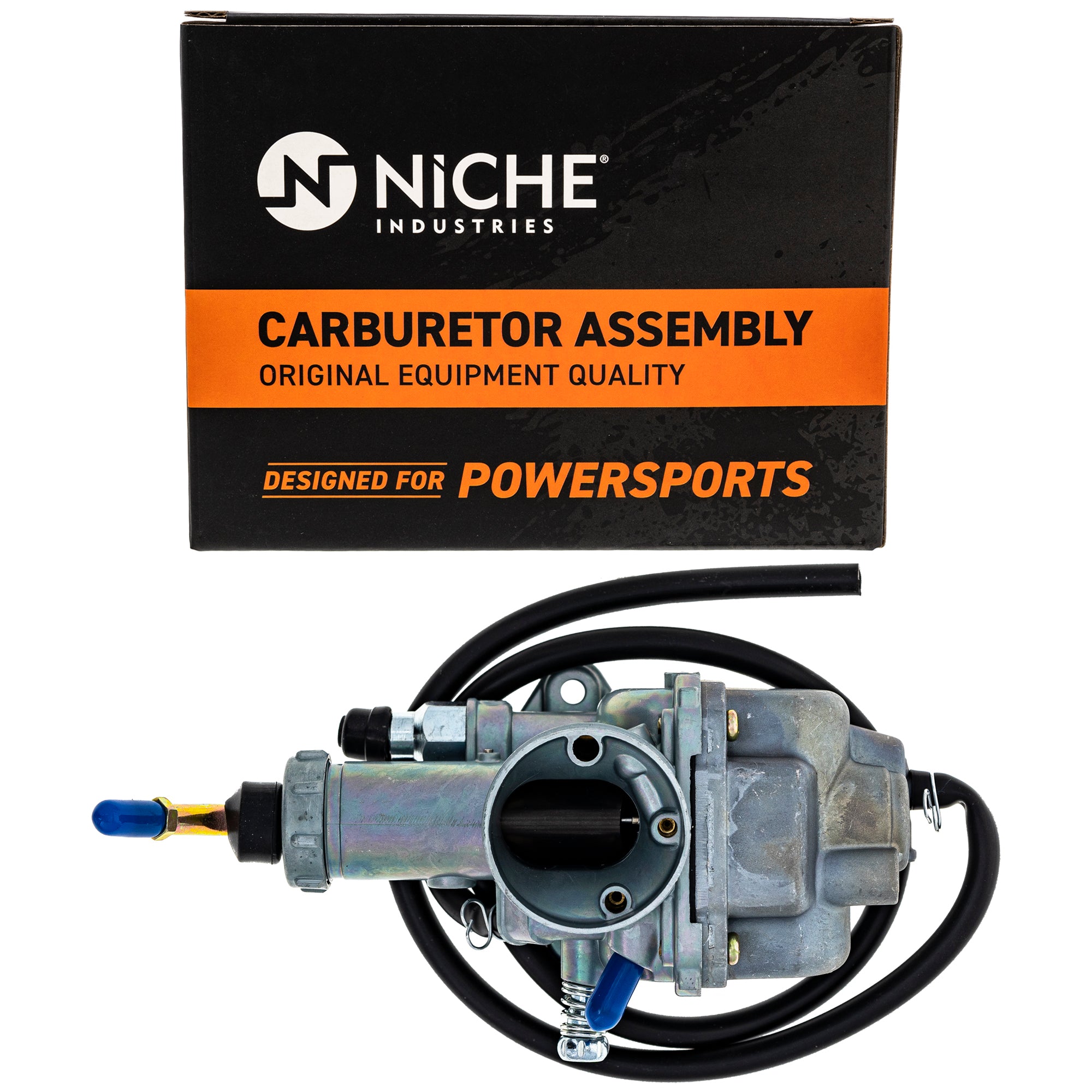

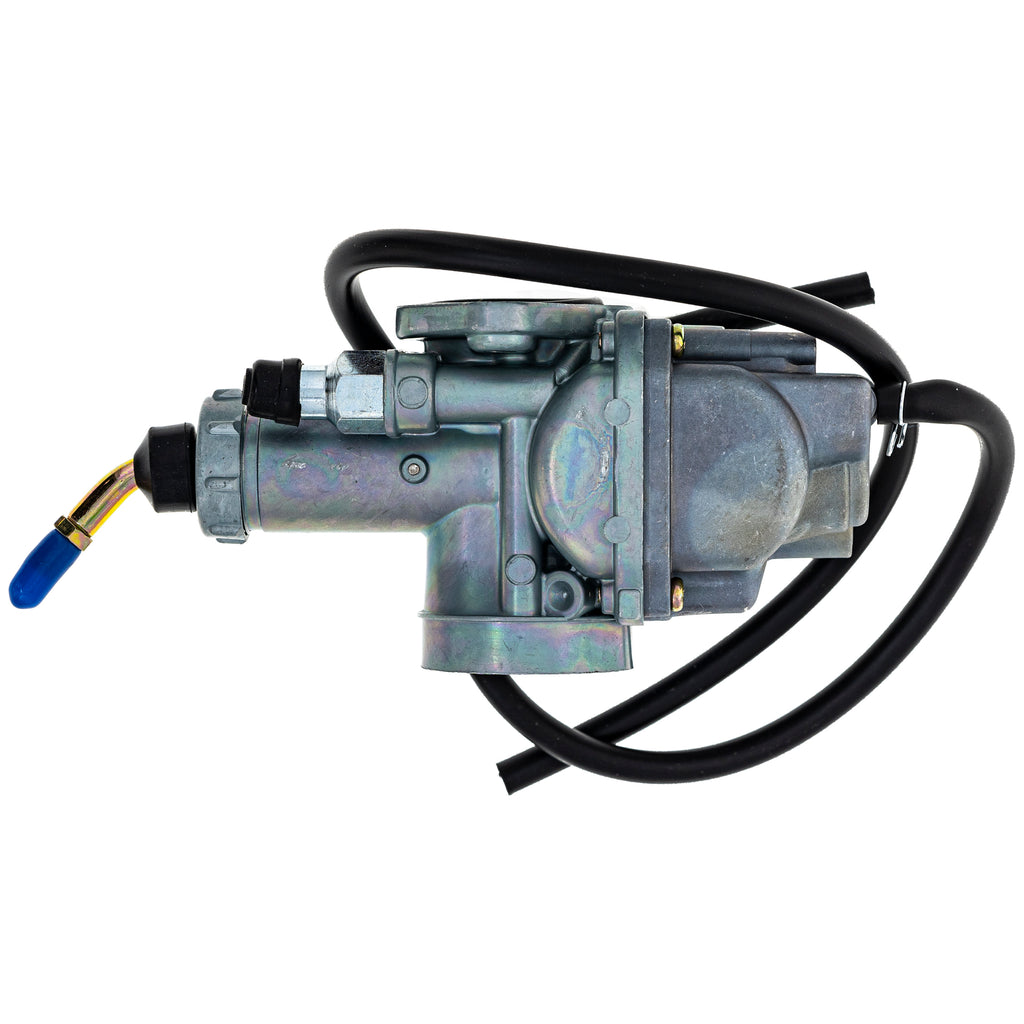

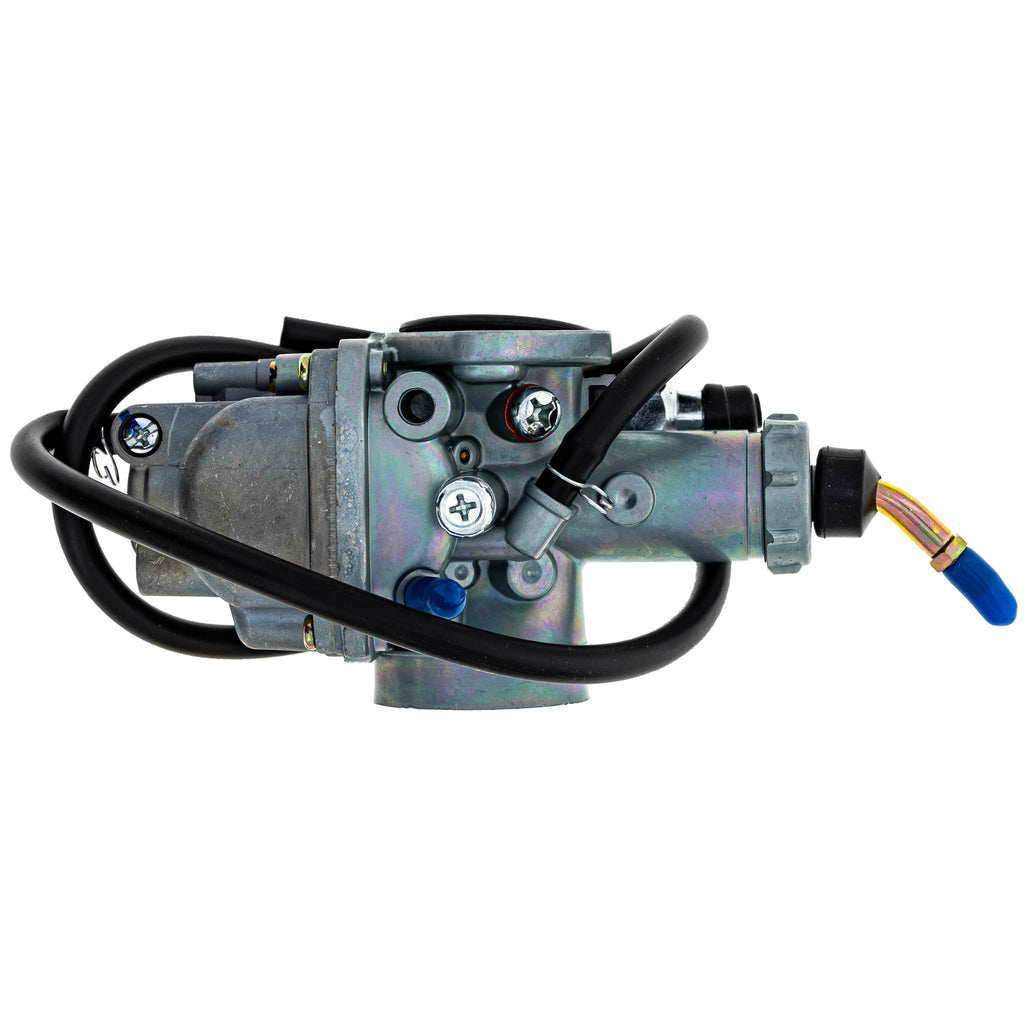

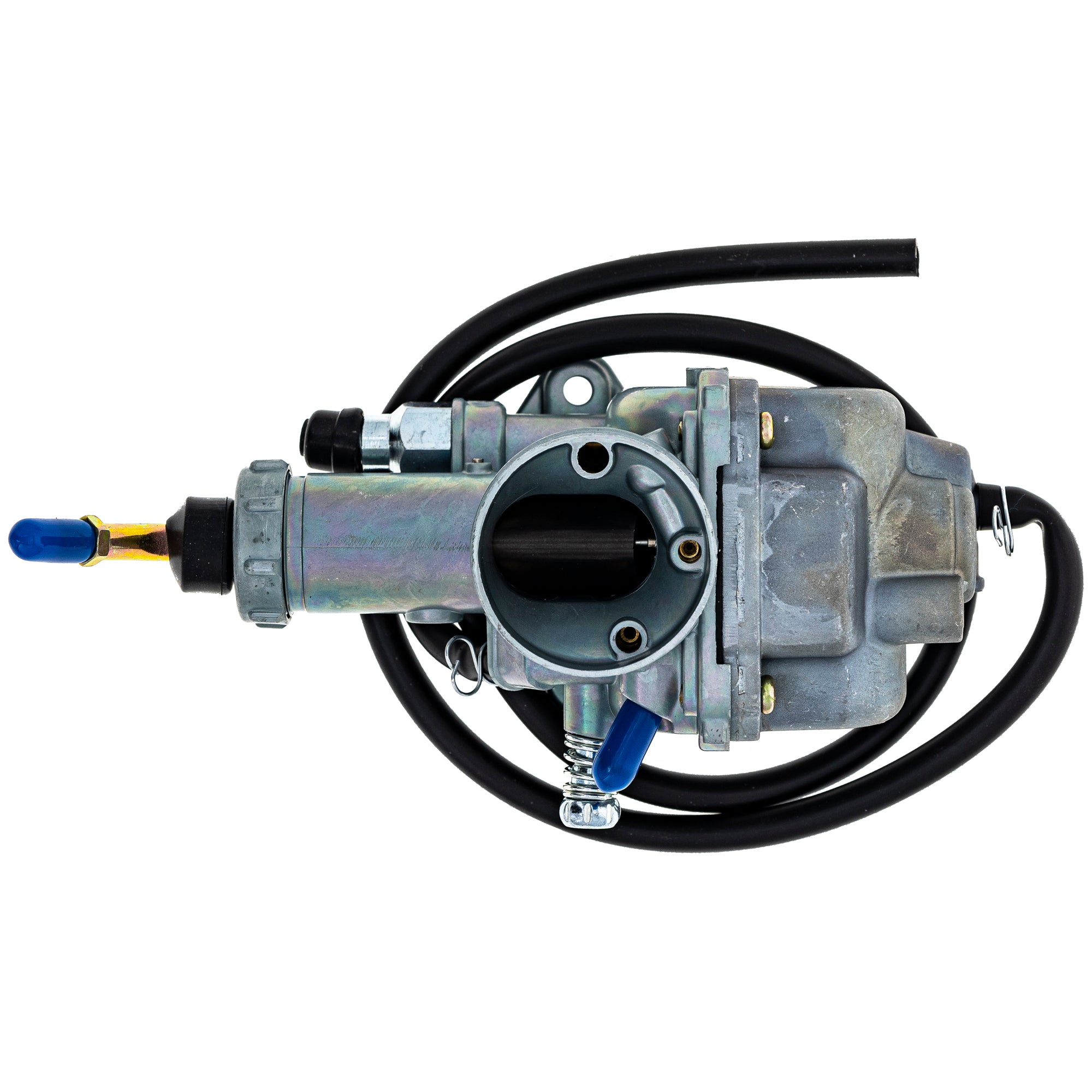

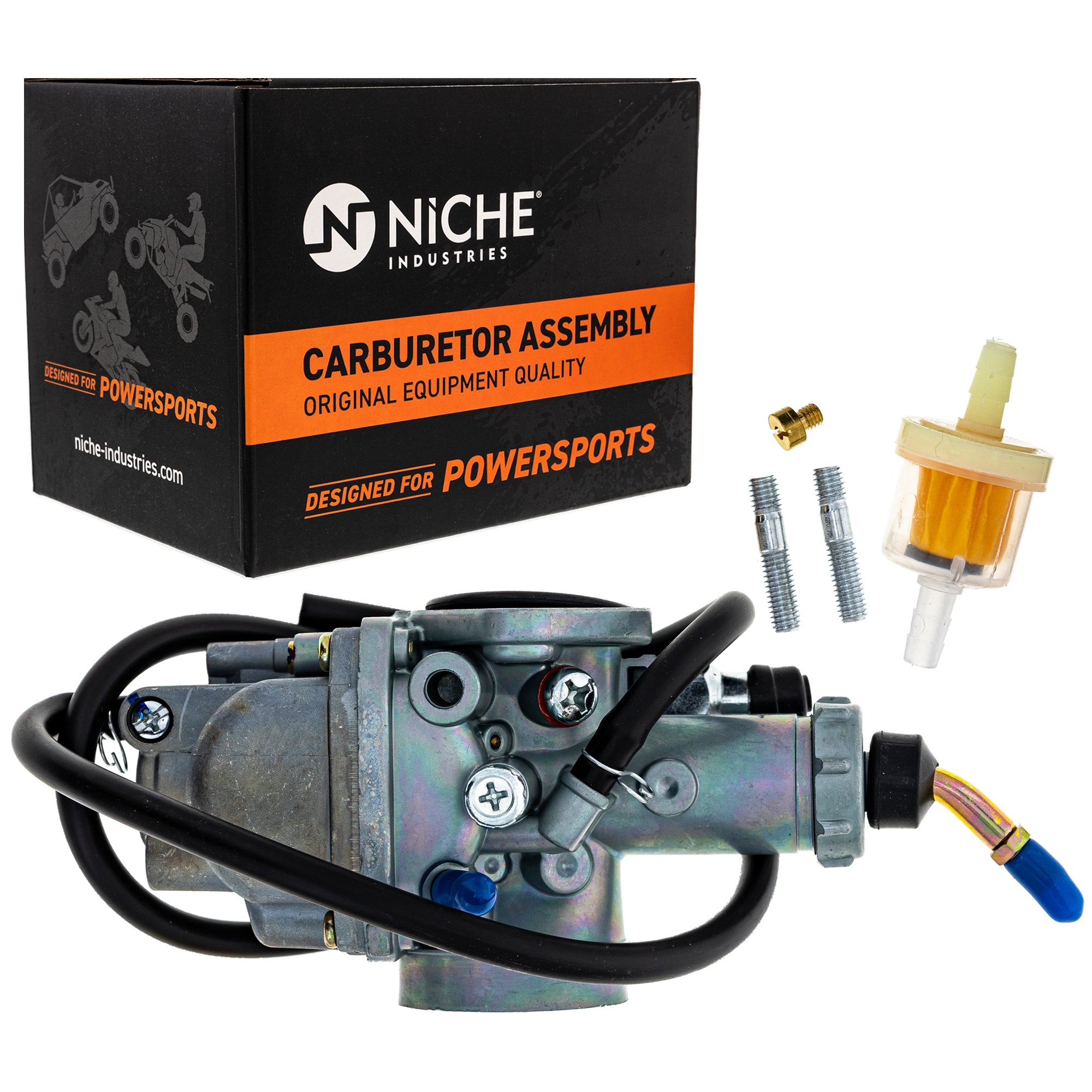

519-KCR2327B Carburetor Assembly Product Info:
- Main Jet Installed 115; Main Jet Spares None; Pilot Jet Installed 40; Pilot Jet Spares None; Air Jet Installed 160mm
- Input Port Size OD None; Input Port Size ID 30mm; Output Port Size OD 41mm; Output Port Size ID 38mm
- Center Hole to Center Hole 52.5mm; Choke is Pull Wire; Bowl Heater Included? No
Direct Replacement for the Following OEM Part Numbers:
4BD-14101-10-00, 4BD-14101-00-00
Compatibile with the Following Vehicles:
Yamaha Timberwolf 250 2WD: 1992-1997
Yamaha Timberwolf 250 4X4: 1995-1998
