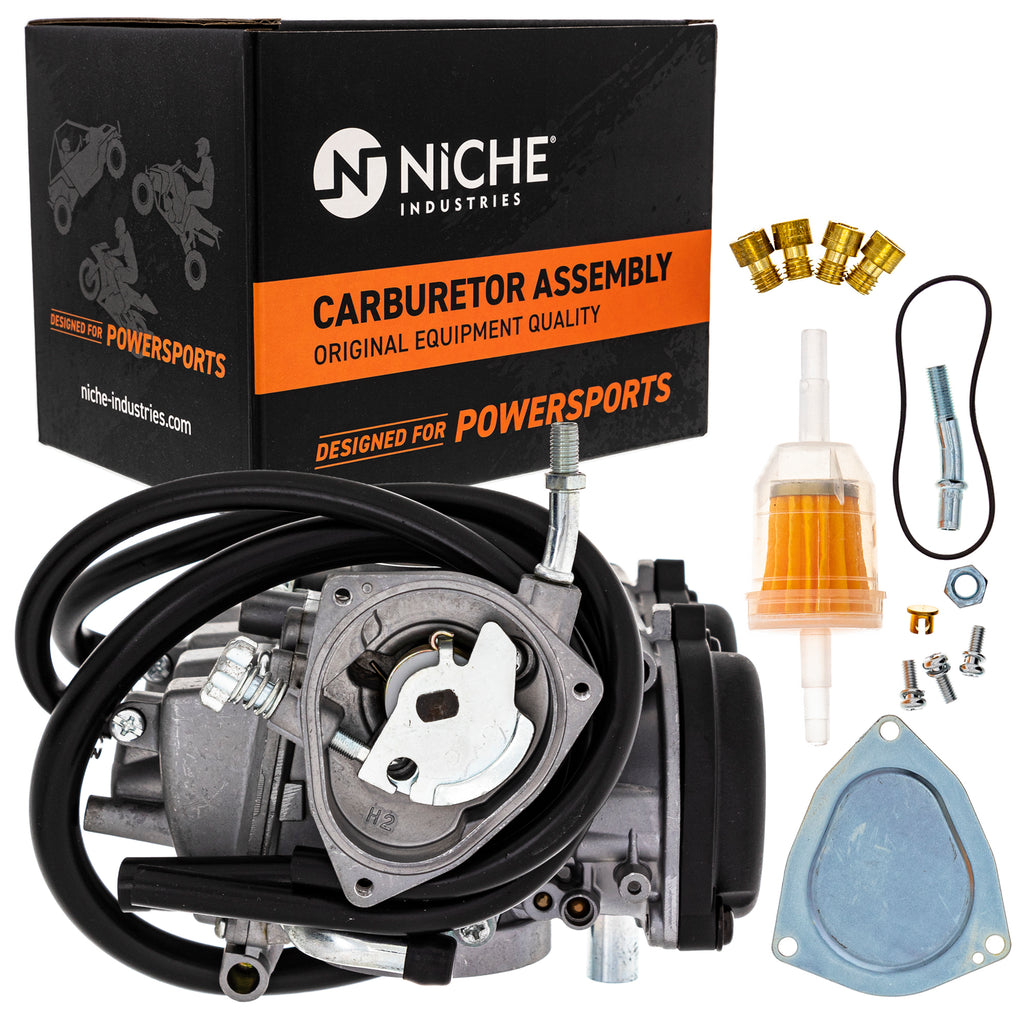

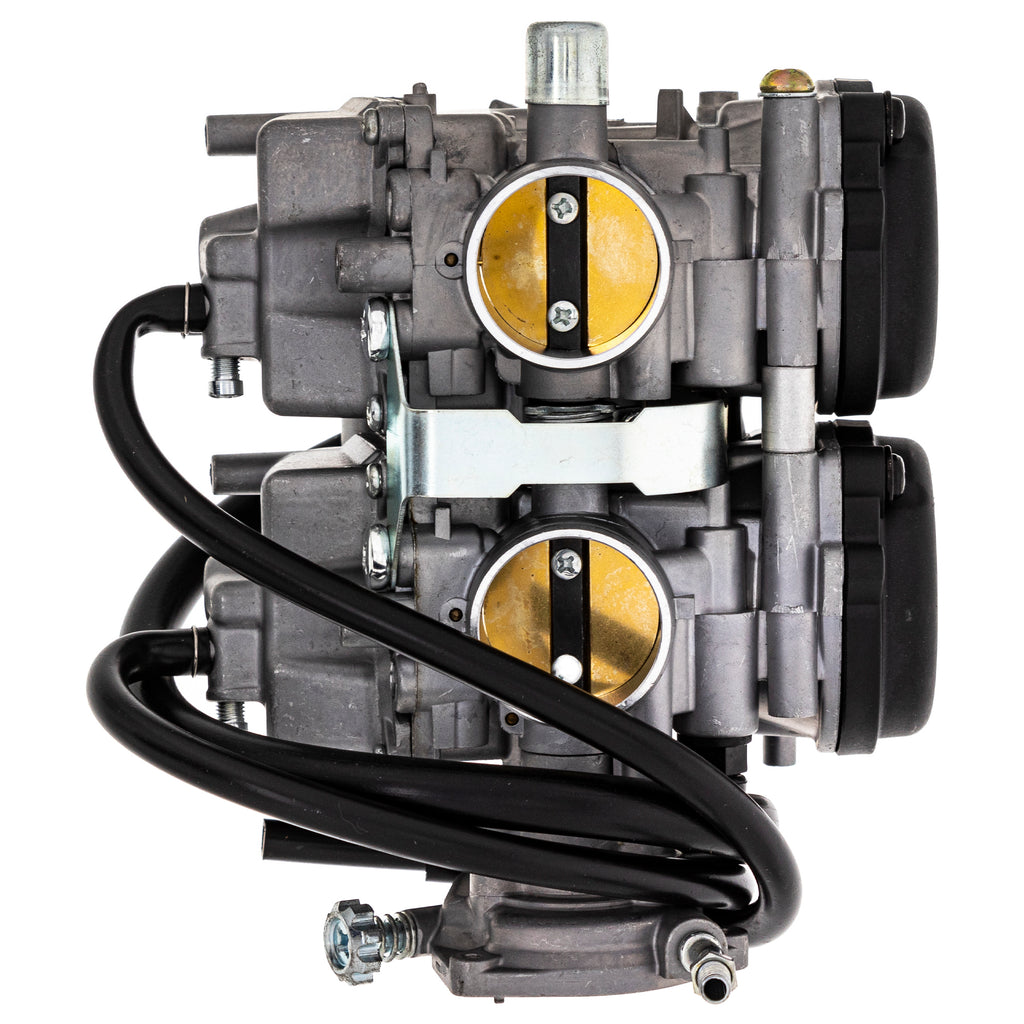

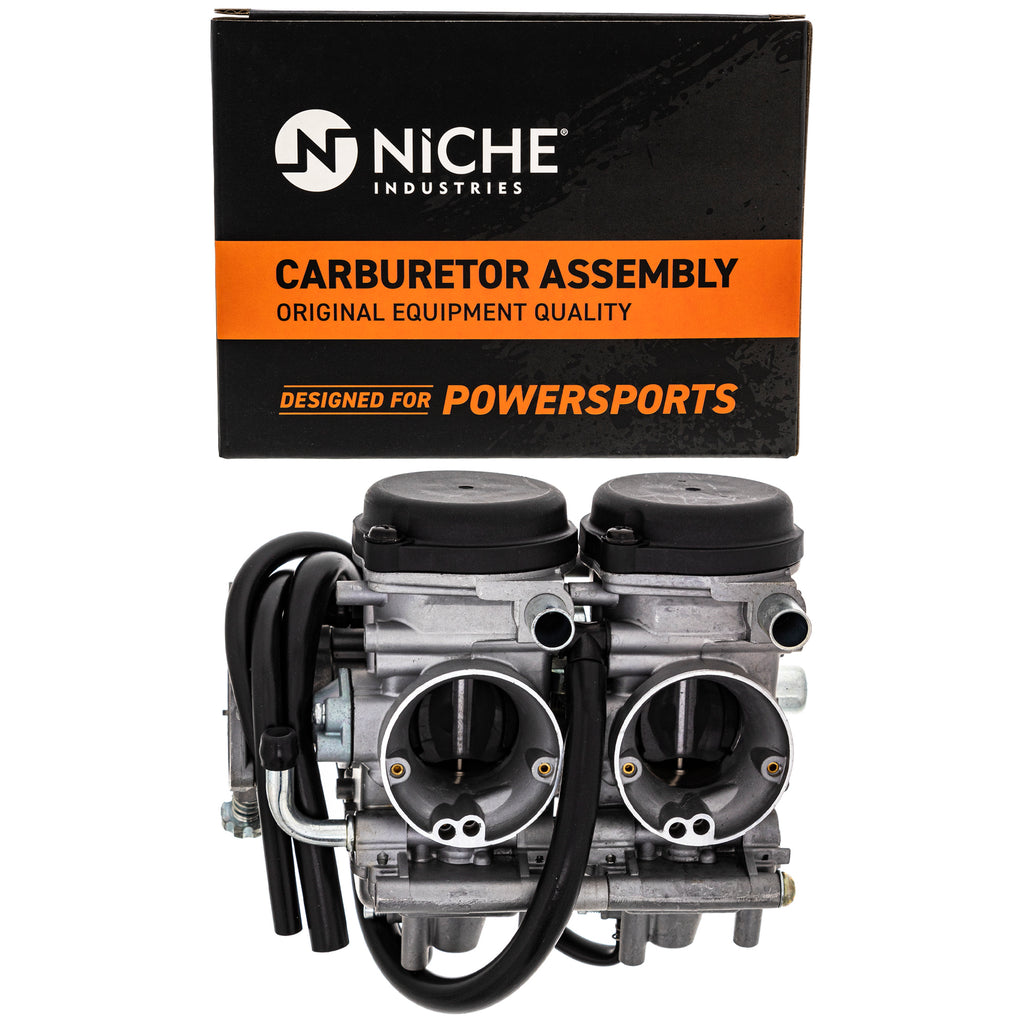

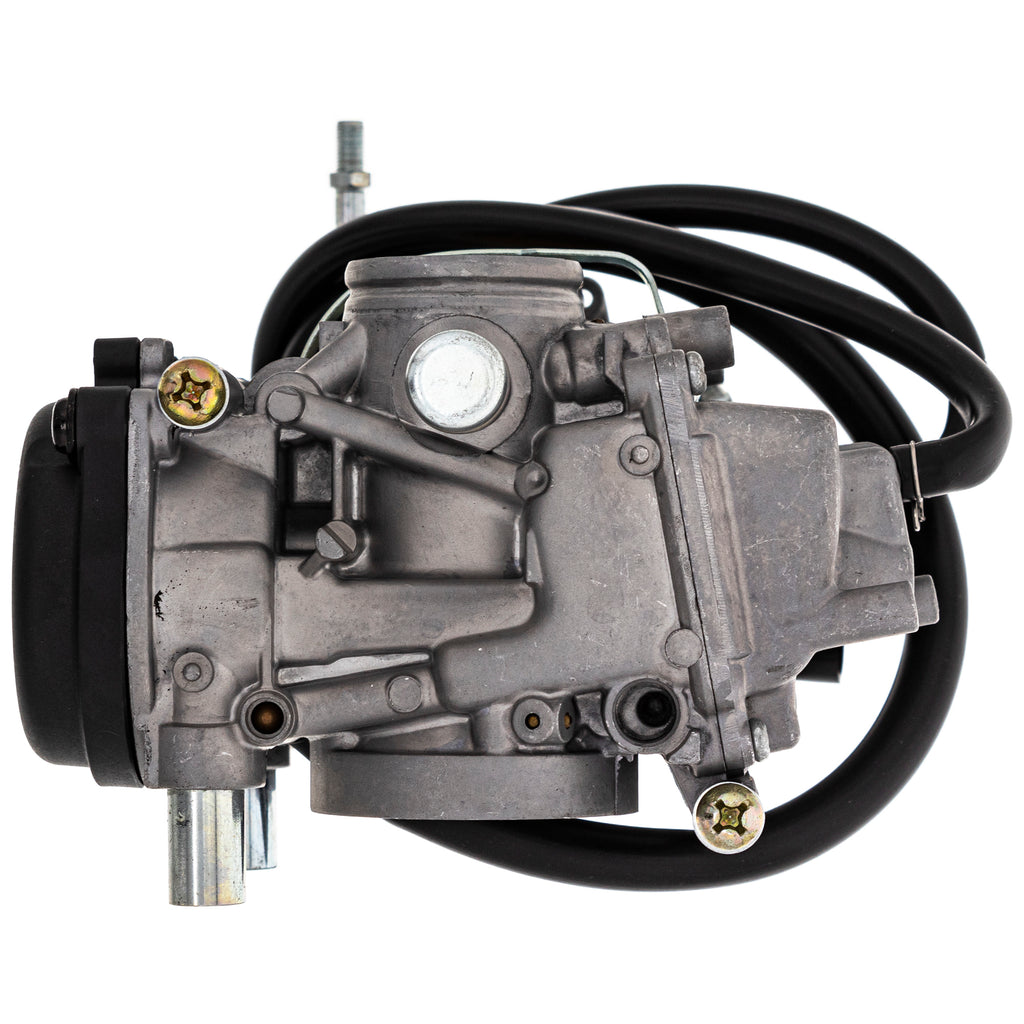

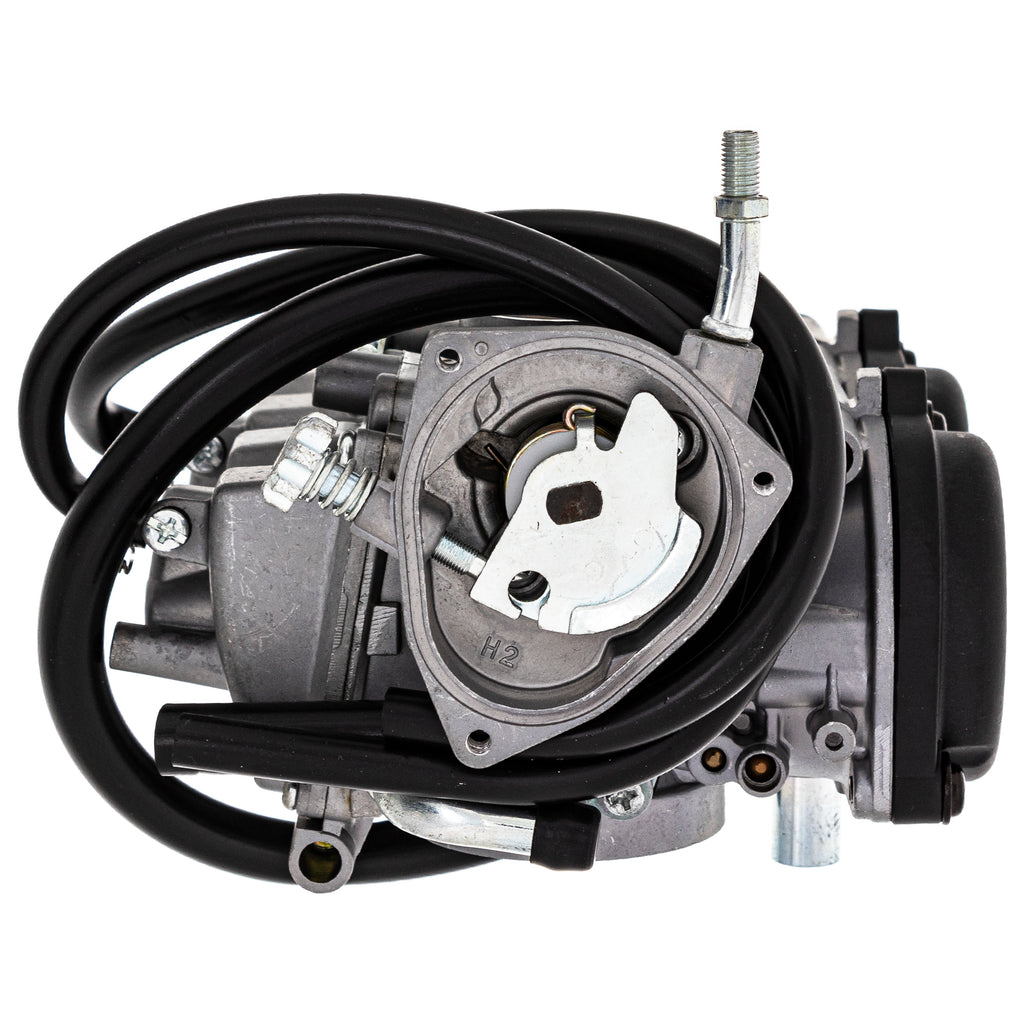

519-KCR2239B Carburetor Assembly Product Info:

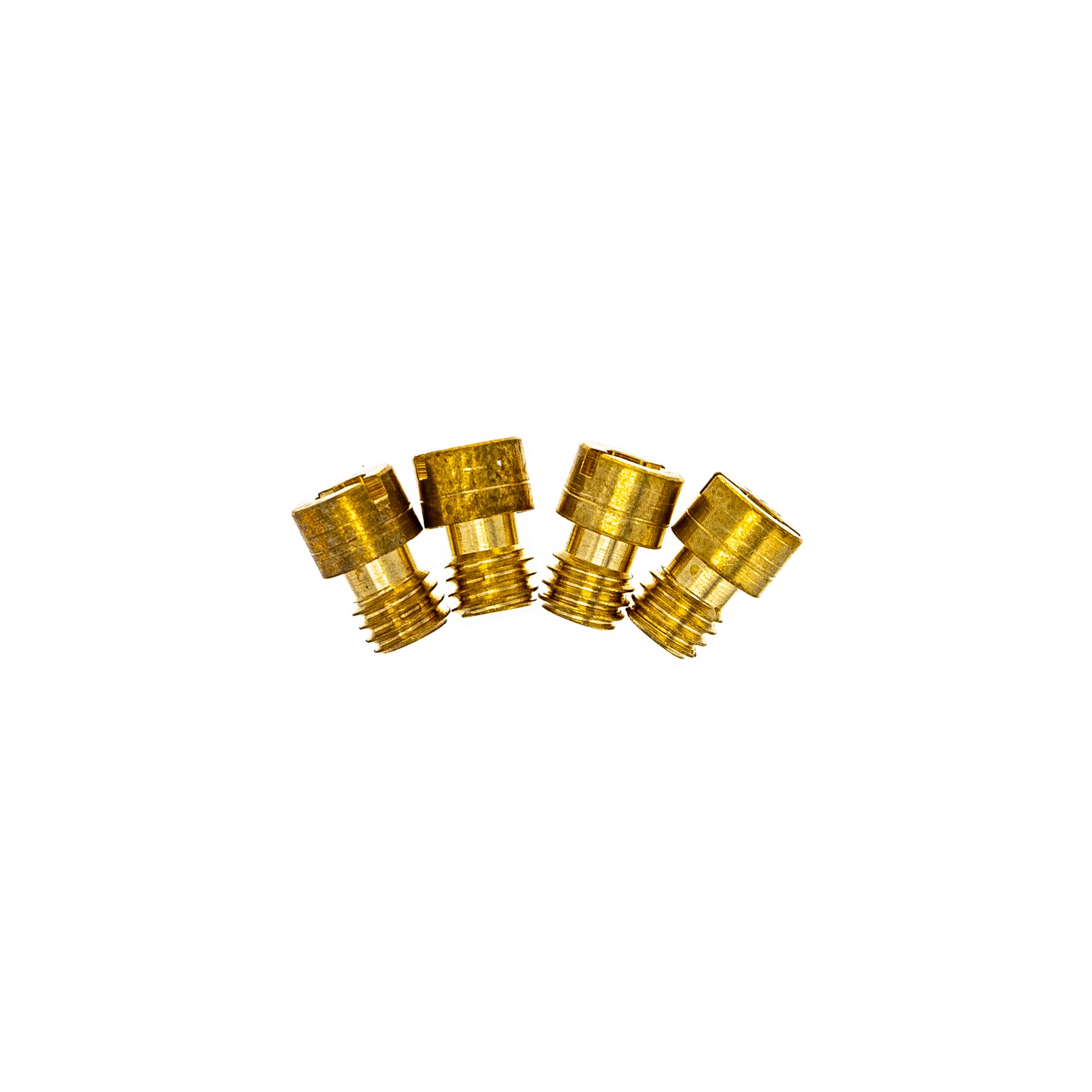

- Main Jet Installed 170; Main Jet Spares #140 (x2), #145 (x2); Pilot Jet Installed 45; Pilot Jet Spares #45 (x2); Air Jet Installed 100mm
- Input Port Size OD 38mm; Input Port Size ID 33mm; Output Port Size OD 52mm; Output Port Size ID 49mm
- Center Hole to Center Hole None; Choke is Automaticity; Bowl Heater Included? No
Direct Replacement for the Following OEM Part Numbers:
5LP-14900-30-00, 5LP-14900-20-00, 5LP-14900-00-00
Compatibile with the Following Vehicles:
Yamaha Raptor 660R Limited Edition: 2002-2004
Yamaha Raptor 660R Special Edition: 2005
Yamaha Raptor 660R: 2001-2005
