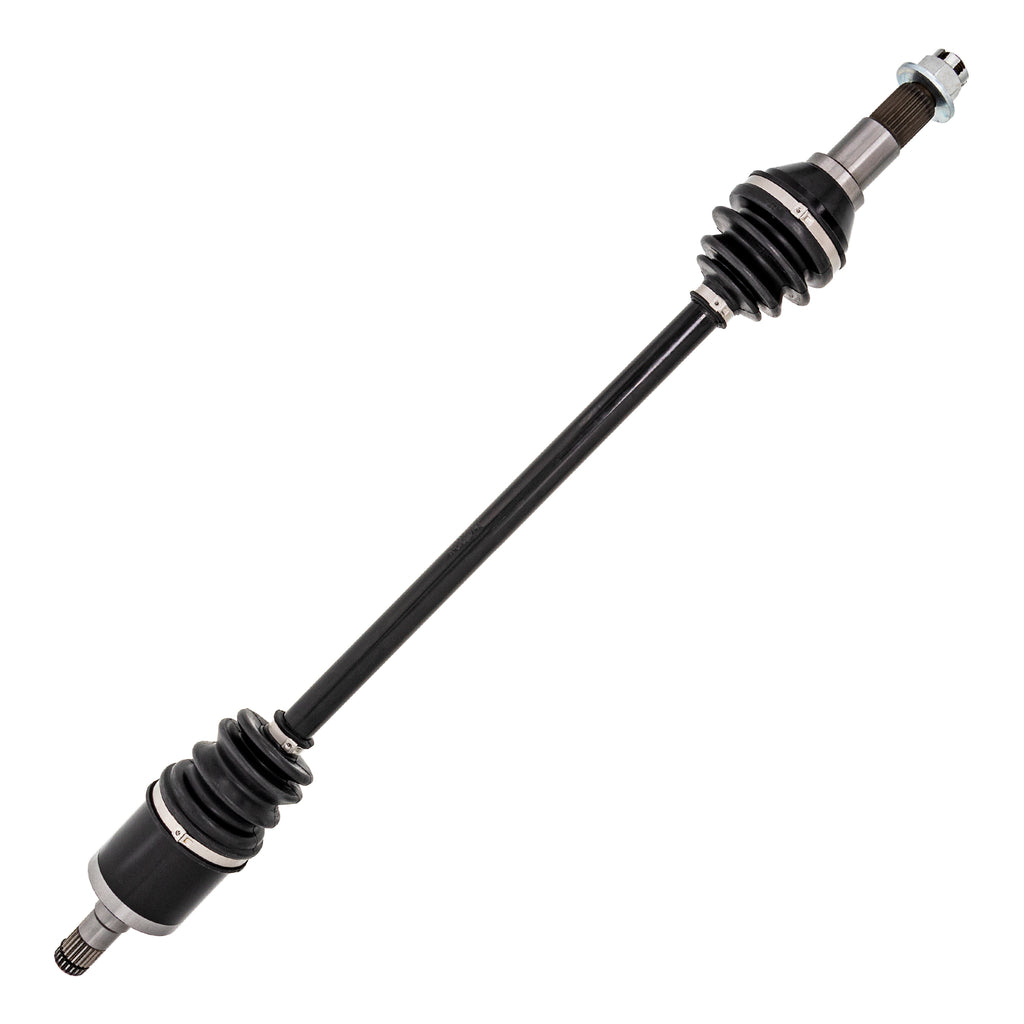

Front Left Half Drive Shaft CV Axle Assembly for BRP Can-Am Ski-Doo Sea-Doo Maverick NICHE 519-KCA2363X

NICHE 519-KCA2363X Axle Parts for BRP Can-Am Ski-Doo Sea-Doo Maverick

NICHE Axle Parts 705401877 705401873 705401807 705401663

Front Left Half Drive Shaft CV Axle Assembly For Can-Am 705401877 705401873 705401807 705401663

Roll over image to zoom in Click on image to zoom

Front Left Half Drive Shaft CV Axle Assembly For Can-Am 705401877 705401873 705401807 705401663

Name: Front Left Half Drive Shaft CV Axle Assembly For Can-Am 705401877 705401873 705401807 705401663
Brand: NICHE
SKU: 15MIS_K-CAX-0141
Price: 79.95 USD
Availability: InStock

NICHESKU: K-CAX-0141

Price:

$79.95 USD $119.99 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	519-KCA2363X
UPC:	803467026930
Included Hardware:	NO
Inner Diameter:	Inboard: 2 9/16 (2.559 Inches); Outboard: 2 3/4 (2.72 Inches)
Material:	40Cr Steel
Axle Length:	28 1/2 (28.504 Inches)
Boot Material:	Neoprene Polychloroprene (CR)
Inboard Spline Diameter:	2 9/16 (2.559 Inches)
Inboard Splines:	21 Teeth
Outboard Spline Diameter:	2 3/4 (2.72 Inches)
Outboard Splines:	26 Teeth
Shaft Diameter:	7/8 (0.906 Inches)
Shaft Material:	40Cr Steel
Thread Measurement:	M18X1.5

519-KCA2363X Front Left Half Drive Shaft CV Axle Assembly Product Info:

High Strength Heavy Duty Constant Velocity Axle Compressed Length: 28 1/2, Inboard Splines: 21T, Inboard Spline Diameter: 2 9/16
Outboard Splines: 26T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 7/8, Thread Measurement: M18x1.5

Direct Replacement for the Following OEM Part Numbers:

705401877, 705401873, 705401807, 705401663, 705401387, 705401235

Compatibile with the Following Vehicles:

Can-Am Maverick 1000R DPS: 2016-2018
Can-Am Maverick 1000R Turbo DPS: 2016-2017
Can-Am Maverick 1000R Turbo X DS DPS: 2015-2016
Can-Am Maverick 1000R Turbo X RS DPS: 2016
Can-Am Maverick 1000R X DS DPS: 2015-2016
Can-Am Maverick 1000R X MR DPS: 2014-2018
Can-Am Maverick 1000R X RS DPS: 2014-2015
Can-Am Maverick 1000R X RS: 2013-2015
Can-Am Maverick 1000R X XC DPS: 2016-2018
Can-Am Maverick 1000R XC DPS: 2016-2018
Can-Am Maverick 1000R XC: 2016-2018
Can-Am Maverick 1000R: 2013-2018
Can-Am Maverick Max 1000R DPS: 2016-2018
Can-Am Maverick Max 1000R Turbo DPS: 2016-2017
Can-Am Maverick Max 1000R Turbo X DS: 2015-2017
Can-Am Maverick Max 1000R Turbo X RS: 2016-2017
Can-Am Maverick Max 1000R X DS DPS: 2015-2016
Can-Am Maverick Max 1000R X MR DPS: 2017-2018
Can-Am Maverick Max 1000R X RS DPS: 2013-2015
Can-Am Maverick Max 1000R: 2013-2018
