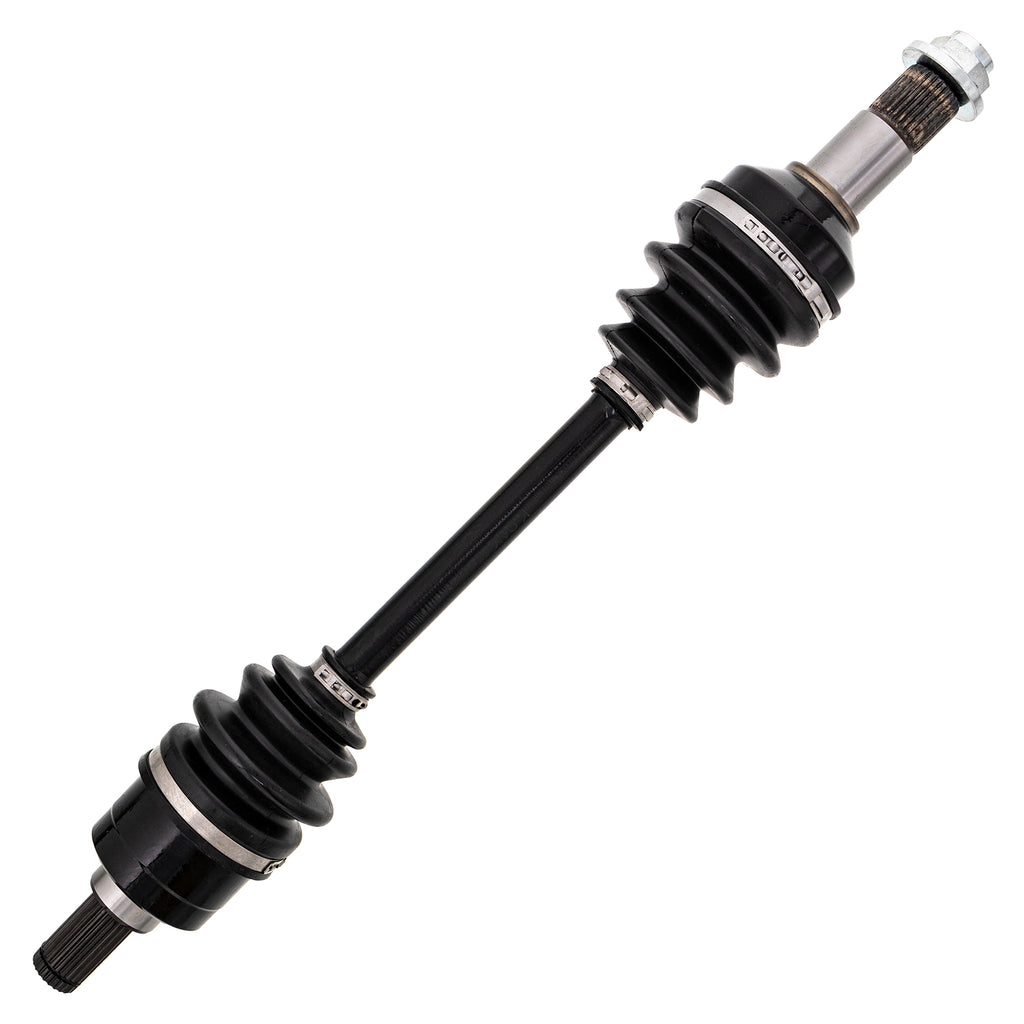

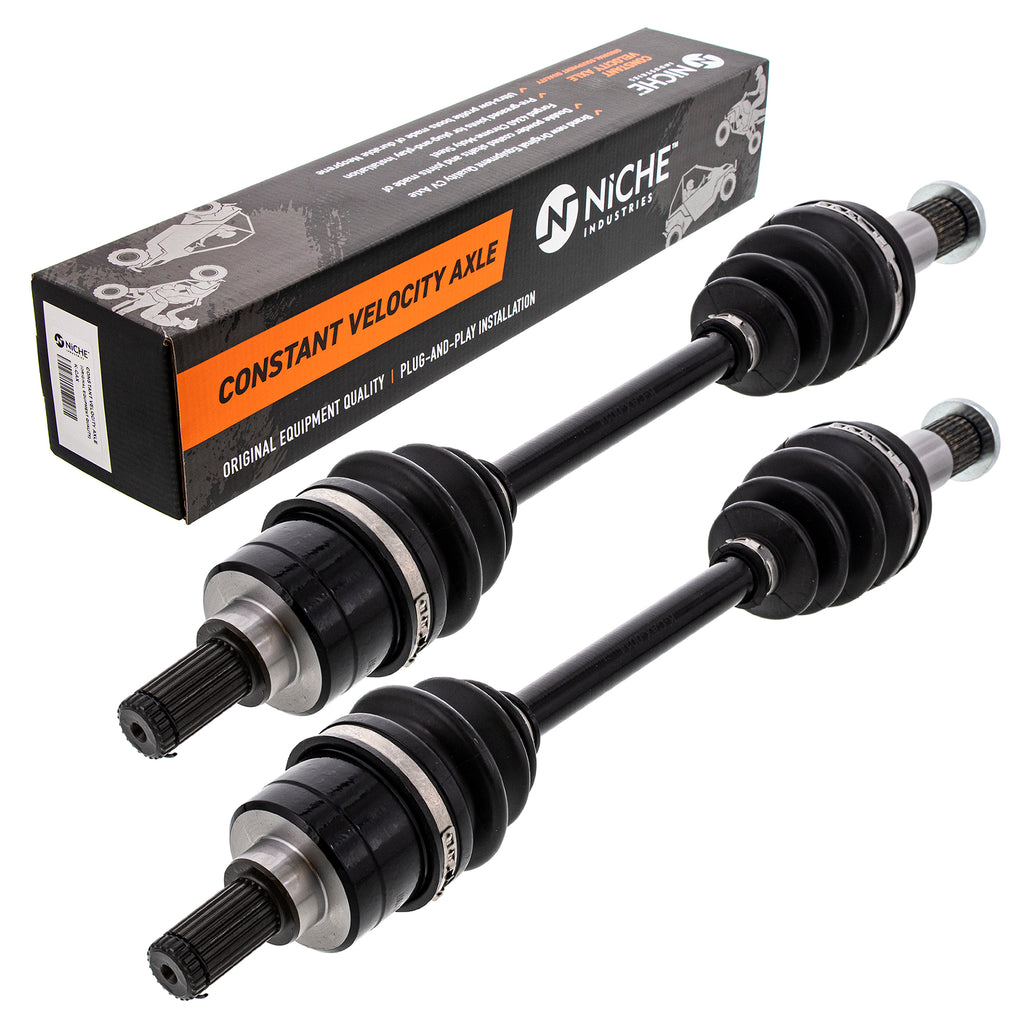

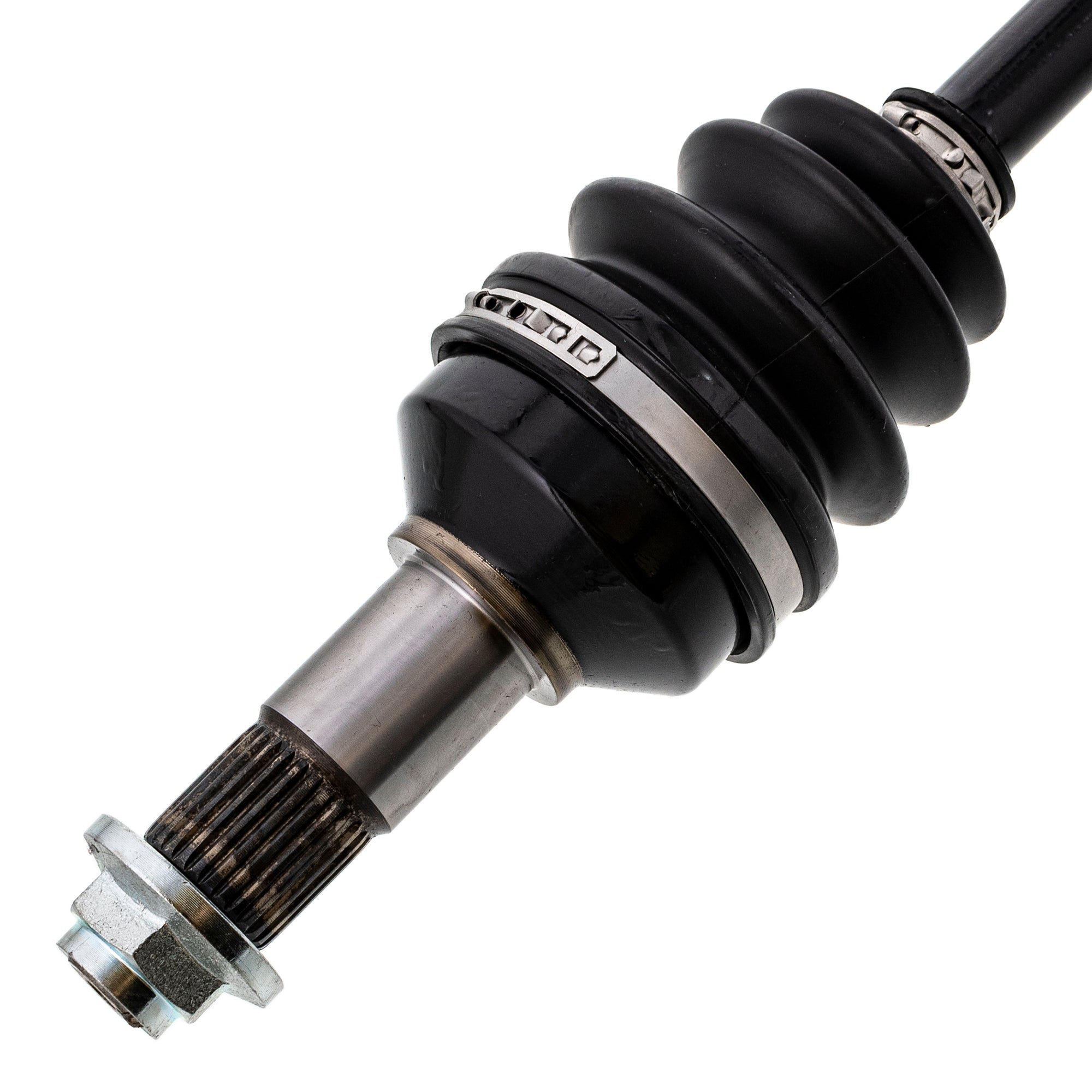

Rear Drive Shaft CV Axle Assembly 2-Pack for zOTHER Grizzly 3B4-2530V-00-00 NICHE 519-KCA2236X

NICHE 519-KCA2236X Axle Parts 2-Pack for zOTHER Grizzly

NICHE Axle Parts 2-Pack 3B4-2530V-00-00 28P-2530V-01-00

Rear Drive Shaft CV Axle Assembly For Yamaha 3B4-2530V-00-00 28P-2530V-01-00 | 2-PACK

Roll over image to zoom in Click on image to zoom

Rear Drive Shaft CV Axle Assembly For Yamaha 3B4-2530V-00-00 28P-2530V-01-00 | 2-PACK

Name: Rear Drive Shaft CV Axle Assembly For Yamaha 3B4-2530V-00-00 28P-2530V-01-00 | 2-PACK
Brand: NICHE
SKU: 15MIS_K-CAX-0014_MPK2
Price: 119.95 USD
Availability: InStock

NICHESKU: K-CAX-0014_MPK2

Price:

$119.95 USD $215.99 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	519-KCA2236X
UPC:	803467035741
Included Hardware:	YES
Inner Diameter:	Inboard: 2 1/2 (2.48 Inches); Outboard: 2 3/4 (2.72 Inches)
Material:	40Cr Steel
Axle Length:	20 13/16 (20.827 Inches)
Boot Material:	Neoprene Polychloroprene (CR)
Inboard Spline Diameter:	2 1/2 (2.48 Inches)
Inboard Splines:	23 Teeth
Outboard Spline Diameter:	2 3/4 (2.72 Inches)
Outboard Splines:	27 Teeth
Shaft Diameter:	3/4 (0.768 Inches)
Shaft Material:	40Cr Steel
Thread Measurement:	M20X1.5

519-KCA2236X Rear Drive Shaft CV Axle Assembly Product Info:

High Strength Heavy Duty Constant Velocity Axle Compressed Length: 20 13/16, Inboard Splines: 23T, Inboard Spline Diameter: 2 1/2, Outboard Splines: 27T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 3/4, Thread Measurement: M20X1.5

Direct Replacement for the Following OEM Part Numbers:

3B4-2530V-00-00, 28P-2530V-01-00

Compatibile with the Following Vehicles:

Yamaha Grizzly 550 FI 4X4: 2009-2014
Yamaha Grizzly 550 FI EPS 4X4: 2009-2014
Yamaha Grizzly 550 Hunter Edition FI 4X4: 2009-2014
Yamaha Grizzly 550 Hunter Edition FI EPS 4X4: 2009-2014
Yamaha Grizzly 550 Special Edition FI EPS 4X4: 2009
Yamaha Grizzly 700 Ducks Unlimited Edition FI 4X4: 2007-2009
Yamaha Grizzly 700 Exploring Edition FI 4X4: 2007
Yamaha Grizzly 700 FI 4X4: 2007-2013
Yamaha Grizzly 700 FI EPS 4X4: 2007-2013
Yamaha Grizzly 700 Hunter Edition FI 4X4: 2007-2013
Yamaha Grizzly 700 Hunter Edition FI EPS 4X4: 2009-2013
Yamaha Grizzly 700 Outdoorsman Edition FI 4X4: 2007
Yamaha Grizzly 700 Special Edition FI 4X4: 2007
Yamaha Grizzly 700 Special Edition FI EPS 4X4: 2009-2013

Rear Drive Shaft CV Axle Assembly For Yamaha 3B4-2530V-00-00 28P-2530V-01-00 | 2-PACK
