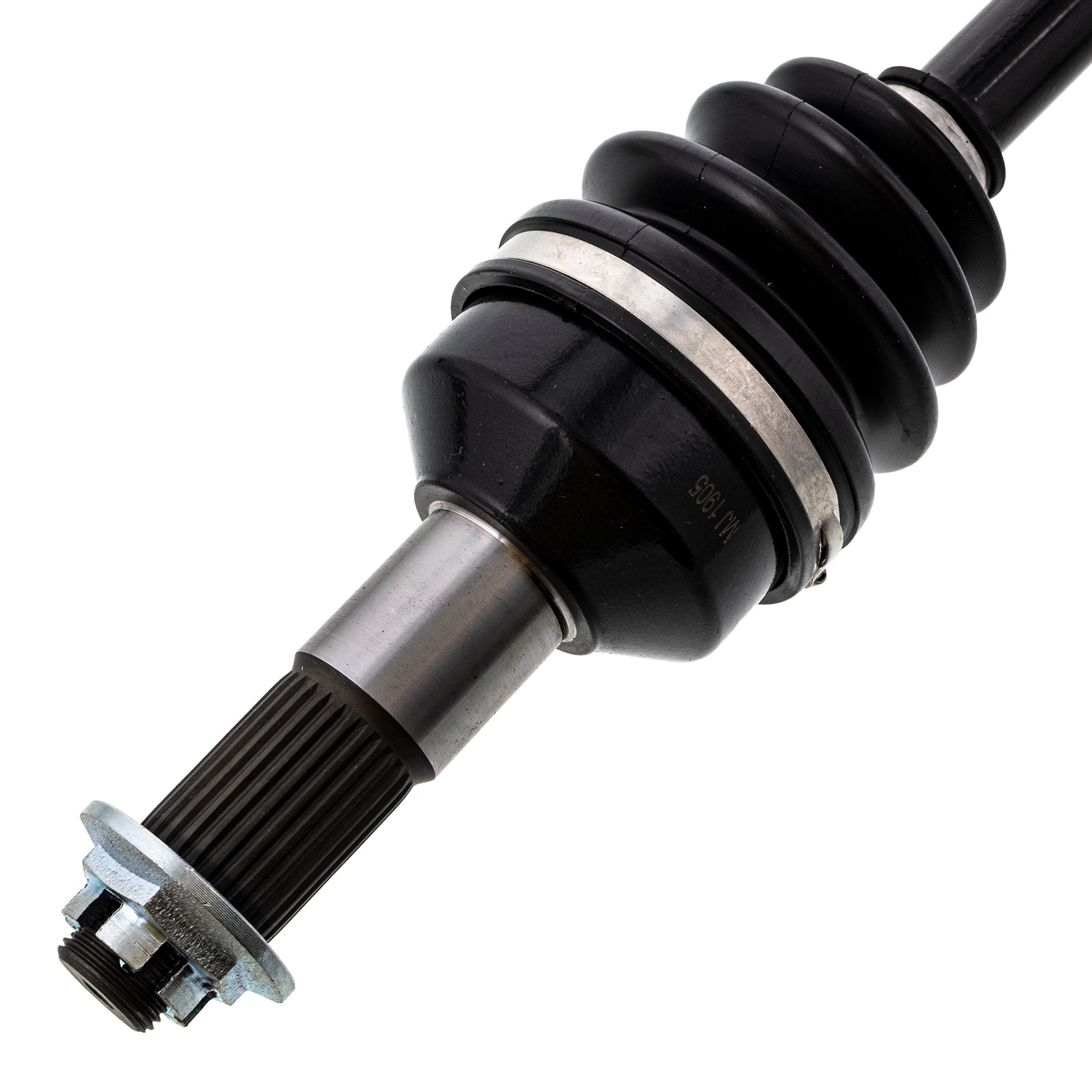

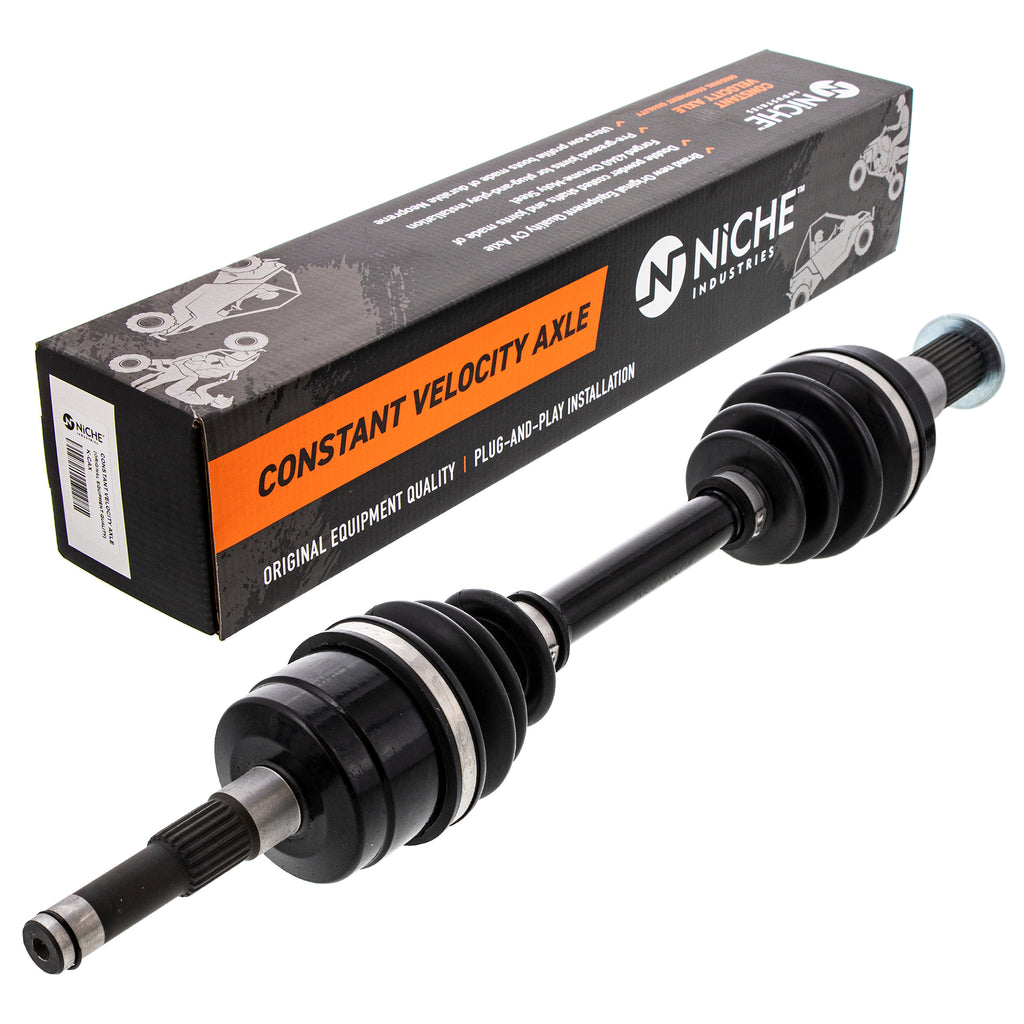

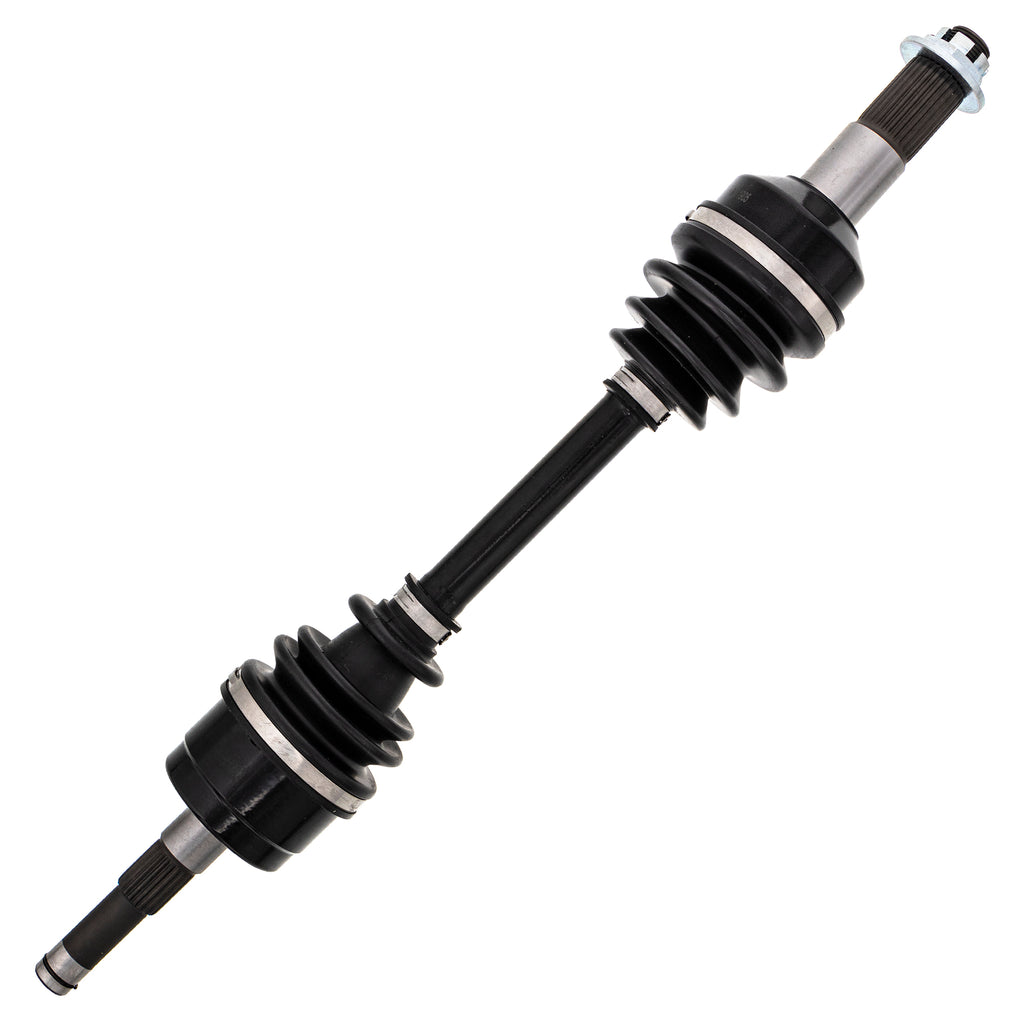

Front Left Drive Shaft CV Axle Assembly For Yamaha 5KM-2510F-11-00

519-KCA2226X Front Left Drive Shaft CV Axle Assembly Product Info:

• High Strength Heavy Duty Constant Velocity Axle Compressed Length 20 7/8, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M20x1.5

Direct Replacement for the Following OEM Part Numbers:

5KM-2510F-11-00

Compatible with the Following Vehicles:

Yamaha Grizzly 660 4X4: 2003-2008
Yamaha Grizzly 660 Ducks Unlimited Edition 4X4: 2006
Yamaha Grizzly 660 Hunter Edition 4X4: 2003-2008
Yamaha Grizzly 660 Limited Edition 4X4: 2003-2004
Yamaha Grizzly 660 Outdoorsman Edition 4X4: 2006
Yamaha Grizzly 660 Special Edition 4X4: 2005-2006
Yamaha Grizzly 660 Wetlands Hunter Edition 4X4: 2003-2005
