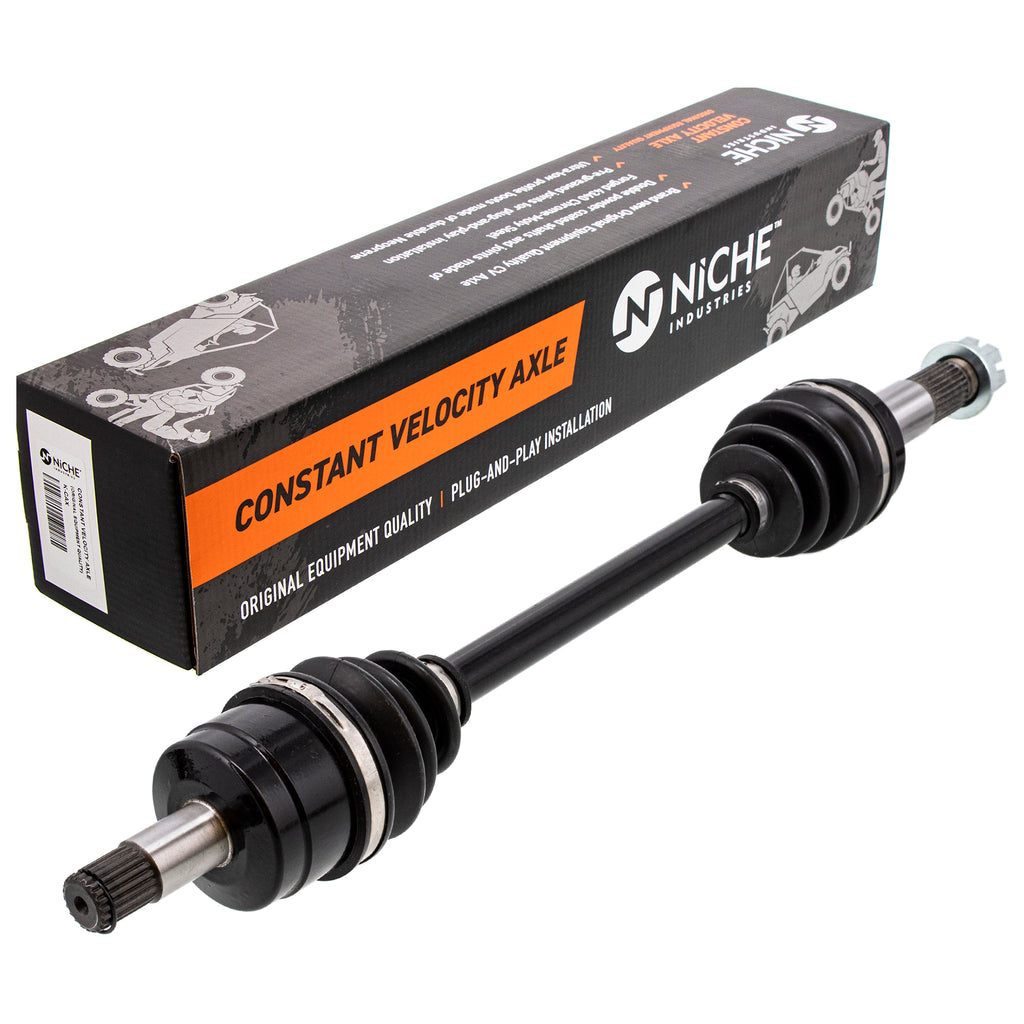

Front Drive Shaft CV Axle Assembly for zOTHER Yamaha Rhino 5UG-F518F-20-00 5UG-F518F-10-00 NICHE 519-KCA2221X

NICHE 519-KCA2221X Axle Parts for zOTHER Yamaha Rhino 5UG-F518F-20-00

NICHE Axle Parts 5UG-F518F-20-00 5UG-F518F-10-00

Front Drive Shaft CV Axle Assembly For Yamaha 5UG-F518F-20-00 5UG-F518F-10-00 5UG-F518F-00-00

Roll over image to zoom in Click on image to zoom

Front Drive Shaft CV Axle Assembly For Yamaha 5UG-F518F-20-00 5UG-F518F-10-00 5UG-F518F-00-00

Name: Front Drive Shaft CV Axle Assembly For Yamaha 5UG-F518F-20-00 5UG-F518F-10-00 5UG-F518F-00-00
Brand: NICHE
SKU: 15MIS_K-CAX-0009
Price: 79.95 USD
Availability: InStock

NICHESKU: K-CAX-0009

Price:

$79.95 USD $119.99 USD

Quantity:

Free Same Day Shipping Prior to 2:00PM (EST) * restrictions apply

Share this product

MPN:	519-KCA2221X
UPC:	803467025674
Included Hardware:	YES
Inner Diameter:	Inboard: 2 11/16 (2.717 Inches); Outboard: 2 3/4 (2.72 Inches)
Material:	40Cr Steel
Axle Length:	23 15/16 (23.937 Inches)
Boot Material:	Neoprene Polychloroprene (CR)
Inboard Spline Diameter:	2 11/16 (2.717 Inches)
Inboard Splines:	21 Teeth
Outboard Spline Diameter:	2 3/4 (2.72 Inches)
Outboard Splines:	27 Teeth
Shaft Diameter:	13/16 (0.827 Inches)
Shaft Material:	40Cr Steel
Thread Measurement:	M24X1.5

519-KCA2221X Front Drive Shaft CV Axle Assembly Product Info:

High Strength Heavy Duty Constant Velocity Axle Compressed Length: 23 15/16, Inboard Splines: 21T, Inboard Spline Diameter: 2 11/16
Outboard Splines: 27T, Outboard Spline Diameter: 2 3/4, Shaft Diameter: 13/16, Thread Measurement: M24X1.5

Direct Replacement for the Following OEM Part Numbers:

5UG-F518F-20-00, 5UG-F518F-10-00, 5UG-F518F-00-00

Compatibile with the Following Vehicles:

Yamaha Rhino 450 YXR450FA 4x4: 2006-2009
Yamaha Rhino 450 YXR450FAH 4x4 Hunter Edition: 2006
Yamaha Rhino 450 YXR450FASE 4x4 Special Edition: 2007
Yamaha Rhino 450 YXR450FH 4x4 Hunter Edition: 2008-2009
Yamaha Rhino 450 YXR450FSE 4x4 Special Edition: 2007-2008
Yamaha Rhino 660 YXR660FA 4x4: 2004-2007
Yamaha Rhino 660 YXR660FAEX 4x4 Exploring Edition: 2006-2007
Yamaha Rhino 660 YXR660FAH 4x4 Hunter Edition: 2005-2006
Yamaha Rhino 660 YXR660FASE 4x4 Special Edition: 2006
Yamaha Rhino 660 YXR660FDU 4x4 Ducks Unlimited Edition: 2007
Yamaha Rhino 660 YXR660FH 4x4 Hunter Edition: 2007
Yamaha Rhino 660 YXR660FSE 4x4 Special Edition: 2007
Yamaha Rhino 660 YXR660FSP 4x4 Sport Edition: 2007

Front Drive Shaft CV Axle Assembly For Yamaha 5UG-F518F-20-00 5UG-F518F-10-00 5UG-F518F-00-00

Product Specifications

Search Equipment Compatibility

Description

519-KCA2221X Front Drive Shaft CV Axle Assembly Product Info:

Direct Replacement for the Following OEM Part Numbers:

Compatibile with the Following Vehicles:
