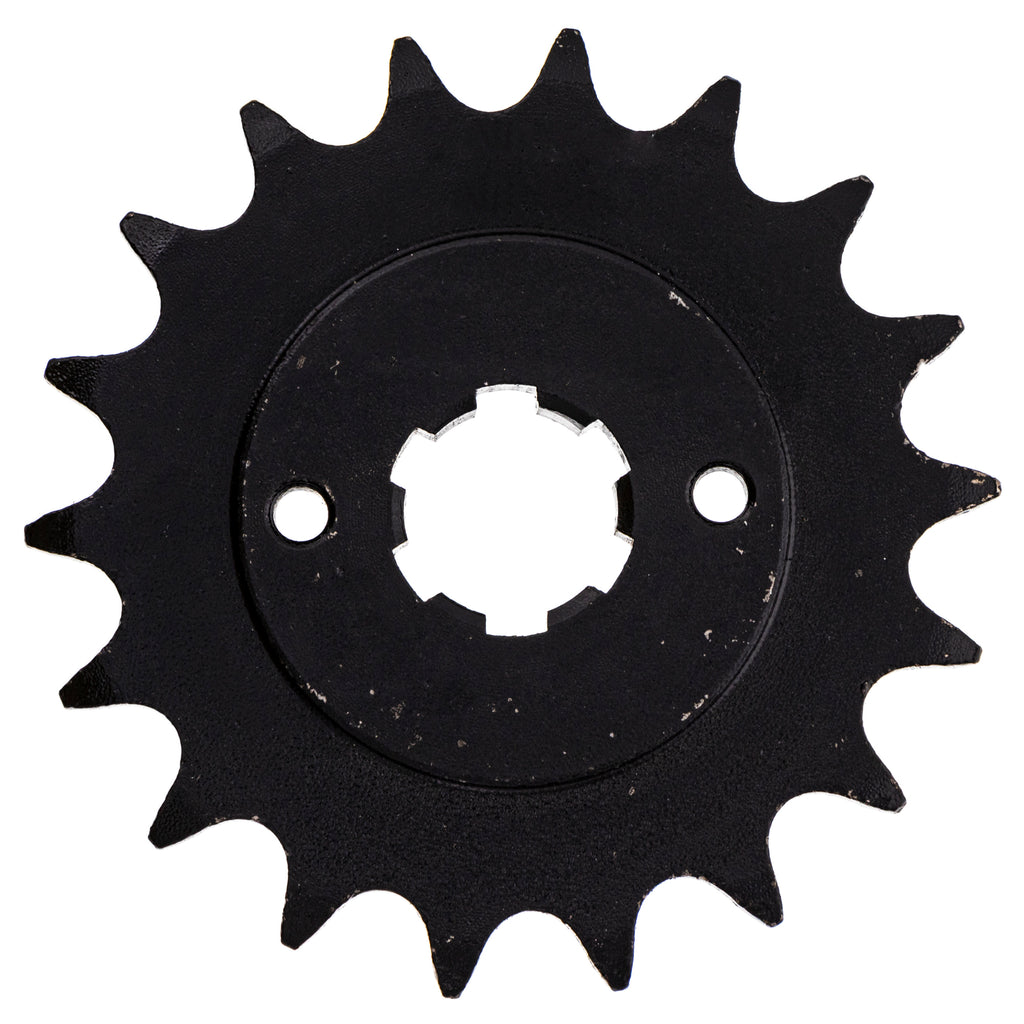

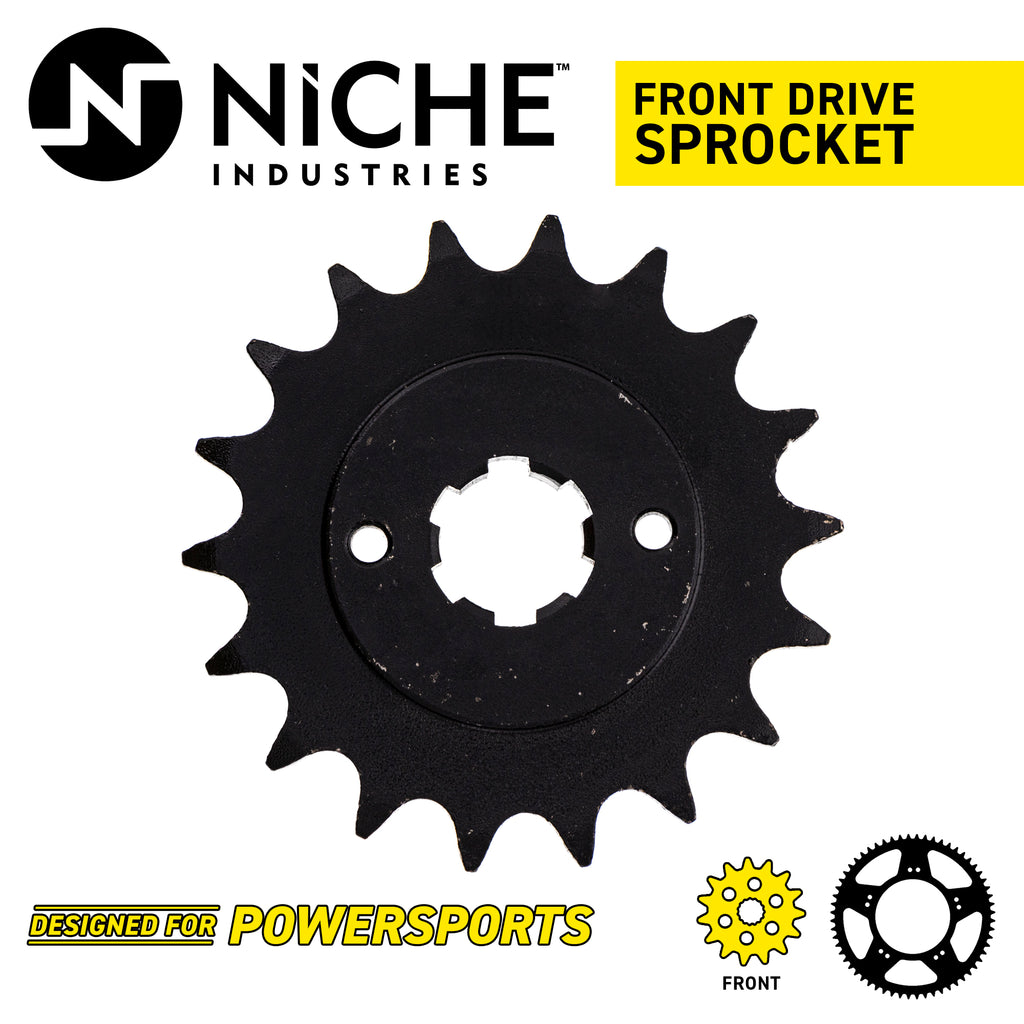

Name: Tooth Front Drive Sprocket For Honda
Brand: NICHE
SKU: 15MIS_C-DSP-0162
Price: 21.95 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

MPN:	519-CDS2384P
UPC:	803467014685
Chain Pitch:	530
Inner Diameter:	21mm
Material:	SAE 1023 Structural Carbon Steel
Distance Between Mounting Holes:	42mm
Front Sprocket Teeth:	18
Hub Inner Diameter:	21mm
Hub 2 Inner Diameter:	25mm
Sprocket Material:	SAE 1023 Structural Carbon Steel
Chain Size:	530

Pitch: 530
Teeth: 18; Sprocket Material: Consists of SAE 1023 structural carbon steel; Surface Finish: Sandblasting; Surface Treatment: Electrophoresis
Teeth: 18; Sprocket Material: Consists of SAE 1023 structural carbon steel; Surface Finish: Sandblasting; Surface Treatment: Electrophoresis
Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm

Honda CB750 Four: 1971-1974

Tooth Front Drive Sprocket For Honda

Product Specifications
