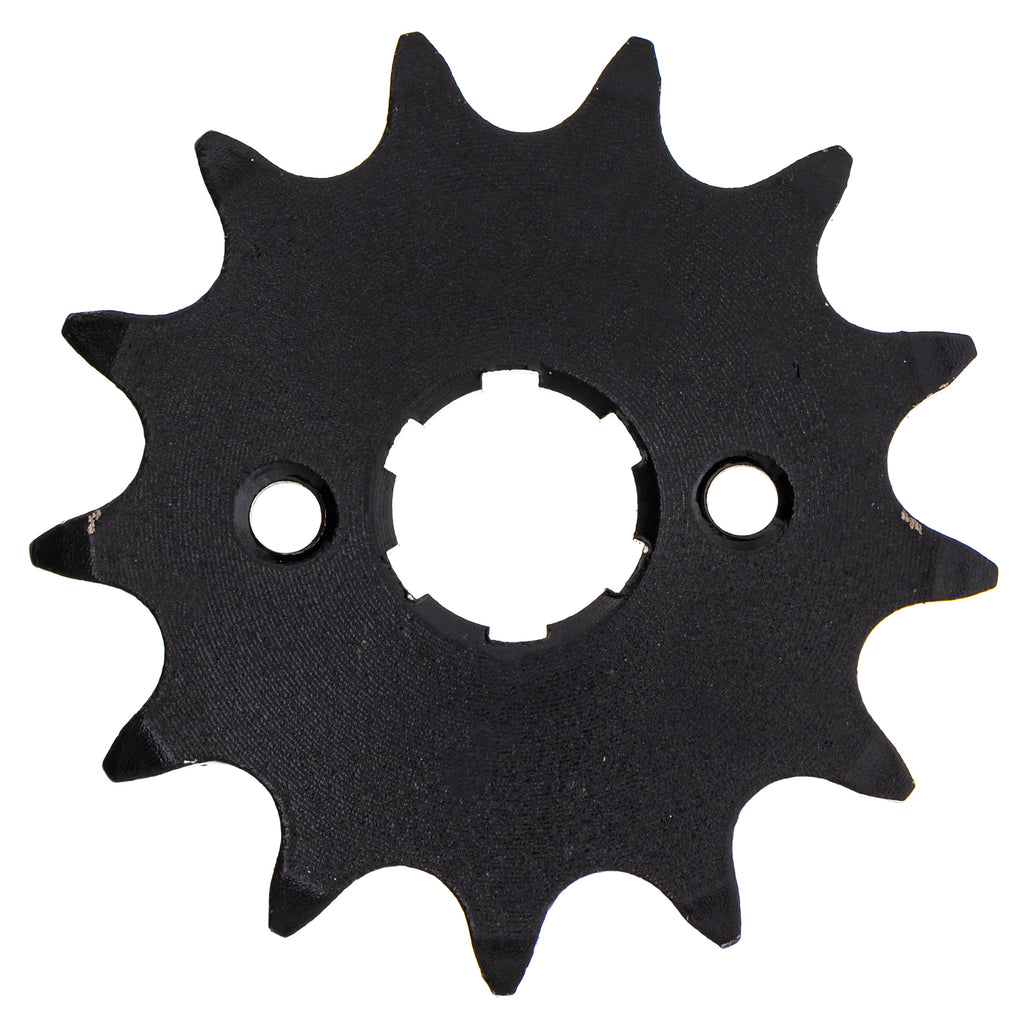

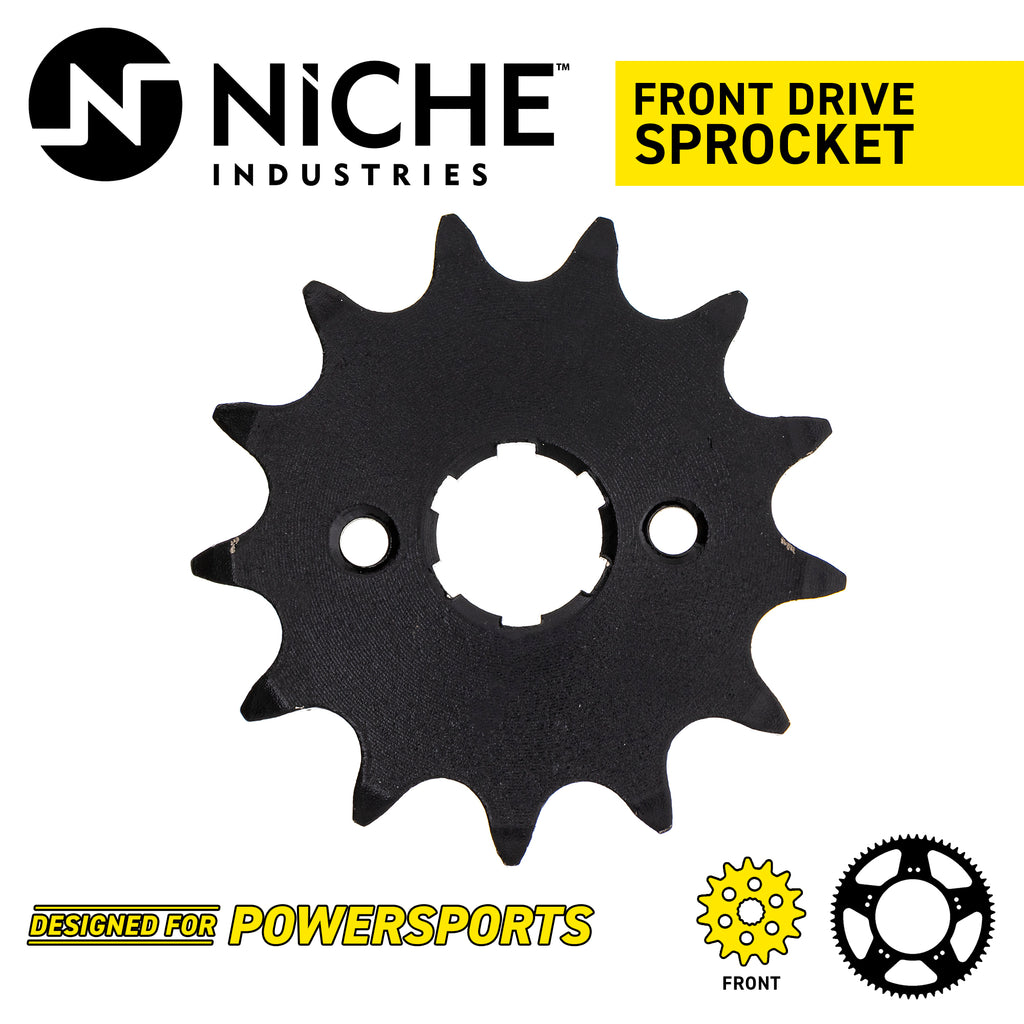

519-CDS2295P Front Drive Sprocket Product Info:
- Pitch 520, Teeth 13; Sprocket Material Consists of SAE 1023 structural carbon steel; Surface Finish Sandblasting; Surface Treatment Electrophoresis
- Hub Inner Diameter 18mm; Hub 2 (ID) 20mm; Distance Between Mounting Holes (ID) 34mm
Direct Replacement for the Following OEM Part Numbers:
23804-KA3-000, 23804-444-000, 23801-KK1-000, 23801-446-770
Compatible with the Following Vehicles:
Honda CR125R: 1982
Honda Elsinore 125: 1979-1981
Honda Reflex 200: 1986-1987
Honda XL200R: 1983-1984
Honda XL250R: 1984-1987
Honda XR200: 1980-2002
Honda XR200R: 1981-2002
Honda XR250R: 1984-1987
