Name: Front Drive Sprocket 519-CDS2278P For Honda 23801-958-000
Brand: NICHE
SKU: 15MIS_C-DSP-0056
Price: 19.95 USD
Availability: InStock

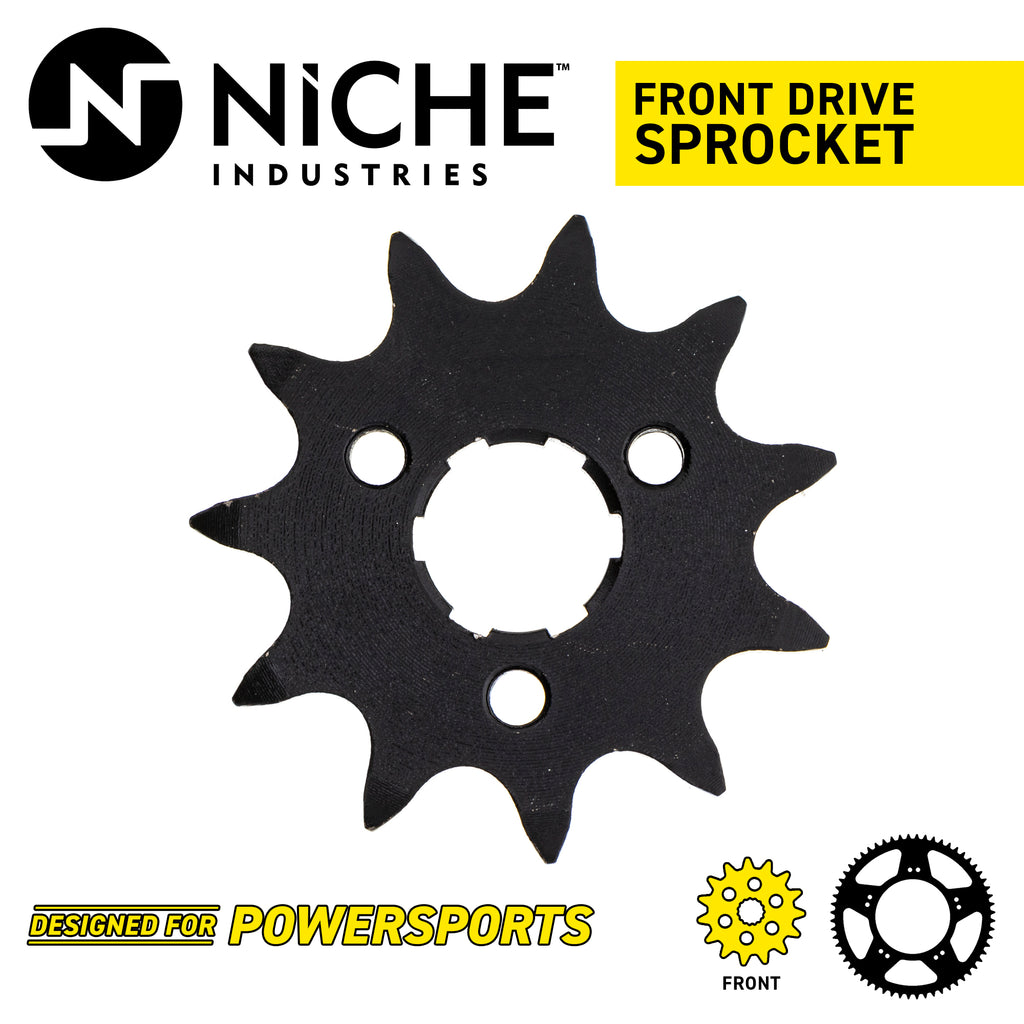

Front Drive Sprocket for JT Sprocket Honda ATC200S ATC200M ATC200 ATC185S 23801-958-000 NICHE 519-CDS2278P

NICHE 519-CDS2278P Front Drive Sprocket for JT Sprocket Honda ATC200S

NICHE Front Drive Sprocket 23801-958-000

Front Drive Sprocket 519-CDS2278P For Honda 23801-958-000

Roll over image to zoom in Click on image to zoom

MPN:	519-CDS2278P
UPC:	803467013626
Inner Diameter:	18mm
Material:	AISI 1023 Steel
Distance Between Mounting Holes:	30mm
Front Sprocket Teeth:	11
Hub Inner Diameter:	18mm
Hub 2 Inner Diameter:	20mm
Chain Size:	520

519-CDS2278P Front Drive Sprocket Product Info:

Pitch: 520, Teeth: 11; Sprocket Material consists of SAE 1023 structural carbon steel
Hub Inner Diameter 18mm; Hub 2 (ID) 20mm; Distance Between Mounting Holes (ID) 30mm

Direct Replacement for the Following OEM Part Numbers:

23801-958-000

Compatibile with the Following Vehicles:

Honda ATC185: 1980-1983
Honda ATC185S: 1981-1983
Honda ATC200: 1981-1986
Honda ATC200M: 1984-1985
Honda ATC200S: 1984-1986
